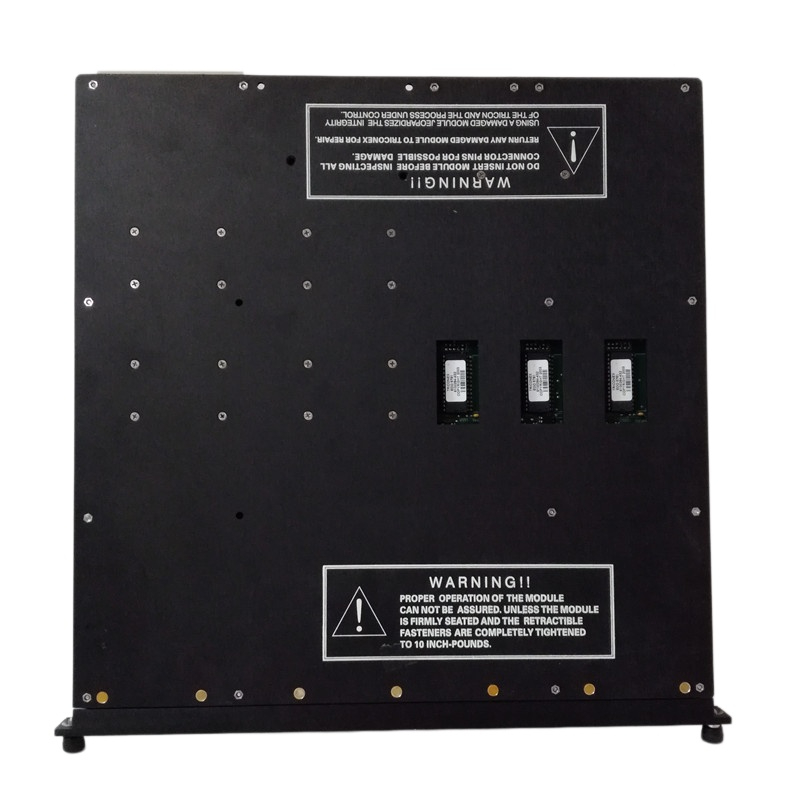

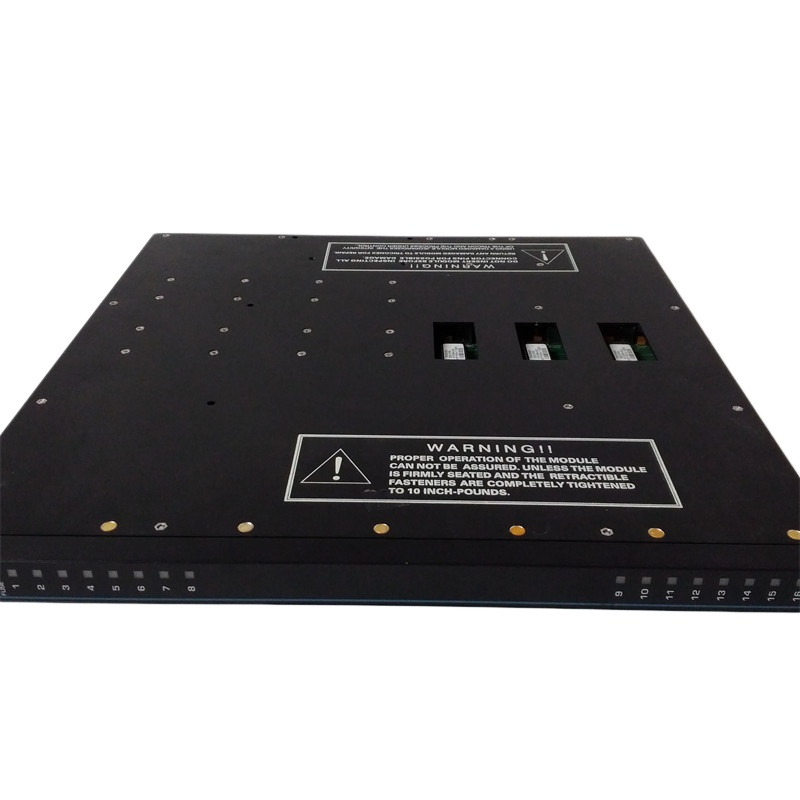

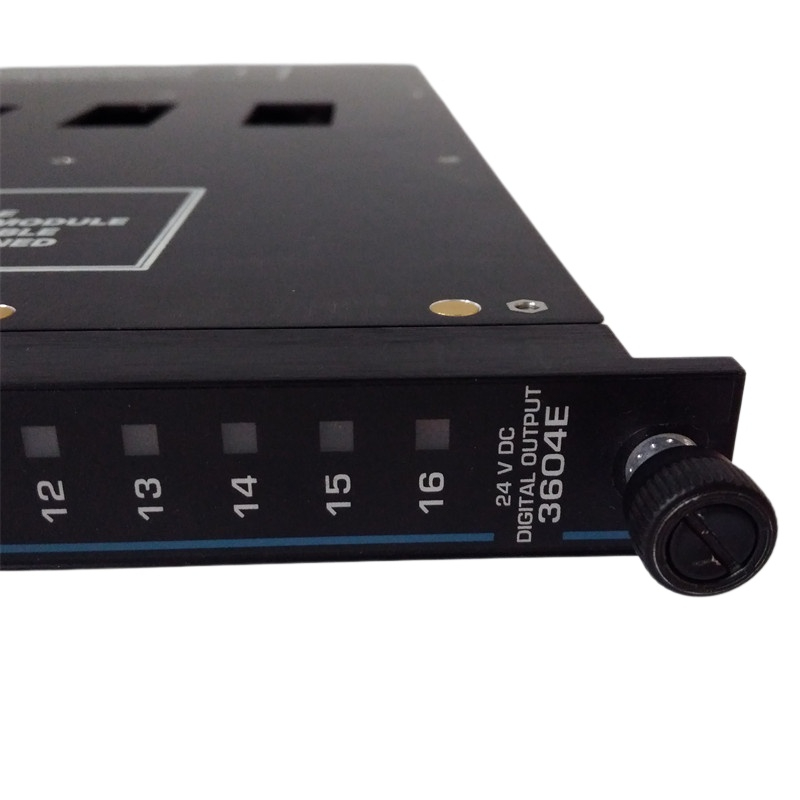

The TRICONEX 3604E is a Triple Modular Redundant (TMR) digital output module used in Triconex Safety Instrumented Systems (SIS).
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
The Triconex 3604E is a high-reliability Triple Modular Redundant (TMR) digital output module designed for use in Triconex safety instrumented systems (SIS). It provides dependable output control for safety-critical industrial processes, ensuring continuous operation and fault tolerance in demanding environments.
This module is widely deployed in oil & gas, petrochemical, power generation, and industrial automation systems, where operational safety and system integrity are essential. With advanced diagnostics, hot-swap capability, and redundant architecture, the 3604E ensures maximum system availability and protection against failures.
Triple Modular Redundancy (TMR) architecture for high fault tolerance
16 independent digital output channels
Designed for 24 VDC field devices
Hot-swappable module for maintenance without shutting down the system
Built-in diagnostics for real-time fault detection
LED status indicators for channel activity and module health
Optically isolated outputs to enhance electrical protection
High reliability for Safety Instrumented Systems (SIS)
| Parameter | Specification |
|---|---|
| Product Model | 3604E |
| Product Type | Digital Output Module |
| System | Triconex Tricon Safety System |
| Output Channels | 16 |
| Rated Voltage | 24 VDC |
| Voltage Range | 22–45 VDC |
| Maximum Output Current | 2 A per channel |
| Isolation Voltage | 1500 VDC |
| Diagnostics | Comprehensive onboard diagnostics |
| Installation | Compatible with Tricon chassis and external termination panels |
The Triconex 3604E digital output module is widely used in industrial safety and automation systems, including:
Emergency Shutdown Systems (ESD)
Fire and Gas Detection Systems (F&G)
Burner Management Systems (BMS)
Turbine Control Systems
Oil & Gas processing facilities
Power generation plants
Chemical and petrochemical industries
The Triconex 3604E offers exceptional reliability and safety performance through its Triple Modular Redundant design, ensuring continuous system operation even in the event of component failures. Its robust diagnostics and hot-swap capability significantly reduce downtime and maintenance costs, making it an ideal choice for mission-critical industrial applications.
