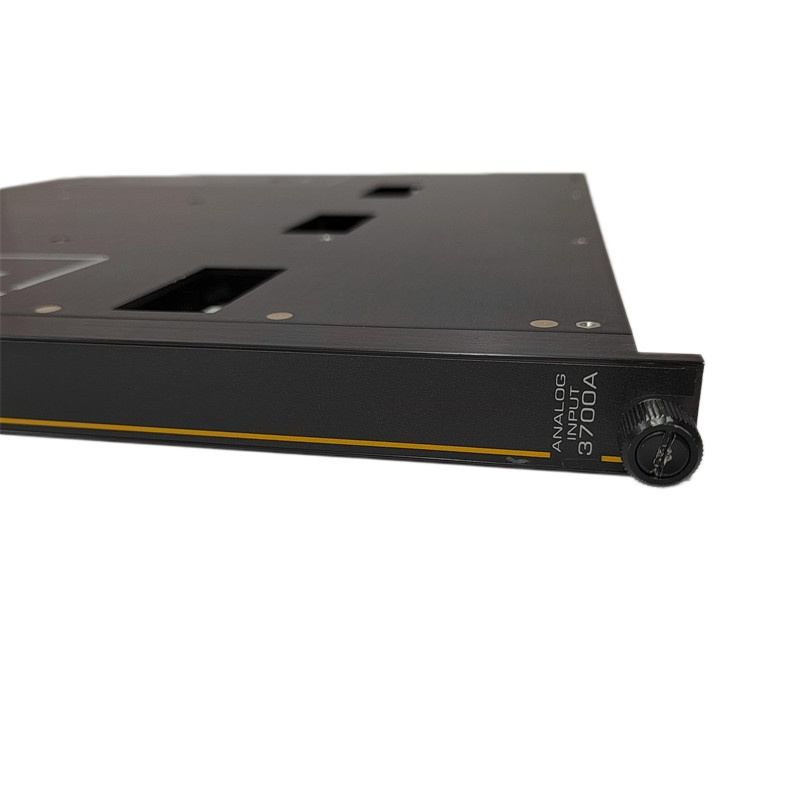

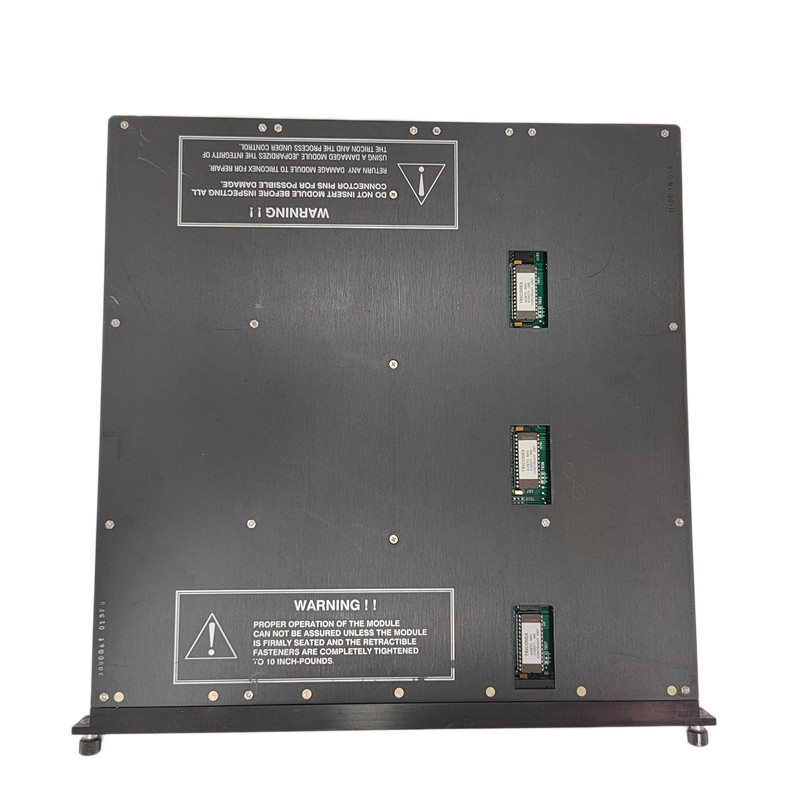

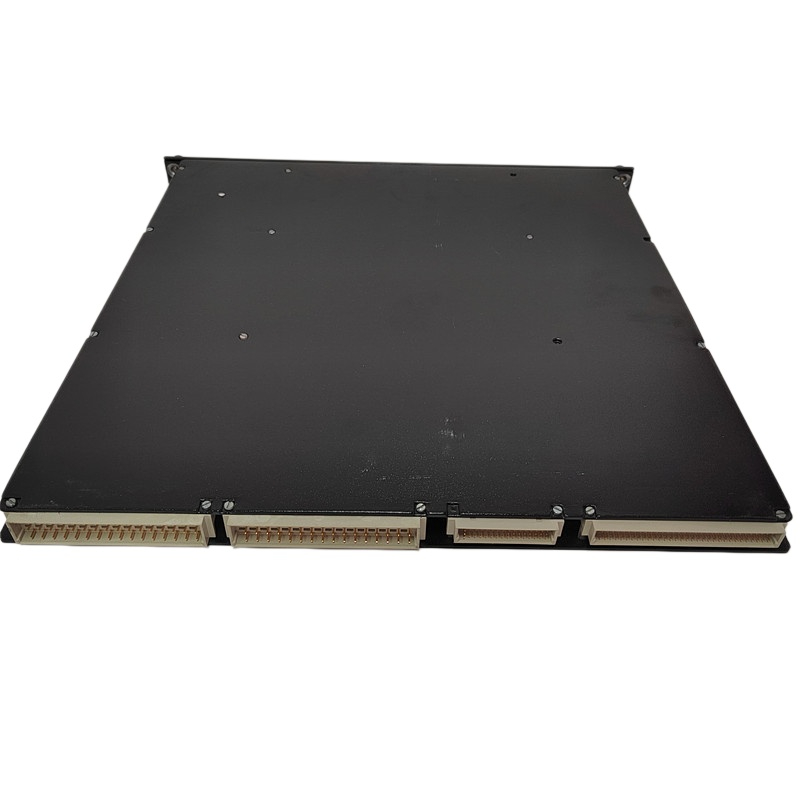

The Triconex 3700A TMR Analog Input Module is a high-reliability input module designed for the Triconex Tricon Safety System.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
The Triconex 3700A TMR Analog Input Module is a high-reliability input module designed for the Triconex Tricon Safety System. Developed by Triconex, now part of Schneider Electric, this module is engineered for critical industrial safety applications that require high availability, fault tolerance, and accurate signal acquisition.
The 3700A module collects analog signals from field instruments such as transmitters, sensors, and monitoring devices, converting them into digital signals for processing by the Tricon controller. With its Triple Modular Redundancy (TMR) architecture, the module ensures continuous and reliable operation even in the event of hardware faults.
Designed for safety-instrumented systems (SIS), the Triconex 3700A is widely used in industries including oil & gas, petrochemical, power generation, and chemical processing, where system reliability and operational safety are essential.
Triple Modular Redundancy (TMR) architecture for maximum fault tolerance
32 differential analog input channels for precise signal acquisition
High measurement accuracy and stability
12-bit resolution for reliable data conversion
Excellent noise immunity and signal integrity
Hot-swappable design for easy maintenance and reduced downtime
Designed for safety-critical industrial environments
| Parameter | Specification |
|---|---|
| Model | Triconex 3700A |
| Module Type | TMR Analog Input Module |
| Input Channels | 32 Differential Inputs |
| Input Range | 0–5 VDC |
| Resolution | 12-bit |
| Accuracy | <0.15% Full Scale |
| Input Update Time | Approx. 55 ms |
| Input Resistance | ≥30 MΩ |
| Common Mode Range | –12 V to +12 V |
| Overvoltage Protection | Up to 150 VDC / 115 VAC continuous |
The Triconex 3700A module is commonly deployed in Safety Instrumented Systems (SIS) for monitoring and control in critical industrial processes, including:
Oil and gas production platforms
Petrochemical and refinery plants
Power generation facilities
LNG processing terminals
Chemical manufacturing plants
Industrial automation safety systems
The Triconex 3700A TMR Analog Input Module provides exceptional reliability and diagnostic capability, making it ideal for mission-critical systems where continuous operation and safety compliance are required. Its TMR design ensures that the system can tolerate faults without interrupting process monitoring or control.
