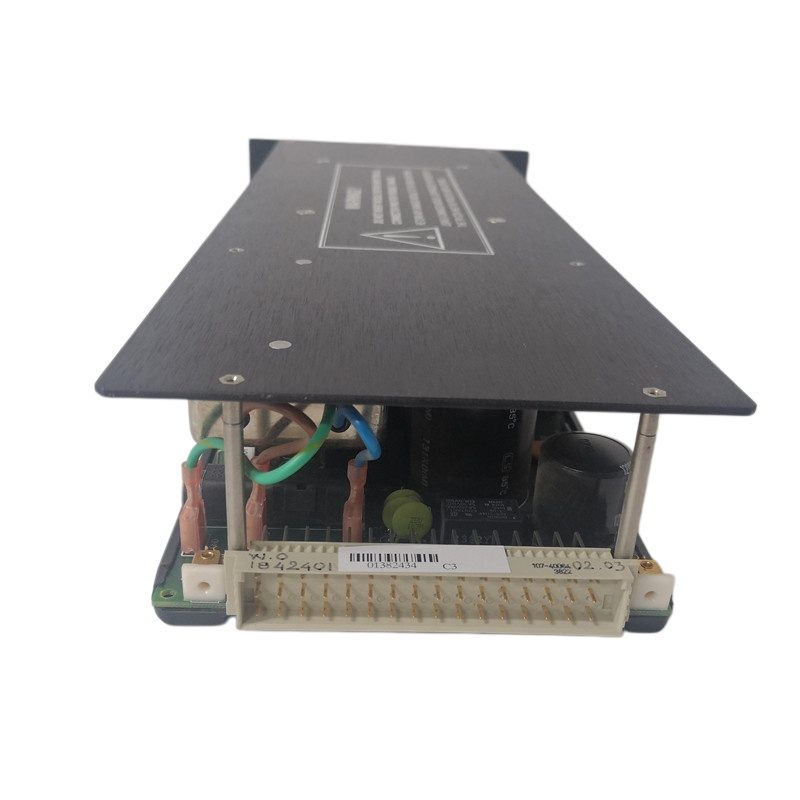

TRICONEX 8312 Safety Instrumented System

TRICONEX 8312 is a high-performance Safety Instrumented System (SIS) controller or module based on a Triple Modular Redundancy (TMR) architecture.

1. Key Features

Triple Modular Redundancy (TMR):
The system integrates three independent and parallel control channels. Each channel can independently execute the full set of control functions, significantly improving system reliability and fault tolerance.

High Safety Level:
Complies with SIL 4 / IEC 61508 standards, making it suitable for critical industries that require extremely high safety and reliability, such as oil, power generation, chemical processing, and pharmaceuticals.

Modular Design:
Supports various I/O modules, including analog, digital, and communication modules, allowing flexible system expansion and simplified maintenance.

2. Technical Specifications

Processor:
32-bit PowerPC 604e or a similar high-performance RISC processor.

Memory:
RAM: 8 MB to 128 MB
Flash: 64 MB to 4 GB

Communication Interfaces:
Supports multiple industrial communication protocols, including Ethernet, PROFIBUS DP, CANopen, RS-232/422/485, and USB.

I/O Capacity:
Supports up to 384 digital I/O points and 64 analog I/O points, with certain configurations expandable to 2048 points.

Environmental Adaptability:
Wide operating temperature range (-40°C to 85°C) with protection ratings from IP66 to IP67.

3. Application Areas

Widely used in industrial process control systems requiring high reliability and safety, including:

• Petrochemical industry

• Natural gas processing

• Power generation systems

• Rail transit

• Pharmaceutical and food & beverage industries

4. Key Advantages

High Reliability:
The system continues operating even if a single channel fails.

Easy Maintenance:
The modular architecture simplifies fault isolation and module replacement.

Strong Compatibility:
Supports multiple industrial communication protocols, making system integration easier.
