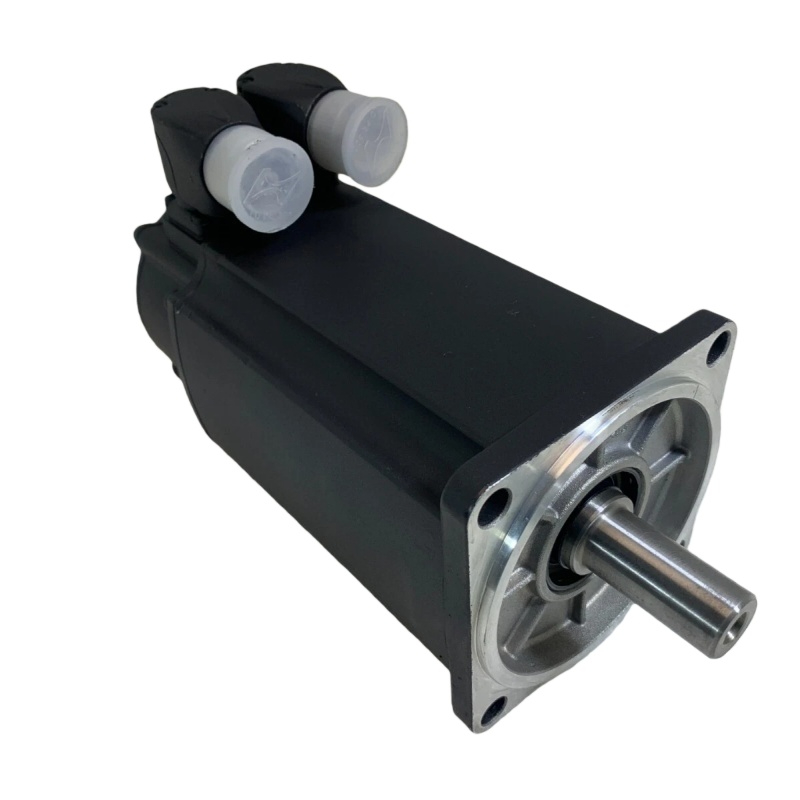

REXROTH MSK050C-0600-NN-S1-UP0-NNNN is a synchronous servo motor from the Indramat series by Bosch Rexroth. It is widely used in high-precision applications such as CNC machine tools and automated production lines.
1. Key Specifications
Dimensions and Size
-
The “050C” in the model number indicates a 50 mm flange diameter.
-
The length code “C” represents the standard motor length.
Speed
-
The rated speed code “0600” corresponds to a rated speed of 6000 rpm.
Torque
-
Continuous torque: approx. 5.5 Nm
-
Peak torque: approx. 15 Nm
Electrical Characteristics
-
Maximum current: 24.8 A
-
Rated voltage: typically 400 V (subject to confirmation according to the specific purchase order)
-
Rated power: approx. 2.5 kW
Weight
-
Approx. 5.4 kg
2. Design and Features
No Brake
-
The “NN” designation indicates that the motor is not equipped with a holding brake.
Encoder
-
Standard configuration includes a single-turn Hiperface optical encoder.
-
“S1” indicates the standard encoder configuration, supporting basic closed-loop control.
Bearings and Cooling
-
Self-cooling design.
-
Equipped internally with needle roller bearings.
Additional Features
-
“UP0” typically indicates no additional accessories (such as flange-mounted components).
3. Typical Applications
This motor is suitable for applications requiring compact design and high torque output, such as:
-
CNC machine tools: lathes, milling machines, etc.
-
Automated production lines: handling robots, packaging machinery, etc.
-
Other high-precision drive systems.
