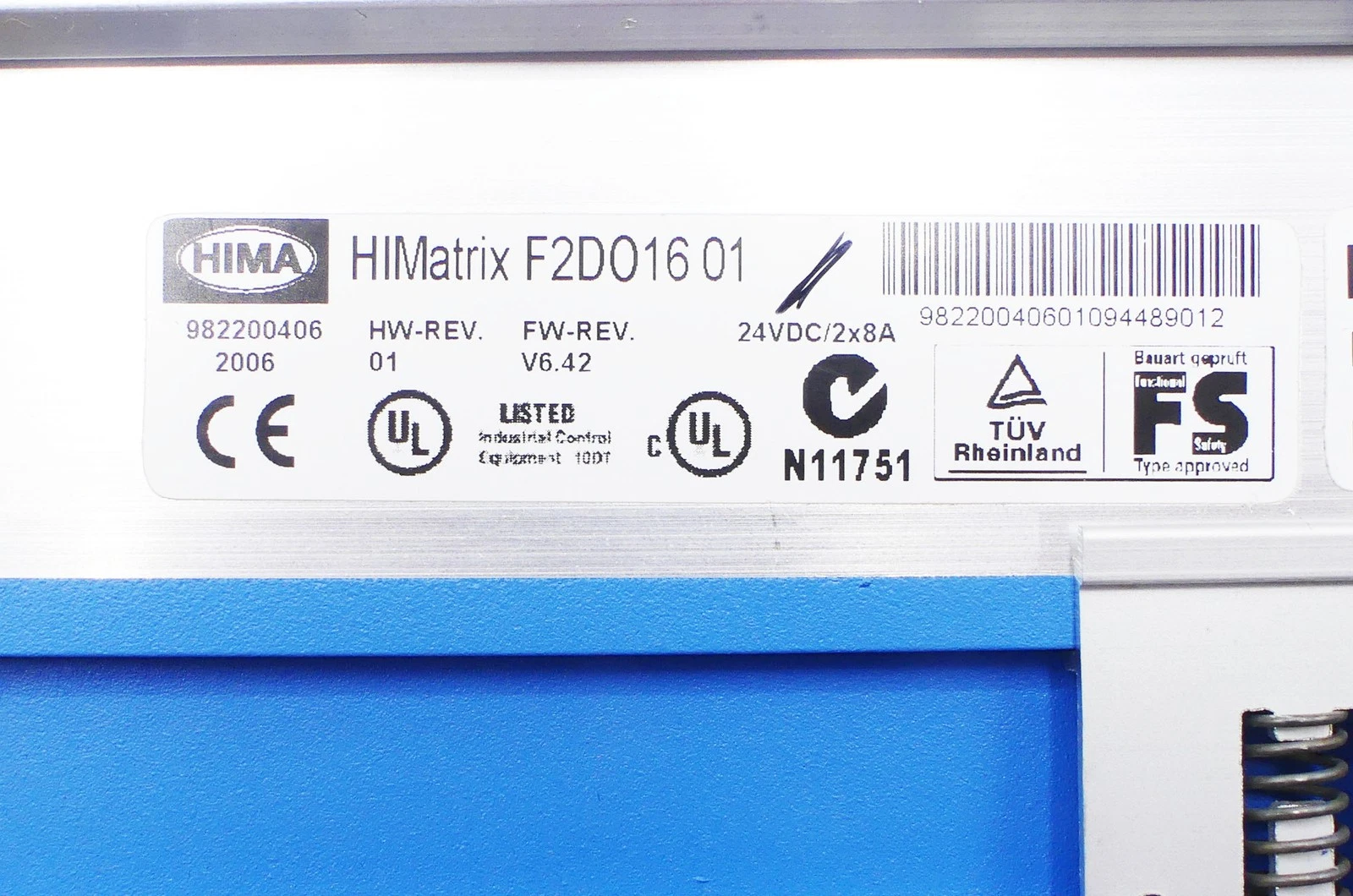

HIMA F2DO1601
HIMA F2DO1601 Safety Digital Output Module – Overview
The HIMA F2DO1601 is a safety-related remote I/O module designed for critical industrial automation systems. It belongs to the HIMatrix family and provides 16 digital outputs for high-integrity safety applications.
Key Features
- 16 Digital Outputs
Provides reliable switching signals for safety-critical field devices.
- High Safety Certification
TÜV-certified and compliant with:
- SIL 3 (IEC 61508 / IEC 61511 / IEC 62061)
- Category 4 / Performance Level e (EN ISO 13849-1)
- Safe Communication
Connects to HIMax or HIMatrix controllers via SafeEthernet.
- Robust Industrial Design
Compact metal housing suitable for harsh environments, including Ex-zone 2 installations.
- LED Status Indication
Each output channel has LED indicators for quick diagnostics.
Technical Specifications
- Model: F2DO1601
- Output Type: Digital
- Number of Outputs: 16
- Operating Voltage: 24 VDC
- Max Load:
- Up to 2 A per channel (≤60°C)
- Reduced load at higher temperatures
- Operating Temperature:
- Protection Rating: IP20
- Mounting: DIN rail / cabinet installation
- Weight: Approx. 0.8–2 kg (varies by configuration)
Functions & Advantages
- Safety-critical control of actuators and shutdown systems
- High reliability with fault-tolerant architecture
- Flexible expansion of I/O systems
- Easy integration into HIMA safety systems
- Advanced diagnostics for maintenance and troubleshooting
Typical Applications
The F2DO1601 is widely used in industries requiring high safety integrity, including:
- Oil & Gas / Petrochemical
- Power Generation
- Chemical Processing
- Steel & Heavy Industry
- Transportation Systems
It is especially suitable for Emergency Shutdown Systems (ESD) and Safety Instrumented Systems (SIS).
Summary
The HIMA F2DO1601 is a high-performance, SIL3-certified digital output module designed for demanding safety applications. With robust design, flexible communication, and strong diagnostic capabilities, it is an ideal choice for expanding safety I/O in modern industrial control systems.
