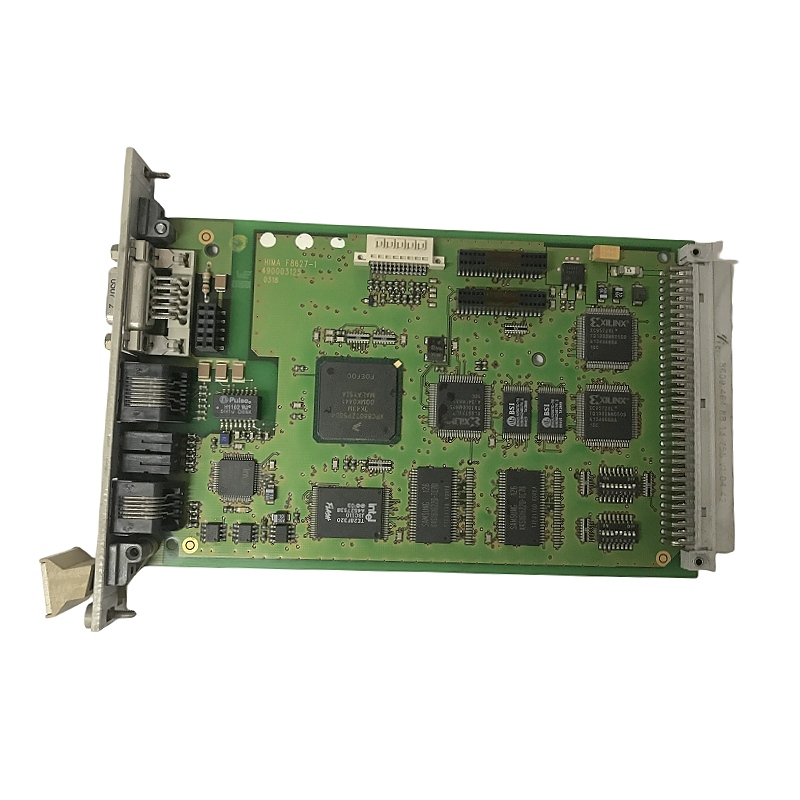

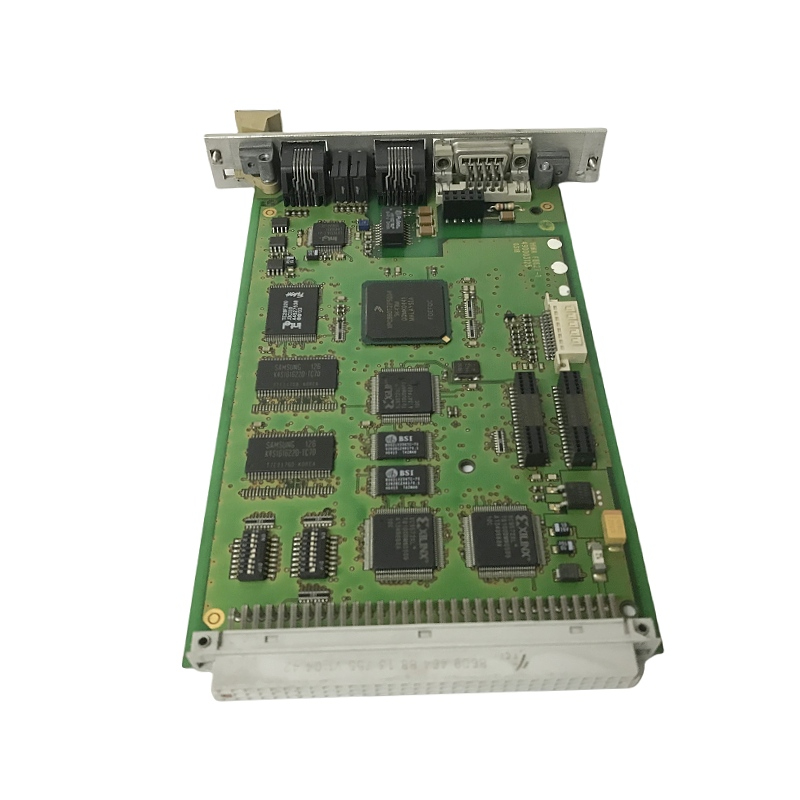

HIMA F8627 I/O module

HIMA F8627 is a high-performance communication and I/O module designed by HIMA specifically for Safety Instrumented Systems (SIS). It is widely used for safety control and monitoring in high-risk industries such as oil & gas and chemical processing.

1. Core Functions

Safety Communication:
Supports Fast Ethernet (10/100 Mbps) and HIMA proprietary safety communication protocols, enabling secure data transmission between racks or remote stations.
Safety I/O:
Provides 32 digital input channels and is typically used in conjunction with HIMA F8620 series digital output modules to form complete safety loops.
Safety Integrity:
Certified to SIL 3, suitable for critical safety applications in compliance with IEC 61508 / IEC 61511 requirements.

2. Key Technical Specifications

Parameter	Specification	Notes
Communication Interface	10/100 Mbps Fast Ethernet	Supports redundant Ethernet configurations (1oo2 or 2oo3 voting logic)
Operating Temperature	–40°C to +70°C	Industrial wide-temperature range for harsh environments
Dimensions	175 mm × 100 mm × 25 mm	Standard 19-inch rack format
Power Supply	24 V DC	Supplied via the HIMA system
Safety Level	SIL 3	High integrity level for critical safety interlocks
Additional Features	Advanced diagnostics, hot-swap support	Easy maintenance and real-time health monitoring

3. Typical Applications

Safety Interlocking:
Used to monitor safety sensors (such as leak detection devices) and trigger interlock actions (e.g., automatic valve shutdown).
Process Control:
Provides redundant digital input signals at critical process points to ensure data reliability and integrity.
