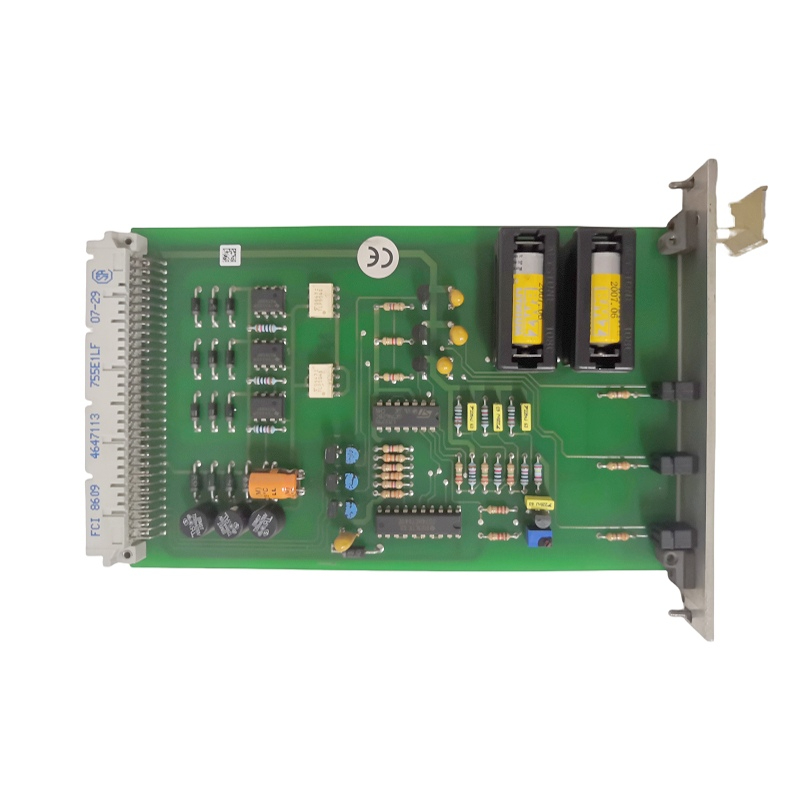

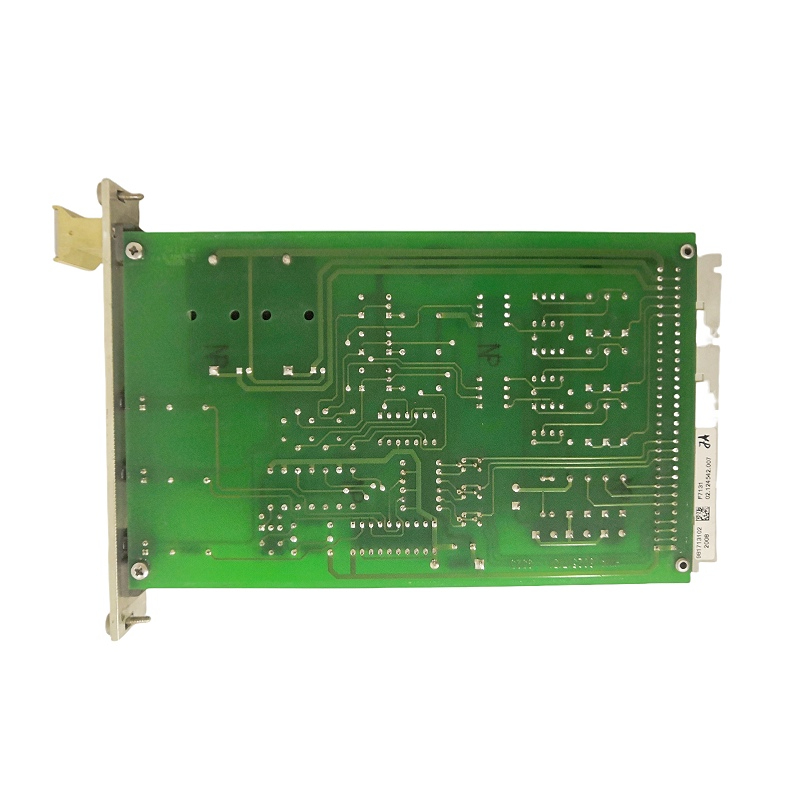

HIMA F7131 Power Supply Monitoring Module

HIMA F7131 (Part No. 981713102) is a high-reliability Power Supply Monitoring Module specifically designed for the HIMA PES H51q system by HIMA. Using dual diagnostic mechanisms and a buffer battery, it continuously monitors power supply voltages in real time to ensure uninterrupted operation of industrial safety instrumented systems.

1. Product Definition and Core Functions

HIMA F7131 is neither a traditional I/O (input/output) module nor a central processing unit (CPU). Instead, it serves as a power health guardian, with the following key responsibilities:

Voltage Monitoring: Continuously monitors system supply voltages (typically 5 V and 24 V), detecting voltage fluctuations, phase loss, or power failures.
Dual Diagnosis: Incorporates both hardware- and software-level diagnostic mechanisms to accurately identify faults and report them promptly.
Buffer Battery Backup: Equipped with a CR-1/2 AA-CB buffer battery (or equivalent). Even if the external power supply is interrupted, the module can sustain its own operation for a certain period, preventing monitoring blind spots.
Communication and Alarming: Features an RS-485 communication interface for transmitting monitoring data to a host system or safety PLC, and supports triggering local alarm outputs.

2. Technical Specifications and Parameters

Parameter	Specification
Power monitoring scope	Monitors three 5 V system supplies (PS1–PS3) and provides 24 V power demand
Input voltage range	85–265 VDC (wide range for industrial environments)
Output voltage	24–28 VDC (may vary slightly by sub-model)
Battery voltage	2.8–3.6 VDC (for CR-1/2 AA-CB buffer battery)
Communication interface	RS-485 (standard industrial communication)
Physical dimensions	Typical sizes: approx. 90 × 60 × 25 mm or 140 × 95 × 82 mm
Environmental adaptability	Wide operating temperature range (-40 °C to +85 °C), strong EMI resistance

3. Application Scenarios

This module is commonly deployed in industrial safety systems with extremely high requirements for power stability, including:

Oil & Gas / Petrochemical: Monitoring the power status of reactors, pump stations, or turbine units to prevent safety valve failures caused by power fluctuations.
Power Generation & Energy: Applied in turbine-generator sets and fuel gas supply systems (e.g., LNG) to ensure reliable response of critical control valves.
Medical & Building Automation: Used in medical equipment or building automation systems to monitor main power supplies and ensure seamless switching to emergency power sources.
