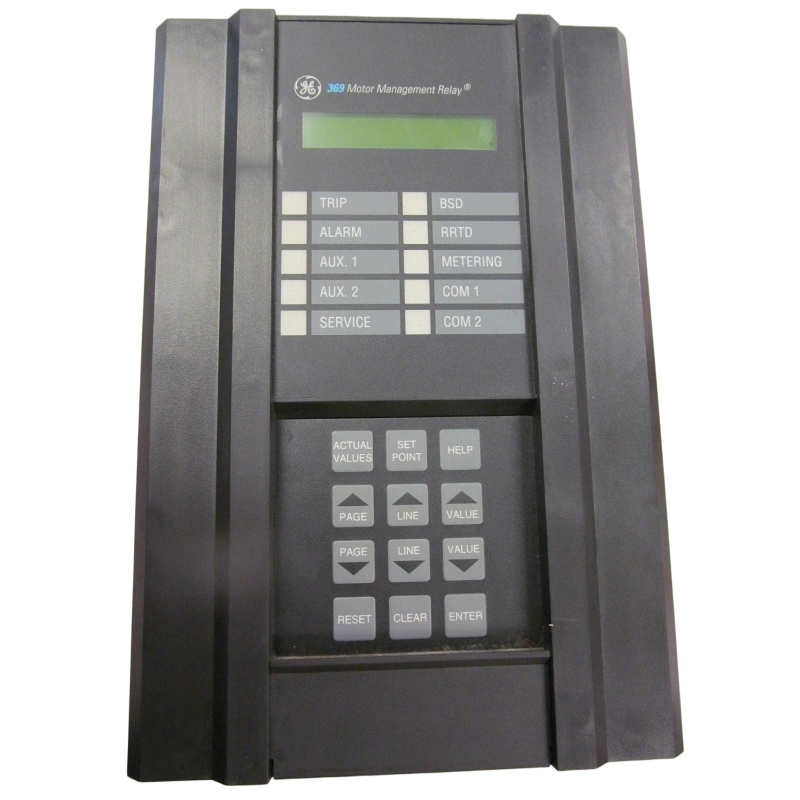

GE 369 369-HI-0-0 protection relay

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

GE 369 369-HI-0-0

1. Product Overview

The GE Multilin 369-HI-0-0 is a digital motor management and protection relay designed for the comprehensive protection, monitoring, and control of three-phase AC motors. It belongs to the GE Multilin 369 Motor Management Relay family and uses microprocessor-based protection technology.

The relay is designed to detect abnormal motor operating conditions and provide protection against overload, phase imbalance, ground faults, locked rotor conditions, and other potentially damaging faults.

2. Technical Parameters

Parameter	Specification
Manufacturer	GE Multilin
Product Series	369 Motor Management Relay
Model	369-HI-0-0
Product Type	Motor Management / Protection Relay
Control Power	High-voltage control power version
Control Power Range	50–300 VDC / 60–265 VAC
Frequency	50/60 Hz
Current Inputs	CT-based motor current measurement
Protection Technology	Microprocessor-based digital protection
Display	LCD display
Communication	Serial communication options depending on configuration
Installation	Panel-mounted
Programming	GE Multilin 369 configuration software

3. Main Protection Functions

The GE 369 provides comprehensive motor protection functions, including:

• Thermal overload protection
• Overcurrent protection
• Ground-fault protection
• Phase loss protection
• Current unbalance protection
• Locked-rotor / mechanical jam protection
• Starting-time protection
• Motor restart protection
• Abnormal load detection
• Motor operating condition monitoring

These functions allow the relay to protect motors against both electrical faults and abnormal mechanical operating conditions.

4. Structural Composition

The GE 369 relay generally consists of several major functional sections:

Microprocessor Control Unit

Processes sampled electrical signals and executes motor protection algorithms.

Current Measurement System

Receives current signals from CTs and calculates motor current, imbalance, overload, and fault conditions.

Protection and Output Circuits

Provides configurable relay outputs for trip, alarm, and control functions.

Human-Machine Interface

The front panel incorporates an LCD display, LEDs, and pushbuttons for viewing measurements, alarms, status information, and configuration parameters.

Communication Interface

Provides serial communication for integration with supervisory control systems and for relay configuration and data retrieval.

5. Product Features

Comprehensive Motor Protection

Multiple protection functions are integrated into a single relay, reducing the need for separate protection devices.

Motor Monitoring

The relay can monitor important motor operating parameters and provide useful information for maintenance and troubleshooting.

Event and Fault Recording

Operating events and fault information can be recorded to assist with post-fault analysis.

Flexible Configuration

Protection settings, trip levels, alarm thresholds, and control logic can be configured according to the motor and application requirements.

Industrial Reliability

The 369 series is designed for industrial motor protection applications and can be used in demanding electrical and process environments.

6. Application Fields

The GE 369-HI-0-0 is suitable for motor-driven equipment such as:

• Pumps
• Fans
• Compressors
• Conveyors
• Industrial process motors
• Mining equipment
• Power plant auxiliary motors
• Oil and gas equipment
• Water and wastewater systems
• General industrial motor control systems

7. Advantages

The main advantages of the GE 369-HI-0-0 include:

1. Integrated motor protection in a single device.
2. Digital measurement and protection for improved monitoring accuracy.
3. Multiple protection functions for electrical and mechanical motor faults.
4. Event and diagnostic capabilities that facilitate troubleshooting.
5. Flexible configuration for different motor applications.
6. Industrial-grade design suitable for continuous motor protection.

8. Conclusion

The GE Multilin 369-HI-0-0 is a comprehensive digital motor management relay intended for protecting and monitoring three-phase AC motors. Its combination of thermal, overcurrent, ground-fault, phase-loss, imbalance, locked-rotor, and motor-starting protection makes it suitable for a wide range of industrial motor applications.
