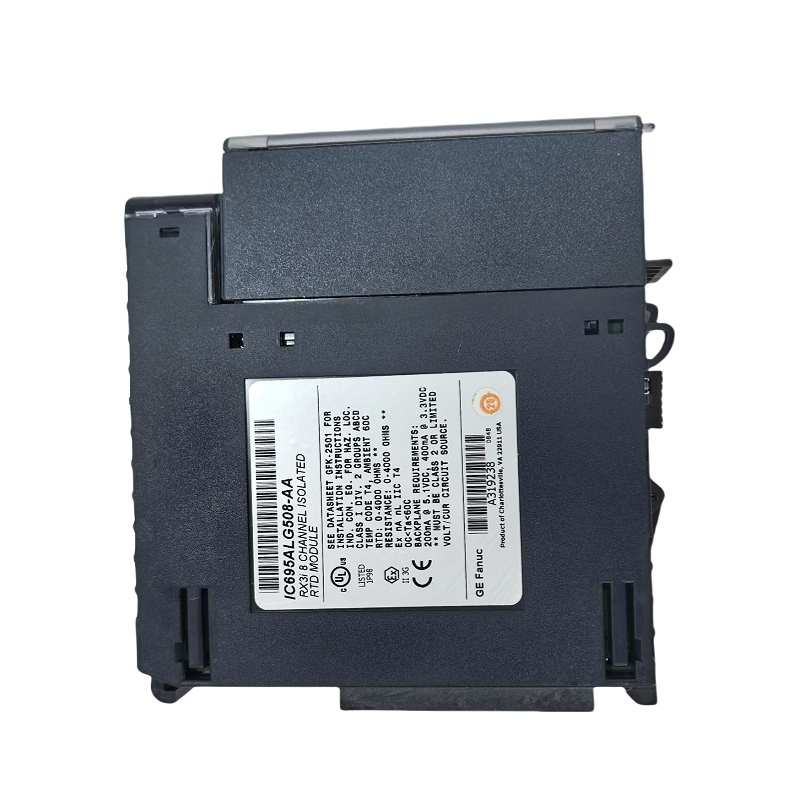

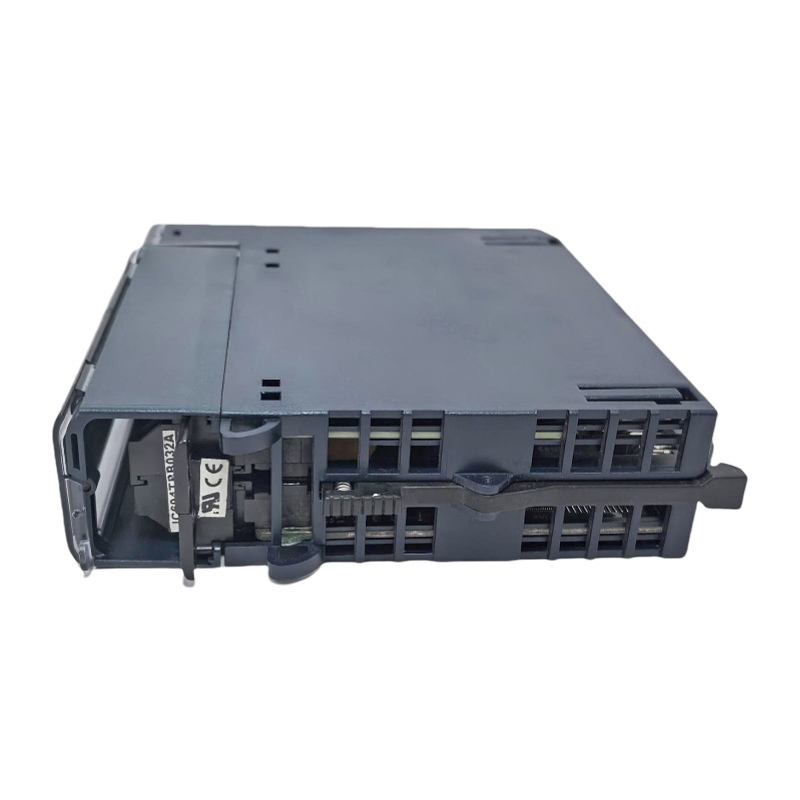

The GE IC695ALG508-AA is an 8-channel RTD and resistance input module developed for the PACSystems RX3i PLC platform.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
The GE IC695ALG508-AA is an 8-channel RTD and resistance input module developed for the PACSystems RX3i PLC platform. Designed for high-accuracy temperature monitoring, this module converts signals from RTD sensors into precise digital values for industrial automation and process control systems.
Built for reliability and flexibility, the IC695ALG508-AA is widely used in demanding industries such as power generation, oil & gas, chemical processing, and manufacturing.
The IC695ALG508-AA supports a wide range of RTD sensors and resistance inputs, enabling accurate temperature monitoring across harsh industrial environments.
Main advantages include:
The module provides 8 fully isolated differential channels, allowing simultaneous measurement from multiple RTD sensors while minimizing signal interference.
Supported wiring types:
Isolation between channels ensures stable and reliable data acquisition in electrically noisy environments.
The IC695ALG508-AA works with multiple RTD and resistance sensor types:
Supported RTD types:
Temperature measurement range:
This flexibility makes the module suitable for both low-temperature and high-temperature industrial processes.
The module supports multiple data output formats for seamless PLC integration:
This allows engineers to tailor configuration based on control system requirements.
Built-in diagnostic functions improve system reliability and reduce downtime:
These features help maintenance teams quickly identify and resolve sensor or wiring issues.
The IC695ALG508-AA supports hot insertion and removal, allowing replacement without shutting down the PLC system.
This reduces downtime and improves system availability in critical operations.
| Specification | Details |
|---|---|
| Product Type | RTD / Resistance Input Module |
| Platform | PACSystems RX3i |
| Channels | 8 isolated differential inputs |
| RTD Wiring | 2-wire, 3-wire, 4-wire |
| Resistance Range | 250 Ω – 4 kΩ |
| Data Resolution | Up to 12-bit (configurable) |
| Filtering | 2.3 – 28 Hz programmable |
| Operating Temperature | –40°C to +70°C |
| Installation | RX3i Universal Backplane |
| Certifications | CE, UL, CSA, ATEX Zone 2 |
The IC695ALG508-AA is ideal for industries requiring accurate and reliable temperature monitoring:
Reliability – Designed for harsh industrial environments
Accuracy – High-precision RTD measurement capability
Flexibility – Supports multiple RTD types and wiring methods
Maintainability – Hot-swap design reduces downtime
Diagnostics – Built-in health monitoring and fault detection
The GE IC695ALG508-AA RTD Input Module is a robust and highly accurate solution for temperature monitoring within PACSystems RX3i control systems. With 8 isolated channels, advanced diagnostics, and flexible configuration options, it is an ideal choice for critical industrial automation and process control applications.
