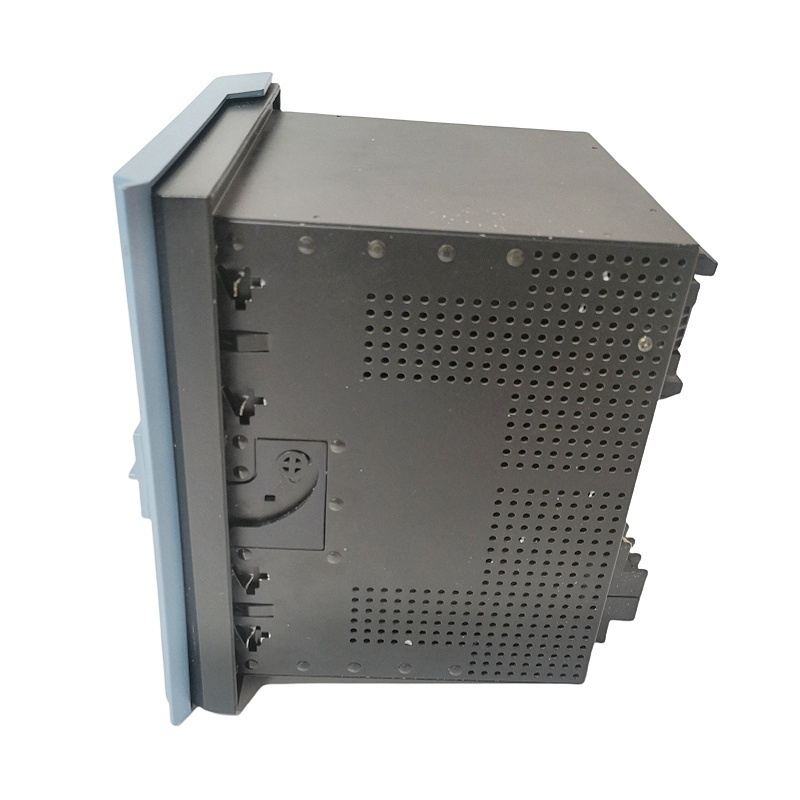

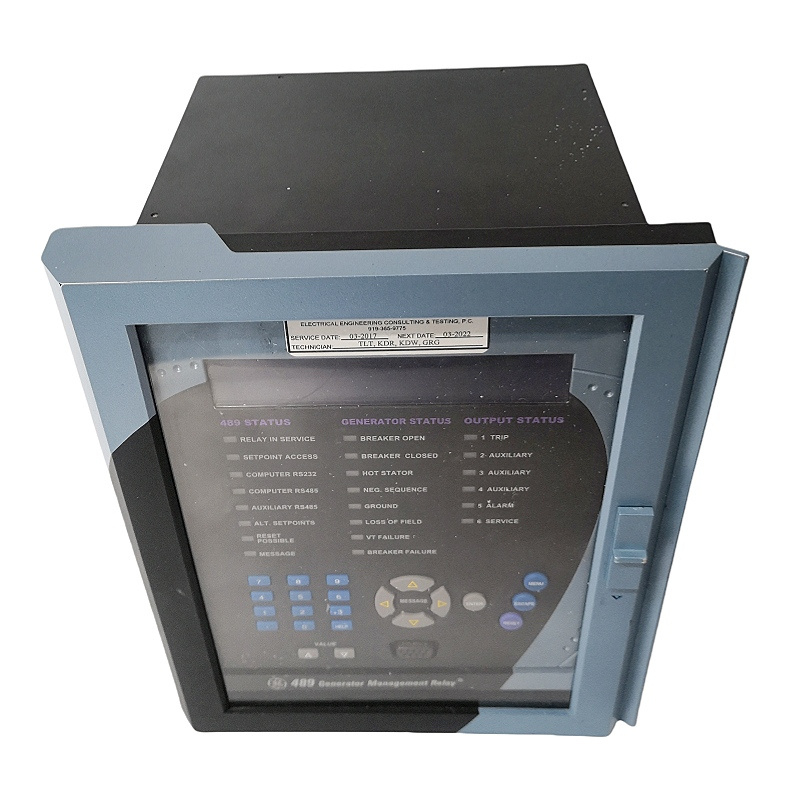

GE SR489-P5-H1-A20 Protection Relay

GE SR489-P5-H1-A20 is a Generator Management and Protection Relay produced by General Electric under the GE Multilin 489 Series. It is designed to provide comprehensive protection, monitoring, and control for generator systems.

1. Product Overview

• Model: SR489-P5-H1-A20

• Manufacturer: General Electric (Multilin)

• Product Type: Generator Protection Relay

• Series: GE Multilin 489 Series

• Main Function: Generator protection, monitoring, and control

This relay is typically used to protect and manage synchronous or induction generators up to approximately 50 MVA, and is widely applied in power plants, petrochemical facilities, mining operations, and large industrial power systems.

2. Main Functions

Protection Functions

• Overcurrent protection (50/51)

• Under-voltage / Over-voltage protection (27/59)

• Frequency protection (81O / 81U)

• Negative sequence current protection (46)

• Loss of excitation protection (40)

• Stator differential protection (87G)

• Ground fault protection (64G)

• Reverse power protection (32)

Monitoring and Management

• Real-time generator status monitoring

• Fault and event recording

• Waveform capture and disturbance analysis

• Remote monitoring and configuration

3. Key Technical Specifications

• Power Supply: 48–300 V DC or 85–265 V AC

• Frequency Range: 40–70 Hz

• Current Inputs: 6 channels (1 A / 5 A CT)

• Voltage Inputs: 4 channels

• Analog Output: 4–20 mA

• Digital I/O: Approximately 24 programmable inputs/outputs

• Operating Temperature: −40 °C to +85 °C

Communication Protocols

• Modbus TCP

• IEC 61850

• DNP3

• IEC 60870-5-104

4. Communication and System Integration

The relay supports multiple communication interfaces, including:

• RS-485

• Ethernet

• Integration with SCADA and DCS systems

These capabilities enable:

• Remote parameter configuration

• Real-time operational data transmission

• Fault alarms and remote maintenance

✅ Summary

The GE SR489-P5-H1-A20 generator management relay provides comprehensive generator protection, monitoring, and communication capabilities. It is widely used in power generation facilities and industrial power systems to ensure safe, stable, and reliable generator operation.
