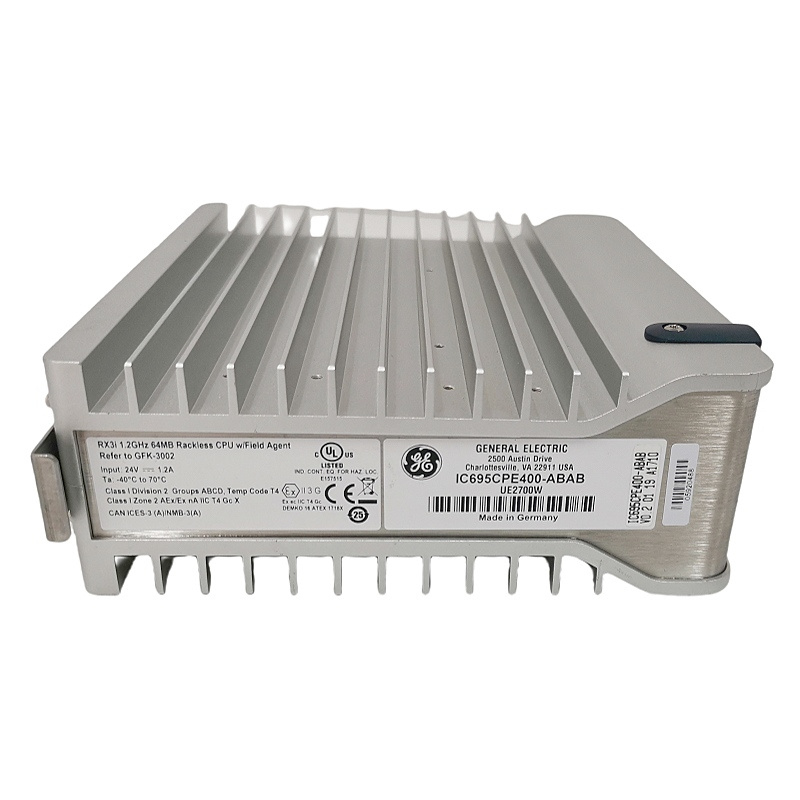

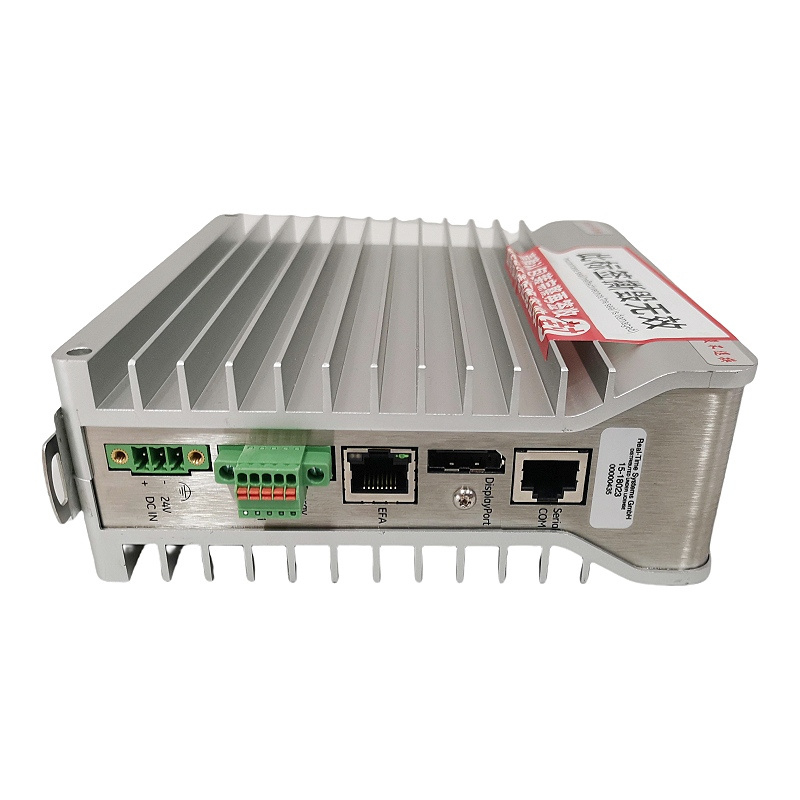

GE IC695CPE400-ABAB CPU module

The GE IC695CPE400-ABAB is a backplane-free CPU module in the PACSystems RX3i series from General Electric (GE). It is widely used as a core controller in industrial automation systems.

Core Technical Specifications

Processor:
Equipped with a 1.2 GHz quad-core AMD/Intel G-series processor (some sources indicate a 1 GHz dual-core Intel Celeron M), delivering powerful computing performance suitable for high-speed machine control and complex algorithm processing.

Memory & Storage:

• 512 MB DDR2/DDR3 RAM

• 512 MB Flash memory for user programs, configuration parameters, and system firmware storage

Display & Interfaces:

• Built-in OLED screen for displaying control status and diagnostic/error information

• Communication interfaces:

  • 5 integrated Gigabit Ethernet ports

  • RS-232/485 serial communication support

  • Compatible with multiple industrial network protocols

Power Supply:

• Input voltage range: 18 VDC – 30 VDC (24 VDC typical)

• Maximum power consumption: approximately 20 W

I/O Expansion Capability:

• Supports up to 512 local I/O modules

• Maximum capacity of 32,000 digital I/O points and 4,000 analog I/O points

Application Areas

This module is widely used in industrial environments requiring high reliability and high-speed data processing, including:

• Manufacturing: Automated assembly lines, robotic control systems

• Process Industries: Chemical, oil & gas, pharmaceutical, food & beverage process control

• Infrastructure: Power systems, wastewater treatment, water management, and Energy Management Systems (EMS)
