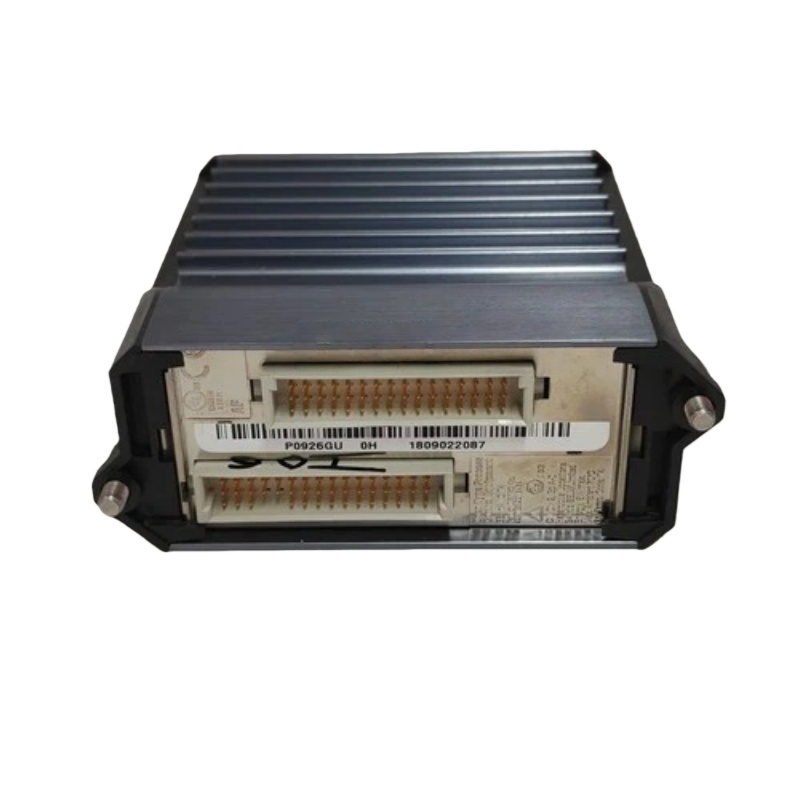

The Foxboro FBM230 P0926GU is a versatile and robust communication module that enhances system integration and data exchange in industrial environments.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
Field Device System Integrator / Serial Communication Module

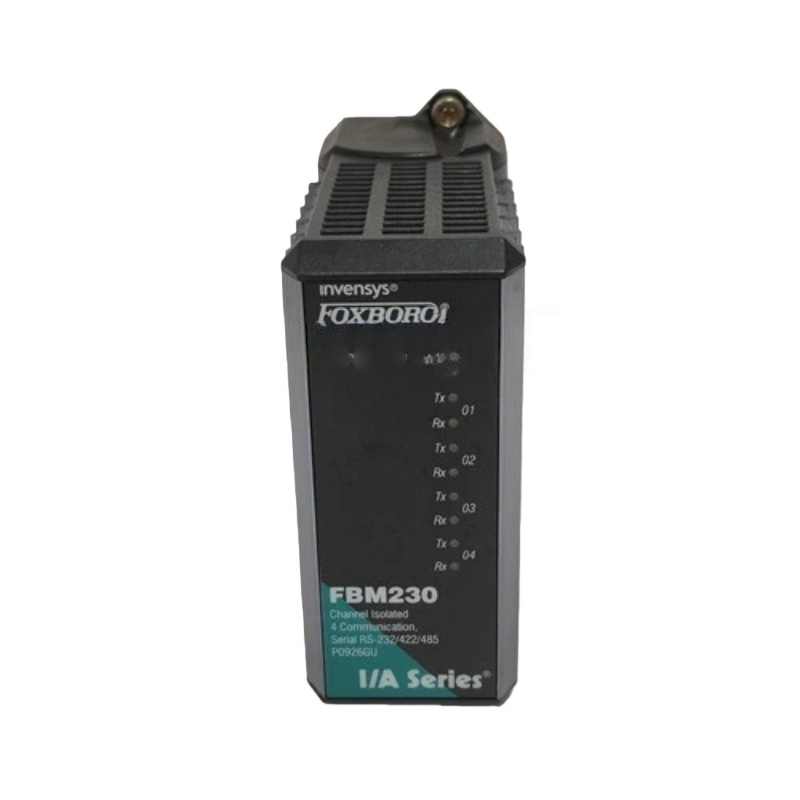

The Foxboro FBM230 P0926GU is a high-performance field device system integrator (FDSI) module designed for the Foxboro I/A Series and Evo™ distributed control systems (DCS). It provides reliable and flexible communication between field devices and control processors, making it a critical component in industrial automation systems.
This module supports multiple communication standards and integrates real-time data from field instruments into the control system database, ensuring efficient monitoring and process control.
Equipped with four independently configurable ports
Supports RS-232, RS-422, and RS-485 interfaces
Connects up to:
64 RS-485 devices, or
4 RS-232/RS-422 devices
Supports Modbus RTU, ASCII, HART, and other protocols
Expandable via downloadable I/O drivers
Handles up to 2000 DCI block connections
Integrates field data into Foxboro control database
Ensures real-time communication and high throughput
Reduces controller workload through onboard processing
Communicates with control processors (e.g., FCP270/FCP280)
Uses redundant 2 Mbps fieldbus for high availability
Operating temperature: -20°C to +70°C
Humidity: 5–95% non-condensing
Compliant with ISA G3 harsh environment standards
DIN rail or modular baseplate mounting
Hot-swappable design minimizes downtime
LED indicators for quick diagnostics
| Parameter | Value |
|---|---|
| Model | FBM230 P0926GU |
| Manufacturer | Foxboro (Schneider Electric) |
| Input Voltage | 24 VDC (+5%, -10%) |
| Power Consumption | ≤ 7 W |
| Communication Ports | 4 (RS-232/422/485) |
| Ethernet | 10/100 Mbps (RJ-45) |
| Operating Temp | -20°C to +70°C |
| Storage Temp | -40°C to +70°C |
| Dimensions | 102 × 45 × 104 mm |
| Weight | ~284 g |
| Mounting | DIN rail / baseplate |
The FBM230 P0926GU is widely used in:
Distributed Control Systems (DCS)
Oil & Gas and Petrochemical industries
Power generation plants
Chemical processing
Industrial automation and SCADA systems
It is ideal for integrating:
Remote I/O systems
PLCs and third-party controllers
Smart field instruments
✔ Multi-protocol compatibility
✔ High device connectivity capacity
✔ Excellent noise immunity (channel isolation)
✔ Scalable and modular architecture
✔ High reliability in harsh environments
The Foxboro FBM230 P0926GU is a versatile and robust communication module that enhances system integration and data exchange in industrial environments. With its flexible interfaces, strong reliability, and seamless compatibility with Foxboro DCS platforms, it is an ideal choice for modern process automation systems.
