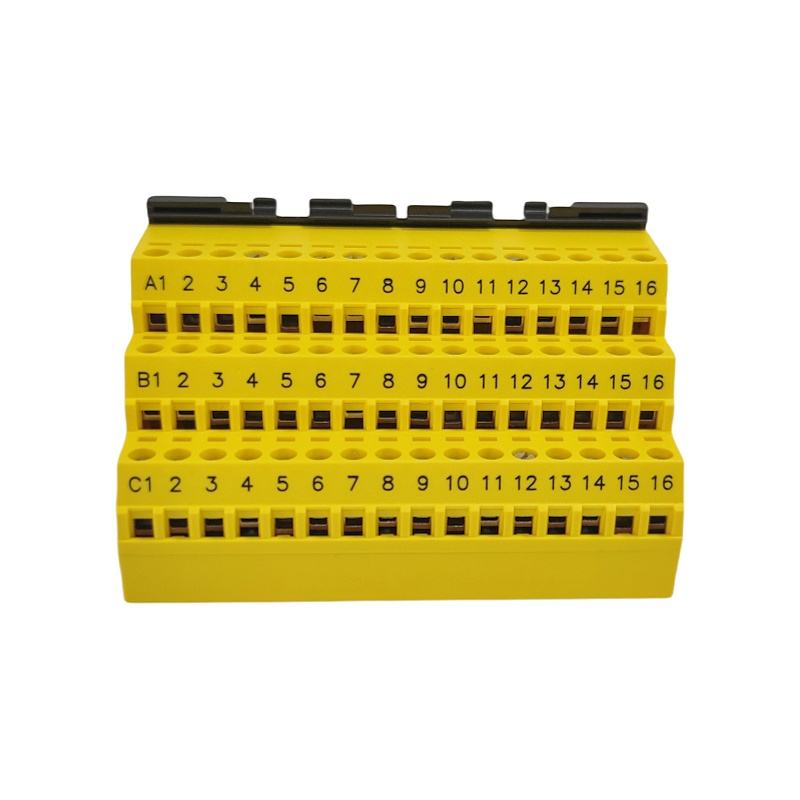

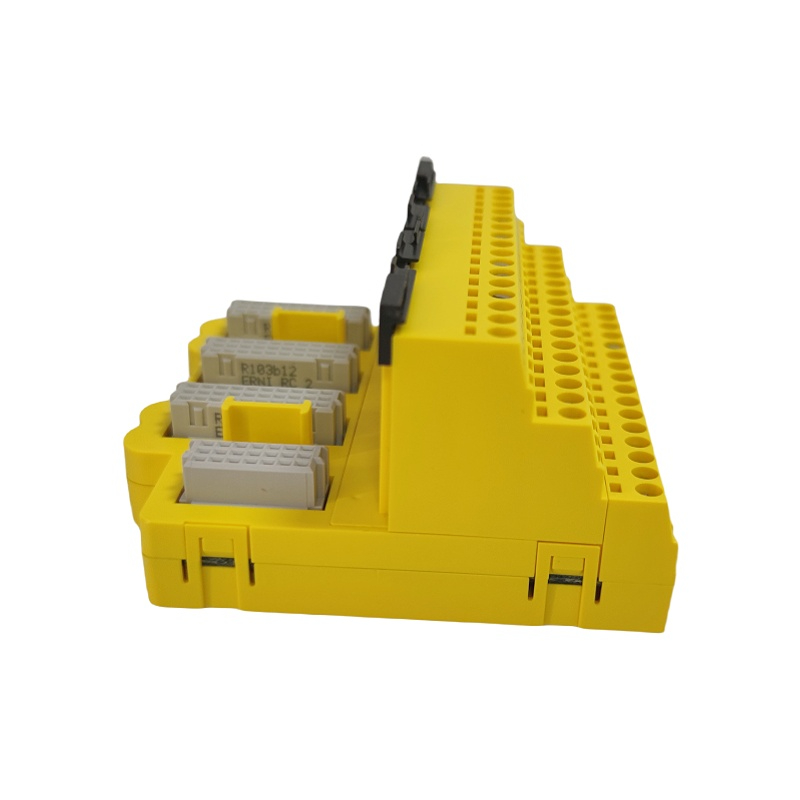

Product Name: EMERSON KJ2201X1-HA1 (12P3322X022)
This is an industrial-grade redundant terminal block manufactured by Emerson. It is primarily used in the DeltaV process control system to provide reliable signal connections and electrical isolation, and is especially suitable for hazardous areas.
Core Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model | KJ2201X1-HA1 | 12P3322X022 is the full ordering number |
| Type | SLS Redundant Terminal Block | Part of the SLS (Smart Logic Solver) series, featuring dual channels (A–B, A–C) |
| Voltage Rating | 30 VDC | Suitable for low-voltage control circuits |
| Current Rating | A–B terminals: 30 mA A–C terminals: 1.0 A |
Different current limits for different channel configurations |
| Operating Temperature | −40°C to +70°C | Designed for harsh industrial environments |
| Protection Rating | IP20 | Touch-safe design, intended for internal installation in non-protected areas |
| Dimensions | 16 cm × 16 cm × 12 cm | Compact form factor |
| Weight | 0.8 kg | Lightweight and easy to install |
| Mounting Method | DIN rail mounting | Suitable for standard control cabinets or panels |
Functions and Applications
-
Redundant Safety: Provides dual circuit paths (A–B and A–C). If one circuit fails, the other continues to operate, ensuring continuous control system operation.
-
Hazardous Area Compatibility: Specifically designed for flammable and explosive environments, featuring intrinsic safety to prevent ignition of surrounding combustible gases.
-
System Integration: Seamlessly integrates into the Emerson DeltaV Distributed Control System (DCS), simplifying process control wiring and maintenance.
