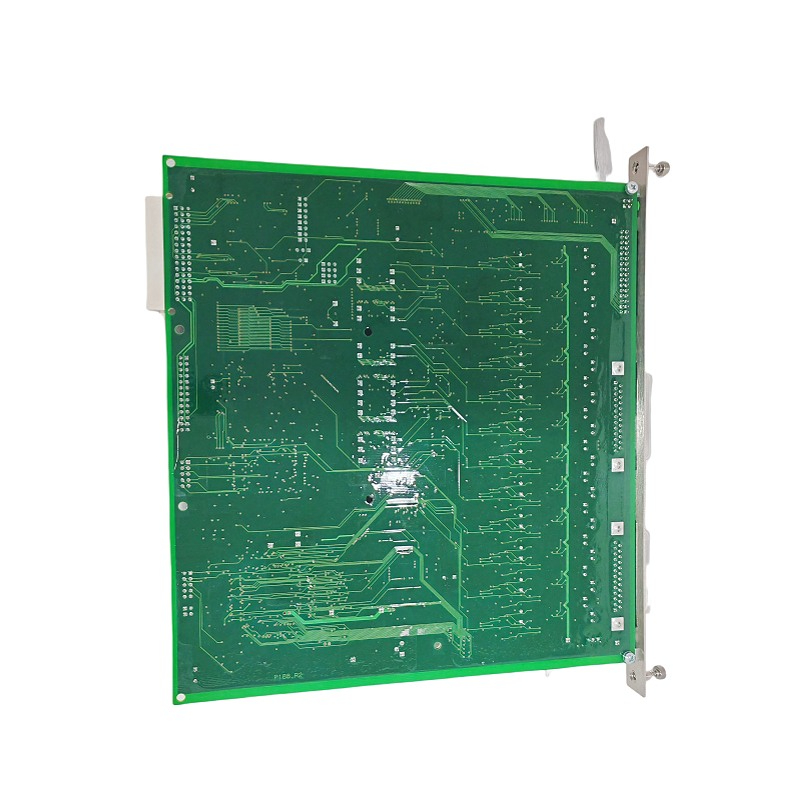

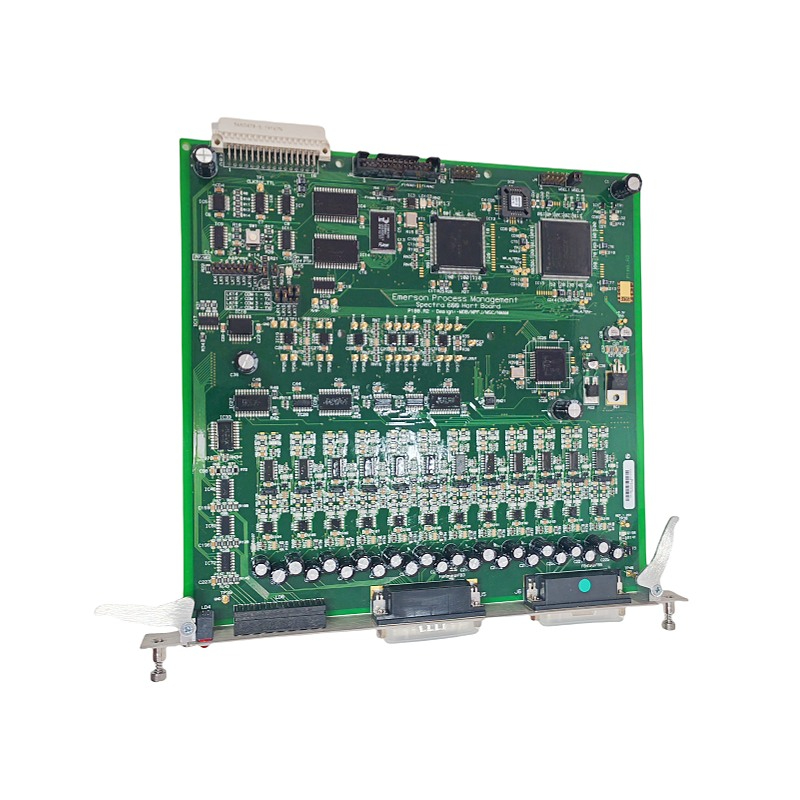

EMERSON P188.R2 connector board

EMERSON P188.R2 is an industrial automation communication connector board manufactured by Emerson. It is primarily used to enable efficient and reliable data transmission and electrical connections between devices.

1. Core Functions

Signal Connection and Distribution:
Supports multiple communication methods (such as RS-485, RS-232, Ethernet, etc.), and is widely used in industrial automation, energy management, and communication systems.

Communication Expansion:
Commonly used as a HART communication module (e.g., EMERSON P188.R2 HART Communication Module), enabling communication with HART protocol devices for field device monitoring and management.

Data Exchange:
Facilitates data communication between different devices (such as coordination with the P155.R2 module) and serves as a key component in process control systems, including the DeltaV system.

2. Technical Specifications and Features

Electrical Performance:
Input voltage range: 24V DC; supports standard voltage levels; output frequency up to standard kHz levels.

Operating Environment:
Designed to withstand harsh operating conditions (such as high temperature, high humidity, and vibration) with strong anti-interference capability (compliant with IEC 61000 series standards).

Temperature Range:
Typical operating temperature range: -20°C to +70°C.

Electrical Protection:
Built-in overcurrent and overvoltage protection circuits, with grounding protection to enhance operational safety.

Modular Design:
Compact structure with plug-and-play capability, allowing easy integration into existing systems or control cabinets.

3. Application Fields

This product is widely used in the following industries:

• Industrial Automation: Equipment interconnection and control

• Process Control: Measurement and control in chemical, petroleum, and pharmaceutical industries

• Energy Management: Power monitoring and energy optimization

• Environmental Monitoring: Water treatment and environmental equipment monitoring

• Other Fields: Transportation infrastructure, testing and diagnostics, and medical equipment
