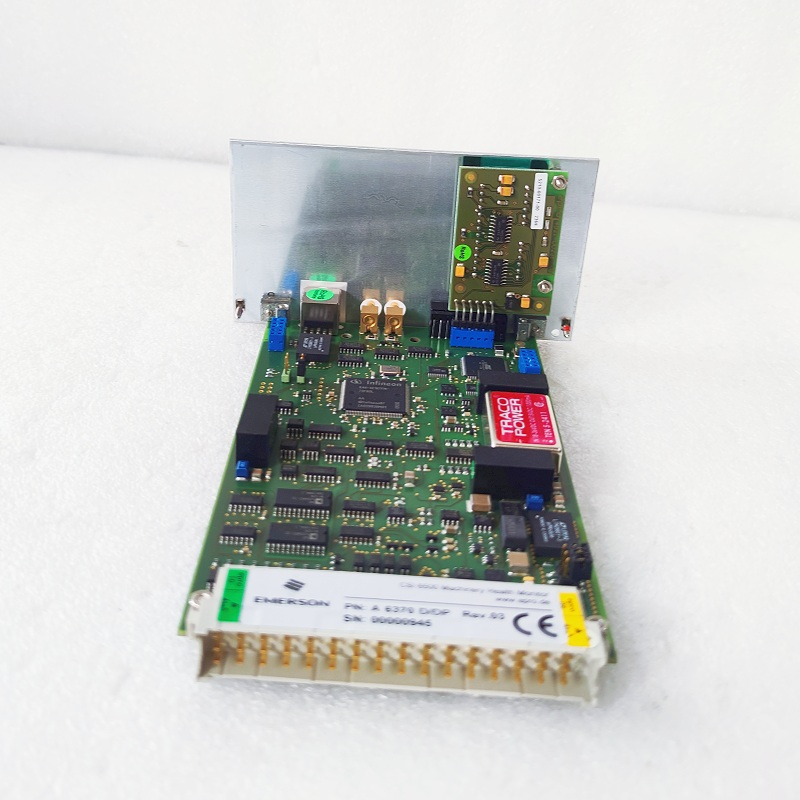

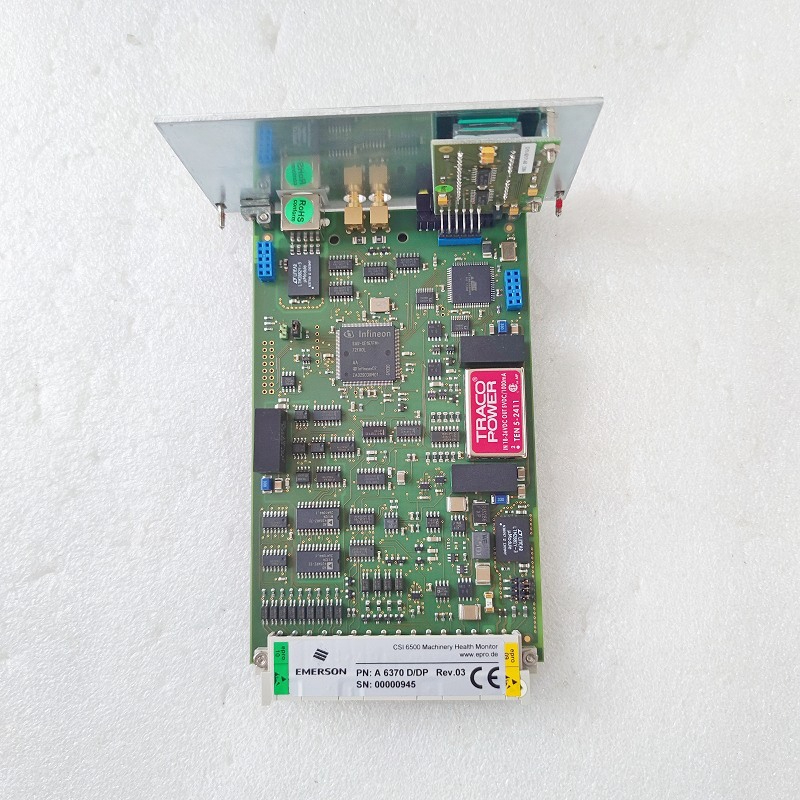

EMERSON A6370D/DP

EMERSON A6370D/DP is an Overspeed Protection Monitor from the AMS 6300 series developed by Emerson Automation Solutions, a business unit of Emerson.

1. Core Functions

Overspeed Protection

Specifically designed to monitor the rotational speed of rotating machinery such as pumps, fans, compressors, and turbines. When the speed exceeds a preset threshold, the monitor issues an alarm and triggers protective actions to prevent severe damage or explosion caused by uncontrolled centrifugal forces.

Multi-Parameter Monitoring

In addition to speed monitoring, it also supports vibration and temperature measurement, enabling users to implement predictive maintenance strategies and enhance overall equipment reliability.

Communication and Integration

Supports standard industrial communication protocols, including Profibus DP, allowing seamless integration with Distributed Control Systems (DCS) or Programmable Logic Controllers (PLC) for centralized monitoring and control.

2. Technical Specifications

• Measurement Range: 0–10,000 RPM or 0–30,000 RPM (depending on sensor configuration)

• Accuracy: ±0.1% or ±0.5% (high-precision digital measurement)

• Response Time: Extremely fast response capability

  • 12.5 ms (Automatic Mode)

  • 35 ms (Once-per-Revolution Mode)

• Power Supply: 24 VDC

Interfaces

• RS-485 / Modbus RTU: For configuration and status monitoring

• Profibus DP: High-speed fieldbus communication (DP version only), supports up to 31 devices, with transmission rates up to 12 Mbit/s

• Relay Outputs / Audible and Visual Alarms: Provide on-site alarm signaling and trigger external protection circuits

Summary

The EMERSON A6370D/DP is a high-precision digital monitor specifically designed for the safety protection of rotating machinery. Its key advantages include extremely fast response time, flexible communication options—particularly Profibus DP—and seamless integration with industrial control systems.
