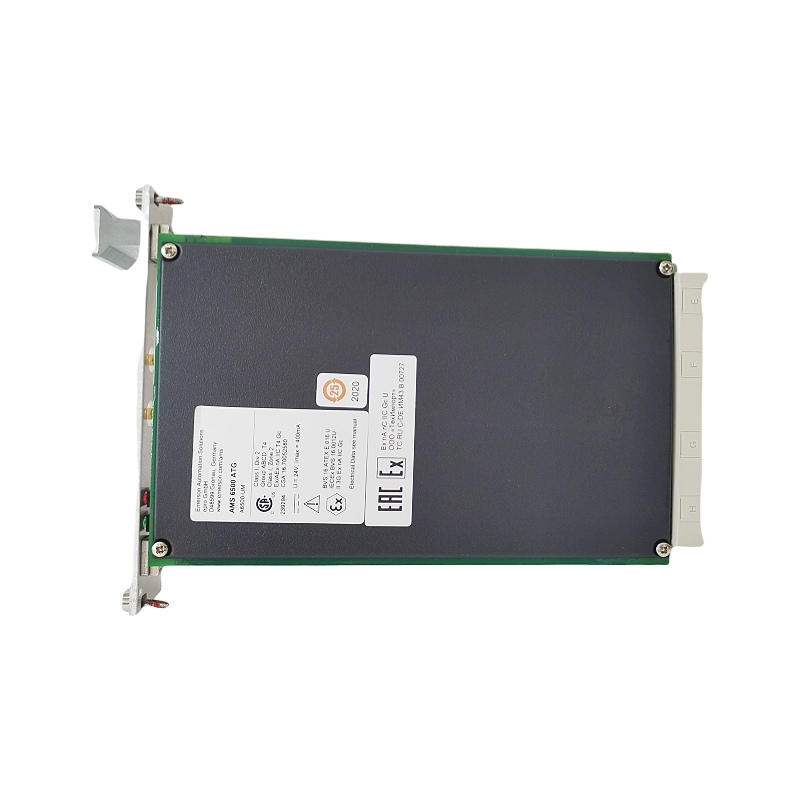

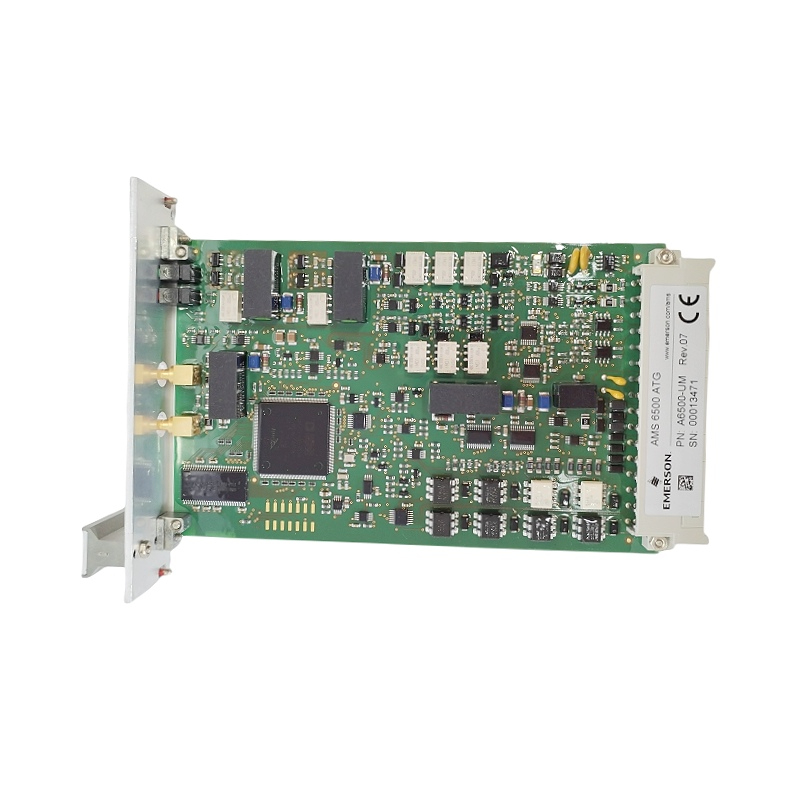

EMERSON A6500-UM

Core Overview

The EMERSON A6500-UM is a key component of the AMS 6500 ATG Mechanical Protection System from Emerson and is commonly referred to as a Universal Measurement Card. It is a high-precision measurement module specifically designed for rotating machinery condition monitoring. The card captures and analyzes critical parameters such as shaft vibration and shaft displacement, enabling early detection of potential equipment faults.

Main Features and Functions

Multi-Sensor Compatibility

• Supports a wide range of sensors, including eddy current probes, piezoelectric sensors (accelerometers or velocity sensors), seismic (electrodynamic) sensors, low-frequency bearing vibration (LF), Hall-effect sensors, and LVDTs (used in conjunction with the A6500-LC).

• Provides two input channels that can be configured independently or combined, offering flexible measurement modes.

High Accuracy and Performance

• Measurement accuracy of ±0.1% to ±0.25% of full scale (FS), depending on configuration.

• Incorporates Emerson’s PeakVue™ technology, delivering advanced vibration early-warning capabilities and the ability to detect subtle abnormal signals.

Flexible Signal Processing

• Supports 0/4–20 mA analog outputs as well as buffered outputs, with strong signal conditioning capabilities.

• Measurement data are transmitted via an internal RS-485 bus to the host system or communication cards (such as the A6500-CC Com Card).

Design Advantages

• Hot-swappable: Supports hot swapping, allowing maintenance without shutting down system power.

• Standard-compliant: Meets API 670 requirements defined by the American Petroleum Institute, and is designed to withstand harsh industrial environments (typically IP67 enclosure rating).

• Modular and compact: 3U single-slot design saves space and is well suited for integration into large monitoring racks.

Typical Applications

• Industrial monitoring: Widely used in power generation (such as steam turbines and generators), petrochemical, steel, and metallurgical industries.

• Equipment protection: Applied to vibration and shaft displacement monitoring of pumps, compressors, turbines, and other rotating machinery, helping maintenance teams identify faults early and minimize unplanned downtime and losses.
