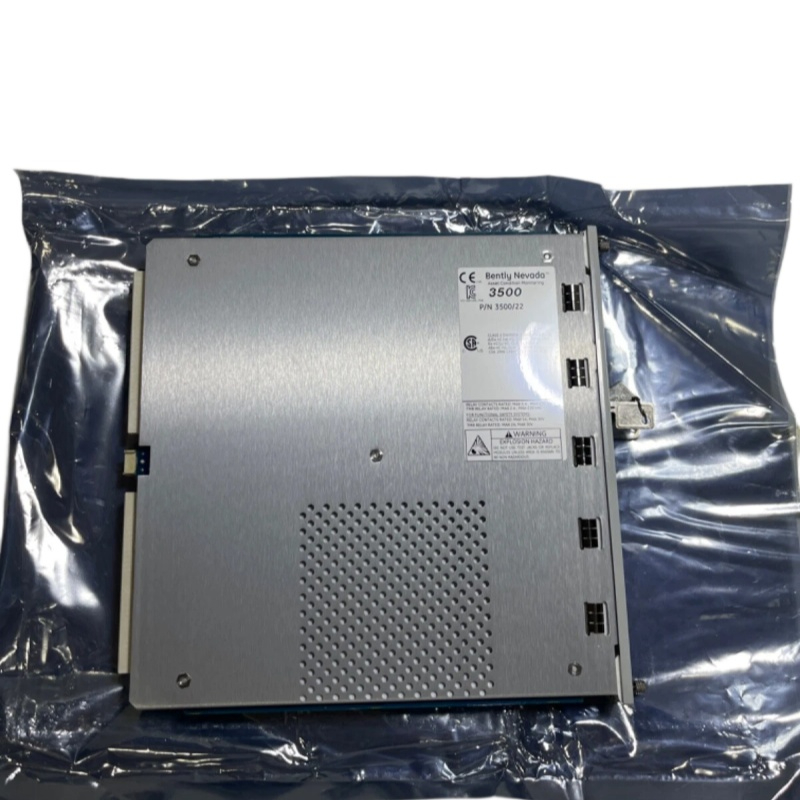

The 3500/22 288055-01N is a Standard Transient Data Interface (TDI) module used inside the Bently Nevada 3500 rack.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
Brand: Bently Nevada
Series: 3500 Machinery Protection System
Product Type: Transient Data Interface (TDI) Module
The Bently Nevada 3500/22 288055-01N Transient Data Interface (TDI) is the primary communication and data-acquisition module for the 3500 Machinery Protection System. Installed in Slot 1 of the 3500 rack, this module connects the rack to monitoring and diagnostic software such as System 1, enabling advanced machine condition monitoring, transient data capture, and predictive maintenance.
The TDI combines the functions of a Rack Interface Module (RIM) and a communication processor, making it the central gateway between field sensors, monitoring modules, and plant networks.
The 3500/22 module enables high-speed communication between the 3500 monitoring rack and external systems.
Interfaces include:
This ensures seamless integration with control rooms and asset management systems.
The TDI continuously collects and transmits both steady-state data and dynamic waveform data, allowing engineers to monitor machine health in real time.
It supports data from:
This enables complete visibility into machine behavior.
The module supports advanced trigger modes for capturing critical events:
This makes it possible to analyze faults precisely when they occur.
Designed for continuous operation in demanding environments, the module offers:
Ideal for mission-critical rotating equipment.
| Parameter | Specification |
|---|---|
| Data Transfer | 100 Mbps Ethernet |
| Waveform Memory | 16 MB transient storage |
| Channels Supported | Up to 16 monitoring channels |
| Power Consumption | Approx. 10.5 W |
| Operating Temperature | −30°C to +65°C |
| Rack Position | Slot 1 in 3500 Rack |
| Configuration Port | Front USB |
The 3500/22 TDI performs several critical roles:
Without the TDI module, the 3500 rack cannot communicate with external systems.
The Bently Nevada 3500/22 288055-01N is widely used for protecting and monitoring:
It is a key component in predictive maintenance programs across heavy industry.
| Model | Difference |
|---|---|
| 288055-01N | Standard package including USB cable |
| 138607-01 | Base version without USB cable |
Both versions provide identical performance and functionality.
