ABB 3BHB005171R0101 CVC750AE101 IGCT module

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

ABB 3BHB005171R0101 CVC750AE101

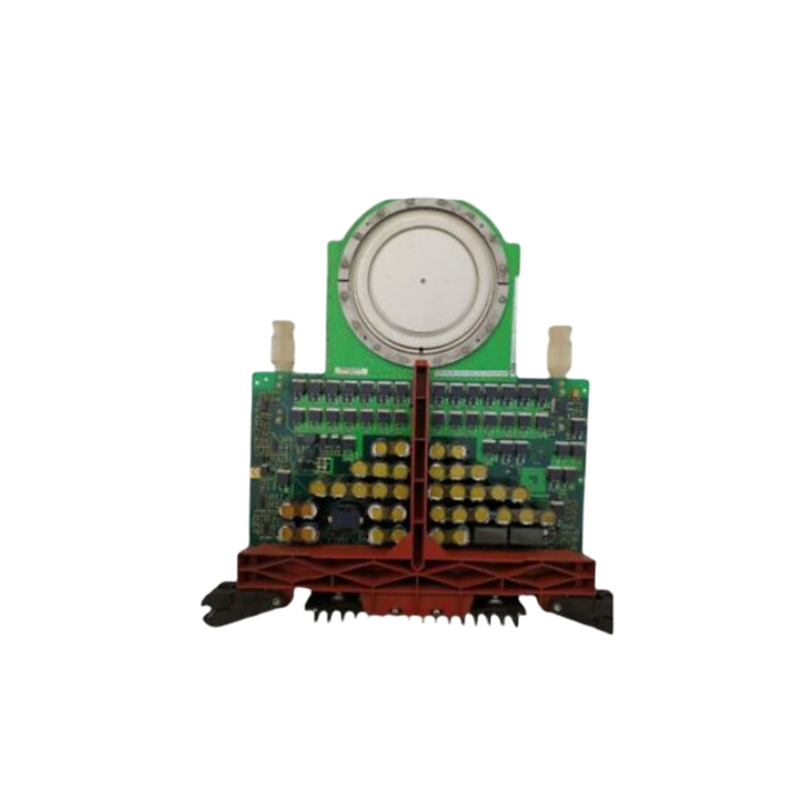

Product Name: ABB CVC750AE101 IGCT Module
Manufacturer: ABB
Order Number: 3BHB005171R0101
Type Designation: CVC750AE101
Product Category: IGCT (Integrated Gate-Commutated Thyristor) Power Module / High Voltage Inverter Spare Part

Product Overview

The ABB 3BHB005171R0101 CVC750AE101 is a high-power IGCT module used in ABB medium-voltage power conversion systems. It is a key power semiconductor component designed for high-performance inverter applications, providing efficient switching, high voltage handling capability, and reliable operation in demanding industrial environments.

The module is associated with ABB medium-voltage drive platforms, including the ACS1000 series, where IGCT technology is used for motor control, power conversion, and high-power industrial drive applications.

Technical Description

• Manufacturer: ABB
• Model: CVC750AE101
• ABB Part Number: 3BHB005171R0101
• Component Type: IGCT Power Module
• Technology: Integrated Gate-Commutated Thyristor (IGCT)
• Application: Medium-voltage inverter and power conversion systems
• Voltage Class: High-voltage power switching application (reported up to 12 kV class)
• Current Capability: High-current switching module (reported around 500 A class)
• Switching Frequency: Up to approximately 2 kHz (application dependent)

Main Features

• High power density and excellent electrical performance
• Fast switching capability compared with conventional thyristor solutions
• Low switching losses and improved energy efficiency
• Designed for reliable operation in harsh industrial environments
• Suitable for demanding continuous-duty applications

Application Range

ABB CVC750AE101 IGCT modules are commonly used in:

• Medium voltage AC drives
• Industrial motor control systems
• Power converters
• Mining equipment
• Steel and metal processing plants
• Cement production systems
• Marine propulsion systems
• Large pumps, fans, compressors and conveyors
• Renewable energy and grid power conversion equipment

Typical System Applications

• ABB ACS1000 medium-voltage drives
• High-power inverter cabinets
• Industrial variable frequency drive systems
• Large-scale energy conversion systems

Conclusion

The ABB 3BHB005171R0101 CVC750AE101 IGCT Module is a critical power semiconductor component for ABB medium-voltage inverter systems. With high voltage capability, fast switching performance, and strong reliability, it is widely used in heavy industrial applications requiring efficient and stable power control. It is an important spare part for maintaining ABB high-power drive systems and minimizing equipment downtime.
