ABB 3BDH001010R0002 CI 930F Interface Module

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

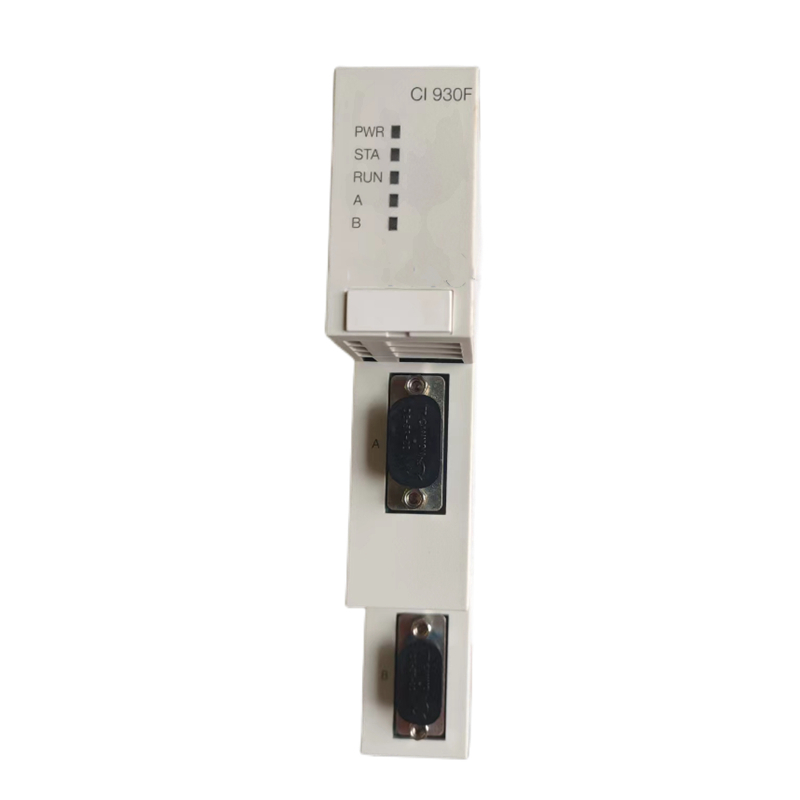

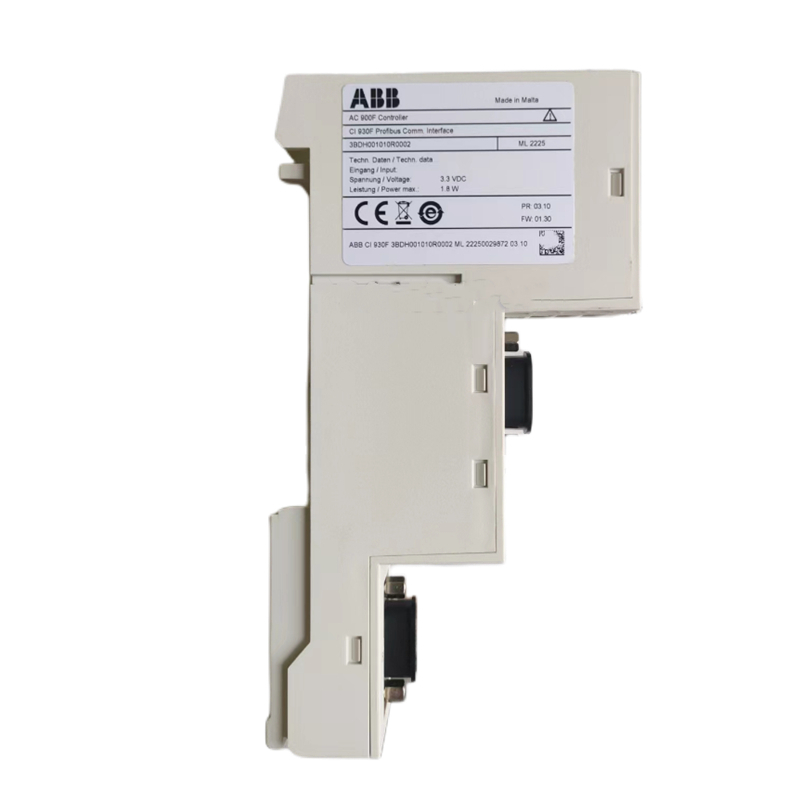

ABB 3BDH001010R0002 CI 930F

ABB CI 930F (Order No. 3BDH001010R0002) is a PROFIBUS DP Master Communication Interface Module designed for the ABB Freelance DCS AC 900F controller family. It provides reliable PROFIBUS fieldbus communication between the AC 900F controller and distributed field devices such as remote I/O stations, drives, and intelligent instruments.

Product Description

• Manufacturer: ABB
• Model: CI 930F
• Order Number: 3BDH001010R0002
• Product Type: Communication Interface Module
• Protocol: PROFIBUS DP Master (DP-V0 / DP-V1)
• Compatible System: ABB Freelance DCS / AC 900F Controller
• Transmission Speed: 9.6 kbit/s to 12 Mbit/s
• PROFIBUS Redundancy: Supported
• Mounting: Requires one coupler bus slot on the CPU module

Technical Specifications

Parameter	Specification
Communication Protocol	PROFIBUS DP Master DP-V0/V1
Data Rate	9.6 kbit/s – 12 Mbit/s
Fieldbus Interface	2 × D-Sub 9-pin female connectors
PROFIBUS Lines	Line A and Line B
Line Redundancy	Yes
Maximum Slaves	Up to 126 PROFIBUS devices
Hot Swap / Hot Configuration	Supported with AC 900F
CPU Compatibility	PM 901F / PM 902F / PM 904F
Current Consumption	Approx. 80 mA via 24 V CPU terminal
Power Dissipation	Approx. 1.8 W
Protection Class	IP20
Operating Temperature	-20°C to +70°C
Weight	Approx. 115 g

Features and Benefits

• High-speed PROFIBUS communication
  Supports PROFIBUS DP communication up to 12 Mbit/s for fast and stable field device data exchange.
• Built-in PROFIBUS line redundancy
  Dual PROFIBUS interfaces improve network availability and reliability for critical industrial applications.
• Flexible device integration
  Supports connection of up to 126 PROFIBUS slave devices, including ABB and third-party field equipment.
• High system availability
  Supports hot plug and online configuration functions when used with AC 900F controllers.
• Compact industrial design
  Designed for easy installation within ABB Freelance DCS control cabinets.

Application Areas

ABB CI 930F is widely used in industrial automation systems, including:

• Power generation plants
• Chemical and petrochemical facilities
• Water and wastewater treatment
• Oil & gas automation systems
• Process control applications
• Factory automation systems
• Distributed I/O communication networks

Compatible ABB Systems

• ABB Freelance DCS
• ABB AC 900F Controller
• ABB PM 901F / PM 902F / PM 904F CPU modules
• PROFIBUS DP field devices and remote I/O systems

Conclusion

The ABB CI 930F (3BDH001010R0002) is a high-performance PROFIBUS DP Master communication module for ABB Freelance DCS systems. With support for DP-V0/V1 communication, 12 Mbit/s transmission speed, PROFIBUS line redundancy, and integration with AC 900F controllers, it provides a reliable solution for industrial fieldbus communication and high-availability process automation applications.
