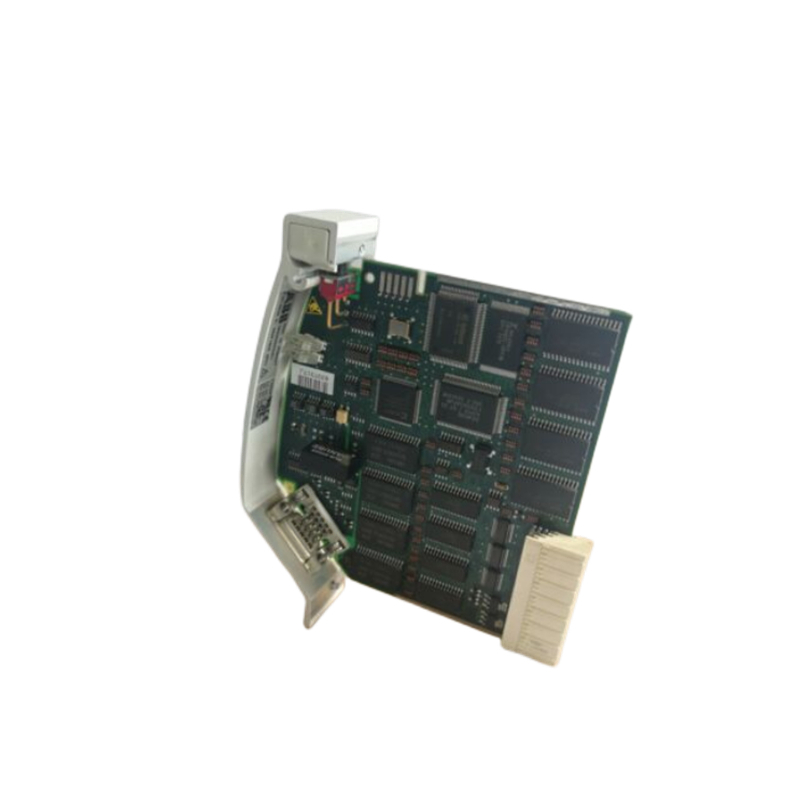

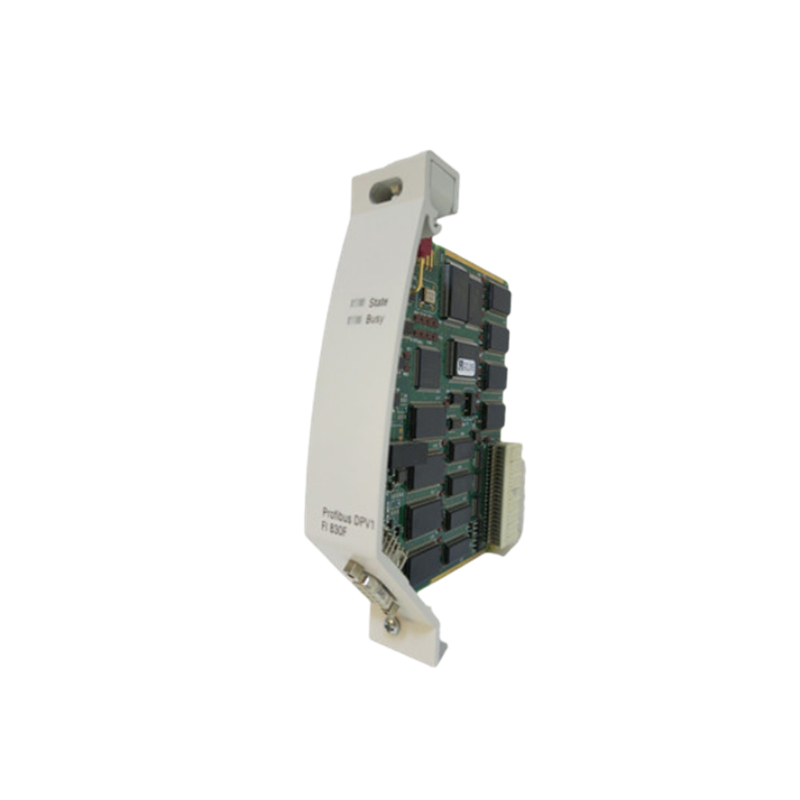

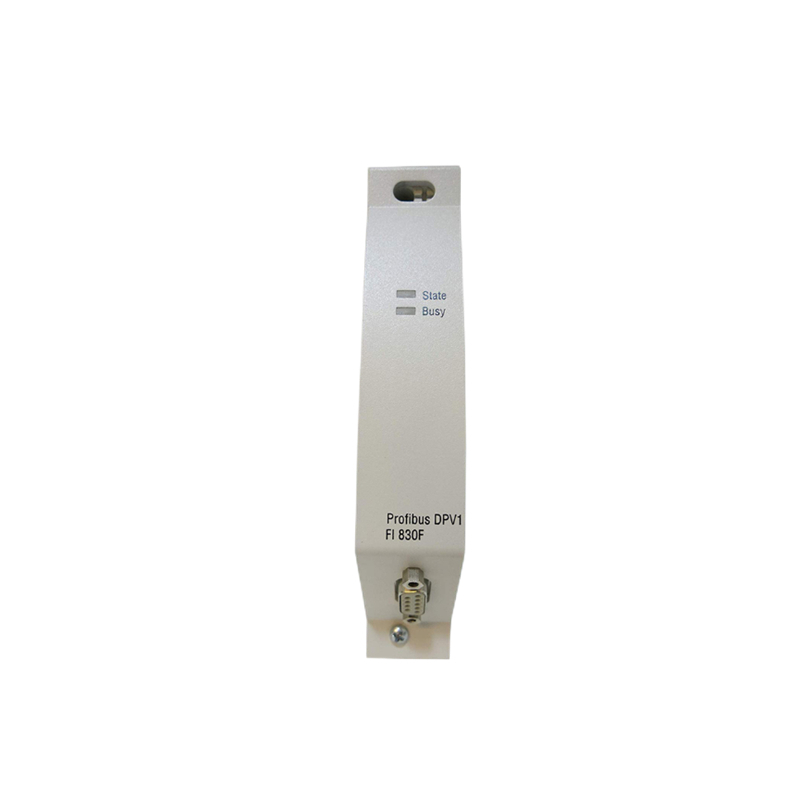

ABB 3BDH000032R1 FI 830F Communication Module

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

ABB 3BDH000032R1 FI 830F

Product Name: FI 830F Fieldbus Module
Manufacturer: ABB
Part Number: 3BDH000032R1
Product Type: Communication / Fieldbus Module
System: ABB Freelance DCS / AC 800F Controller System

Product Description

The ABB FI 830F (3BDH000032R1) is a PROFIBUS-DP Fieldbus Communication Module designed for ABB Freelance DCS systems. It provides a PROFIBUS-DP master interface for communication between the AC 800F controller and distributed field devices such as remote I/O stations, drives, and intelligent field instruments.

The module is designed for use with ABB PM 802F or PM 803F controller modules and enables high-speed, reliable fieldbus communication in industrial automation applications.

---

Technical Specifications

Parameter	Description
Manufacturer	ABB
Model	FI 830F
Article Number	3BDH000032R1
Product Type	Fieldbus Communication Module
Communication Protocol	PROFIBUS-DP
PROFIBUS Standard	PROFIBUS-DP V1 (DIN 19245)
Interface	RS-485
Maximum Transmission Rate	Up to 12 Mbit/s
Maximum Slave Devices	Up to 126 PROFIBUS slaves
Controller Compatibility	PM 802F / PM 803F
Memory	256 KB shared onboard memory
Electrical Isolation	Yes
Redundancy Support	Supports redundant operation with AC 800F
Installation	Hot swap supported (insert/remove during operation)

---

Main Features

• PROFIBUS-DP Master Function
  • Provides direct communication between ABB controllers and PROFIBUS field devices.
  • Supports cyclic data exchange for real-time process control.
• High-Speed Communication
  • Supports PROFIBUS baud rates up to 12 MBd, suitable for demanding industrial automation applications.
• Large Network Capacity
  • Allows connection of up to 126 PROFIBUS slave devices on one network.
• Redundant Communication Capability
  • Can achieve PROFIBUS line redundancy using ABB RLM01 redundancy modules.
  • Supports redundant master operation with redundant AC 800F controllers.
• Easy Engineering
  • Configuration and parameterization are performed directly through ABB Freelance engineering tools without additional PROFIBUS configuration software.

---

Dimensions & Weight

• Height: 155 mm
• Width: 28 mm
• Depth: 125 mm
• Net Weight: Approx. 0.26 kg

---

Application Range

ABB FI 830F is widely used in:

• Power generation plants
• Oil & gas facilities
• Chemical and petrochemical industries
• Water treatment systems
• Manufacturing automation
• Process control systems based on ABB Freelance DCS

Typical applications include:

• Remote I/O communication
• PROFIBUS-based instrument integration
• Variable frequency drive communication
• Distributed control system expansion

---

Conclusion

The ABB FI 830F (3BDH000032R1) is a reliable PROFIBUS-DP communication module for ABB Freelance DCS and AC 800F automation platforms. With high-speed RS-485 communication, support for up to 126 field devices, electrical isolation, and redundancy capability, it provides a robust solution for industrial process automation networks.
