The ABB 3BDH000013R1 SA 811F is a reliable industrial power supply module for ABB Freelance control systems.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons

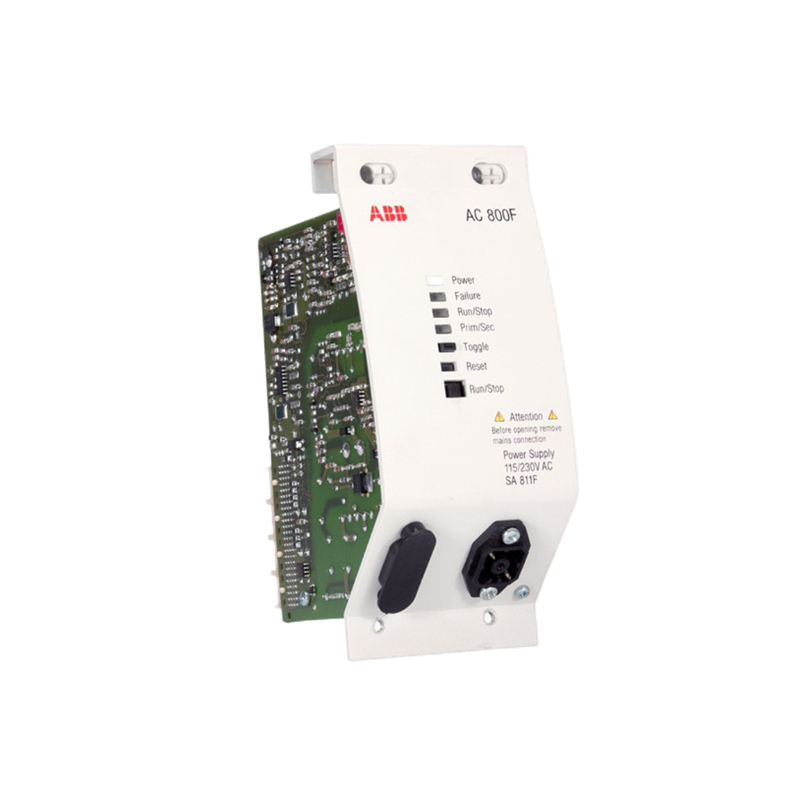

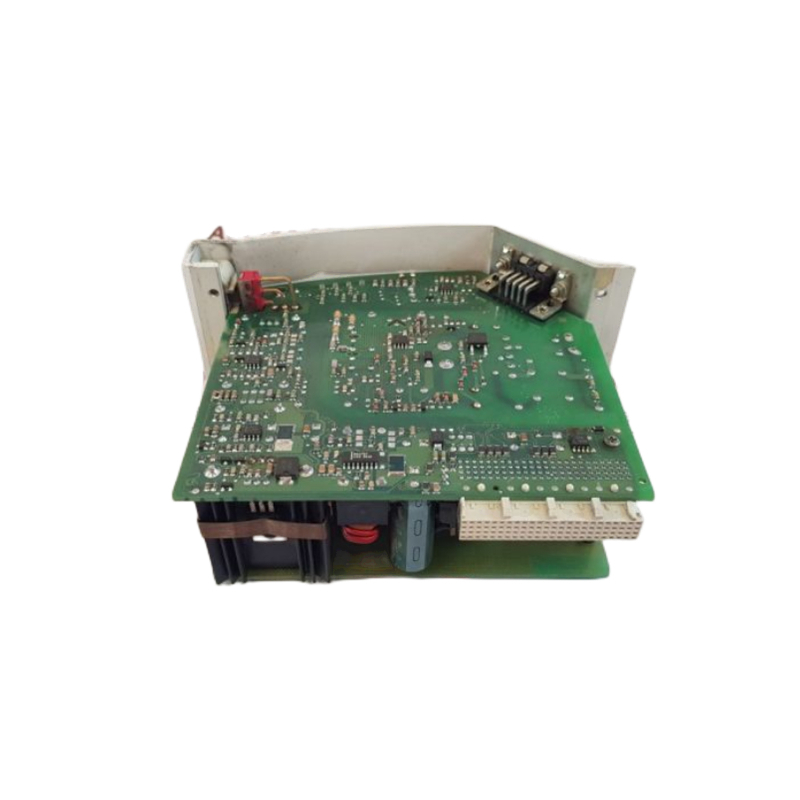

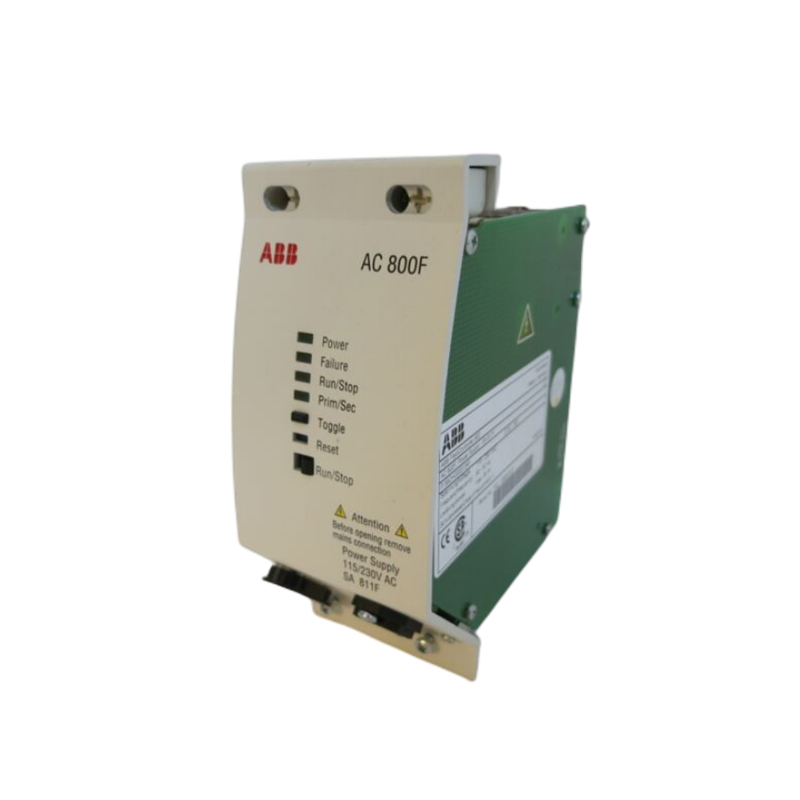

ABB 3BDH000013R1 (SA 811F) is an ABB Freelance / AC 800F system power supply module designed to provide stable DC power for ABB control system components. It is mainly used with PM 802F and PM 803F controllers in ABB Freelance automation systems.
ABB SA 811F Power Supply
Order Number: 3BDH000013R1
Product Type: Power Supply Module
System: ABB Freelance DCS / AC 800F Controller Platform
| Parameter | Description |
|---|---|
| Manufacturer | ABB |
| Model | SA 811F |
| Article Number | 3BDH000013R1 |
| Input Voltage | 115 / 230 VAC (auto-adjusting) |
| Output Voltage | 5 VDC / 5.5 A and 3.3 VDC / 6.5 A |
| Application | AC 800F controller power supply |
| Compatible Controllers | PM 802F, PM 803F |
| Protection Functions | Overload protection, open-circuit protection, short-circuit protection |
| Output Isolation | Electrically isolated output |
| Weight | Approx. 0.46 kg |
The SA 811F converts a 115/230 VAC input into regulated DC power for ABB Freelance controller hardware. It supplies power to AC 800F modules and provides high stability with low output ripple through electronic voltage regulation.
The module also includes a power-fail detection function. If input power loss exceeds approximately 5 ms, the SA 811F generates a power-fail signal, allowing the controller system to perform a controlled shutdown and restart sequence.
ABB SA 811F is commonly used in:
The ABB 3BDH000013R1 SA 811F is a reliable industrial power supply module for ABB Freelance control systems. With regulated 5 VDC and 3.3 VDC outputs, comprehensive protection features, and support for AC 800F controllers, it is an essential component for maintaining stable operation of ABB distributed control systems.
