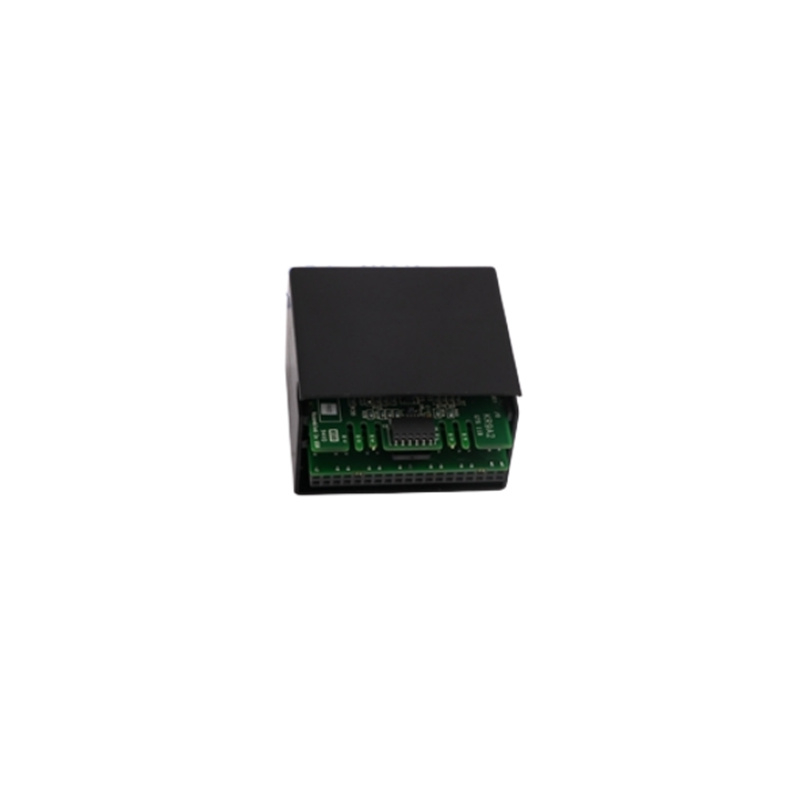

ABB 3ASC25H214 DATX130

ABB 3ASC25H214 DATX130 is an ABB industrial automation spare board, commonly identified as a DATX 130 Rotor Feedback Board. It is used in ABB drive and control systems, especially in ABB ACS600/ACS800 series applications, where it provides rotor position feedback and signal processing functions for motor control.

Product Information

• Manufacturer: ABB
• Part Number: 3ASC25H214
• Type Designation: DATX130 / DATX 130
• Product Type: Rotor Feedback Board / Feedback Interface Board
• Application: ABB industrial drives and motor control systems
• Weight: Approx. 0.14 kg

Technical Description

The ABB DATX130 board is designed to acquire and process feedback signals from motor rotor feedback devices. It plays an important role in maintaining accurate motor speed and torque regulation in ABB drive systems.

Main functions include:

• Rotor position feedback processing
  Receives encoder/resolver feedback signals and converts them into usable information for the drive controller.
• Motor speed and torque control support
  Provides precise feedback data required for advanced motor control algorithms such as Direct Torque Control (DTC).
• Signal conditioning
  Processes analog feedback signals and improves measurement accuracy and stability.
• Drive system communication
  Exchanges feedback information with the main control unit to ensure coordinated operation.

Key Specifications

Parameter	Description
Board Type	Rotor Feedback Board
ABB Type	DATX 130
Part Number	3ASC25H214
Signal Resolution	12-bit (reported specification)
Operating Voltage	5 V DC (reported specification)
Output Type	Analog signal
Temperature Coefficient	Approx. 0.01%/°C
Installation	ABB drive control cabinet / internal PCB slot

Applications

ABB DATX130 3ASC25H214 is widely applied in:

• Industrial motor drive systems
• Variable frequency drives (VFD)
• Paper and pulp machinery
• Power generation equipment
• Metallurgy and heavy industry
• Oil & gas processing equipment
• Industrial automation systems

Advantages

• High-precision motor feedback processing
• Improves drive control accuracy and stability
• Compatible with ABB legacy drive systems
• Suitable for industrial maintenance and replacement projects
• Supports long-term operation in demanding environments

Conclusion

The ABB 3ASC25H214 DATX130 Rotor Feedback Board is a critical feedback interface component for ABB drive systems. It ensures accurate rotor position and speed feedback, enabling reliable motor control performance in industrial automation applications. It is commonly used as a replacement spare part for ABB ACS600/ACS800-related systems and other ABB drive platforms requiring DATX130 functionality.
