ABB 3ADT314100R1001

Product Overview

• Manufacturer: ABB
• Part Number: 3ADT314100R1001
• Type Designation: SDCS-PIN-4-COAT

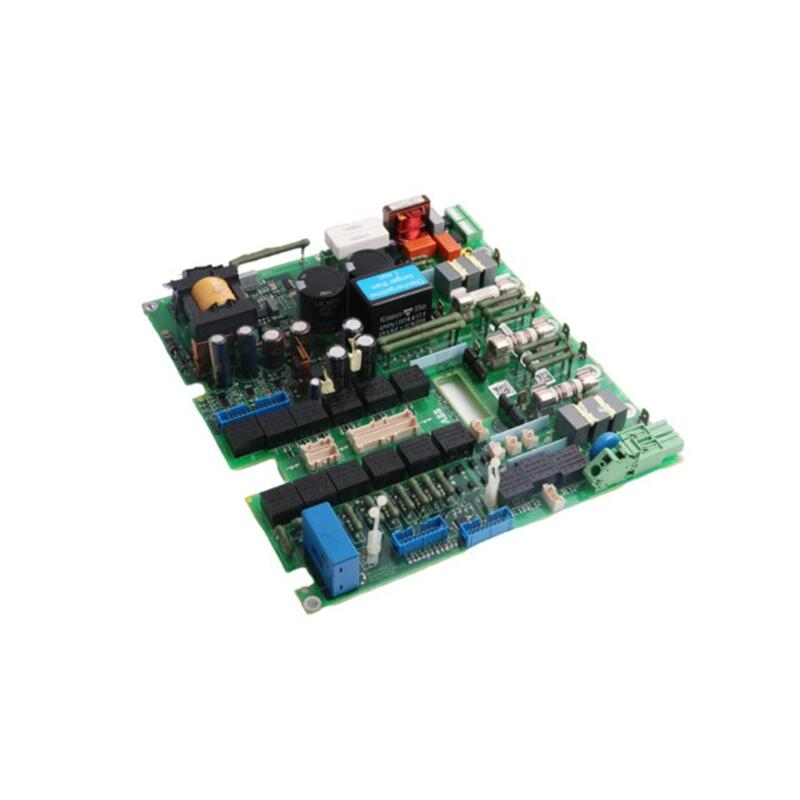

• Product Name: SDCS-PIN-4-COAT Power Interface Board
• Product Type: Spare Part / Power Interface Board
• Weight: Approx. 0.8 kg

Technical Description

The SDCS-PIN-4-COAT board is an interface board designed for ABB DCS series DC drive systems. It provides the connection between the drive control electronics and the power section, handling power interface functions and field supply control.

Main functions:

• Power interface between control board and power components
• Field supply interface (onboard field supply capability)
• Signal isolation and conditioning
• Power circuit monitoring and distribution
• Enhanced protection through conformal coating (“COAT”) for harsh industrial environments

Compatible Systems / Applications

Commonly used in:

• ABB DCS800 DC Drive systems
• ABB DCS500 / DCS600 drive family applications
• Industrial DC motor control systems
• Heavy-duty automation equipment

Typical industries:

• Steel and metallurgy
• Paper and pulp
• Mining
• Marine systems
• Cement plants
• Power generation auxiliary drives

Key Features

• Original ABB spare component
• Conformal coated PCB design for improved environmental resistance
• Reliable operation in industrial drive applications
• Supports high-power DC drive control architectures

Replacement Information

The ABB replacement product reference listed for this item is 3ADT316300R1510.

Conclusion

The ABB 3ADT314100R1001 SDCS-PIN-4-COAT Power Interface Board is a critical spare part for ABB DC drive systems, providing stable power interfacing and field supply functions between the control and power stages. It is widely used for maintaining and repairing ABB DCS drive installations where high reliability and continuous operation are required.
