ABB AO810 I/O Analog Output Module

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

ABB AO810

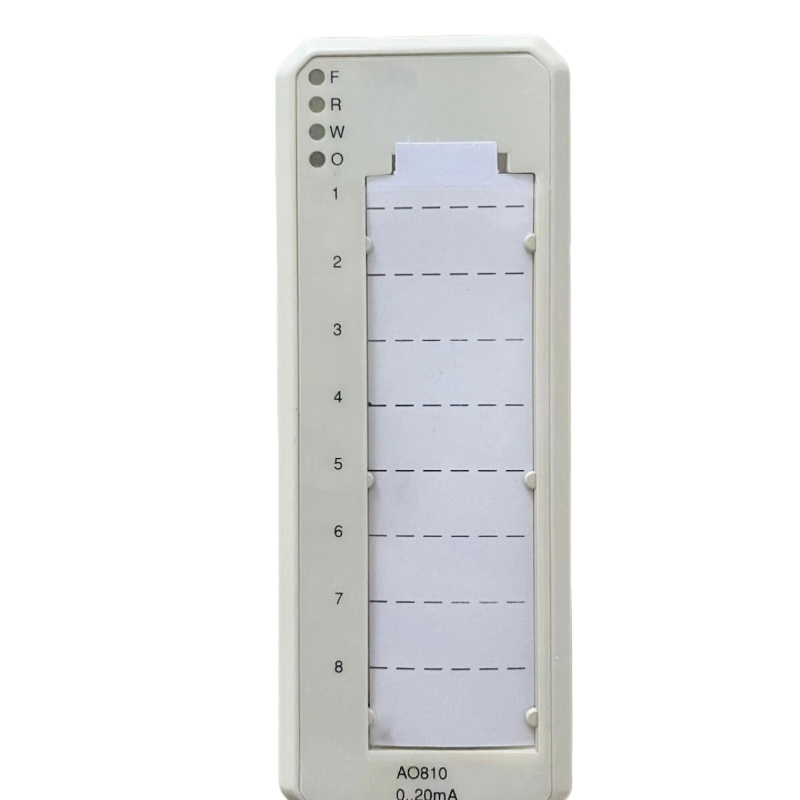

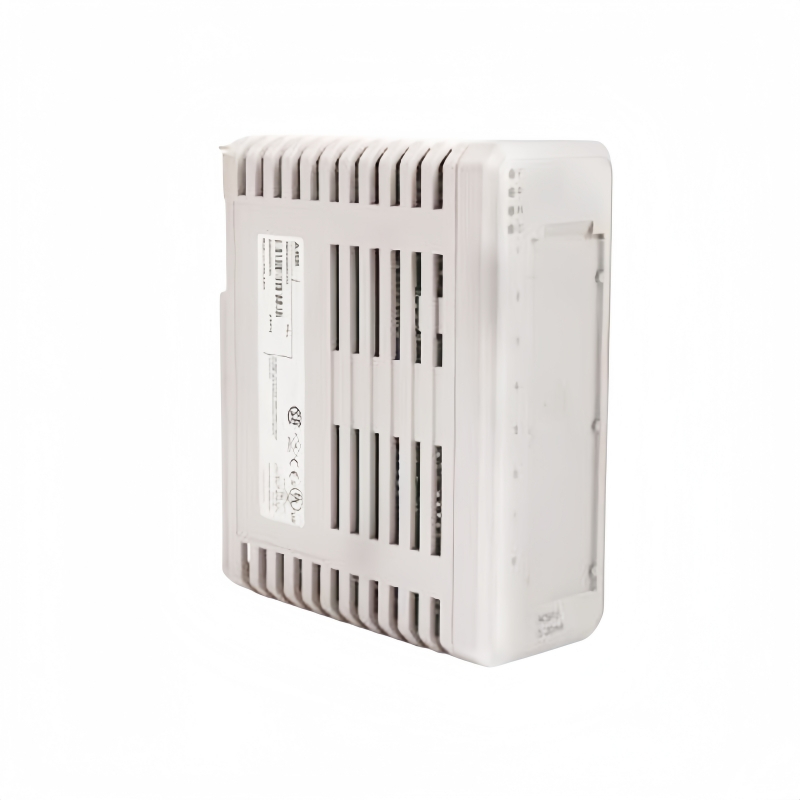

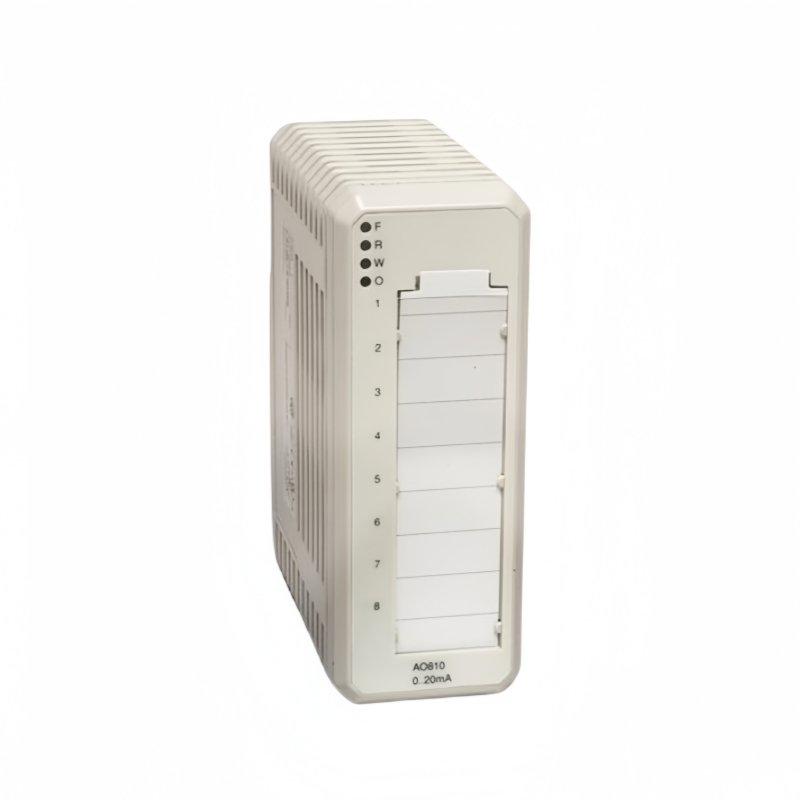

The ABB AO810 is an S800 I/O Analog Output Module designed for ABB industrial automation systems, especially ABB Ability™ System 800xA and AC 800M controllers. It provides reliable analog current outputs for controlling field devices such as valves, actuators, and variable speed drives.

Product Overview

• Manufacturer: ABB
• Product Type: Analog Output Module
• Series: S800 I/O
• Model: AO810
• Article Number: 3BSE038415R1 (AO810/AO810V2)
• Application: Process control, DCS, PLC distributed I/O systems

Technical Specifications

Parameter	Specification
Module Type	Analog Output
Number of Channels	8 channels
Output Signal	0…20 mA / 4…20 mA
Resolution	14 bit
Isolation	Groupwise isolated from ground
Output Load	≤500 Ω (typical configuration)
Diagnostics	Channel monitoring, power supervision, open-circuit detection
Communication	ABB S800 I/O ModuleBus
HART Support	No
Redundancy	No
Power Supply	24 V DC
Mounting System	S800 I/O

Key Features

• 8 independent analog output channels for precise process control.
• Supports standard industrial current signals:
  • 0–20 mA
  • 4–20 mA
• Built-in diagnostics for:
  • Output channel faults
  • Open circuit detection
  • Low process power supply
• Output protection against short circuit conditions.
• Supports OSP (Output Set to Predetermined value) function, allowing outputs to move to a predefined safe state during faults.

Application Range

ABB AO810 is widely used in:

• DCS (Distributed Control Systems)
• Power generation plants
• Oil & gas facilities
• Chemical and petrochemical industries
• Water treatment systems
• Manufacturing automation

Typical applications include:

• Control valve positioning
• Motor speed references
• Pressure, flow, and temperature control loops
• Analog command signals to field instruments

Compatible ABB Systems

• ABB Ability™ System 800xA
• ABB AC 800M Controllers
• ABB S800 I/O Stations

Conclusion

The ABB AO810 (3BSE038415R1) is a reliable 8-channel analog output module for ABB S800 I/O systems. With accurate 14-bit resolution, robust diagnostics, and support for standard 4–20 mA process signals, it is widely used in critical industrial automation applications requiring stable and precise analog control.
