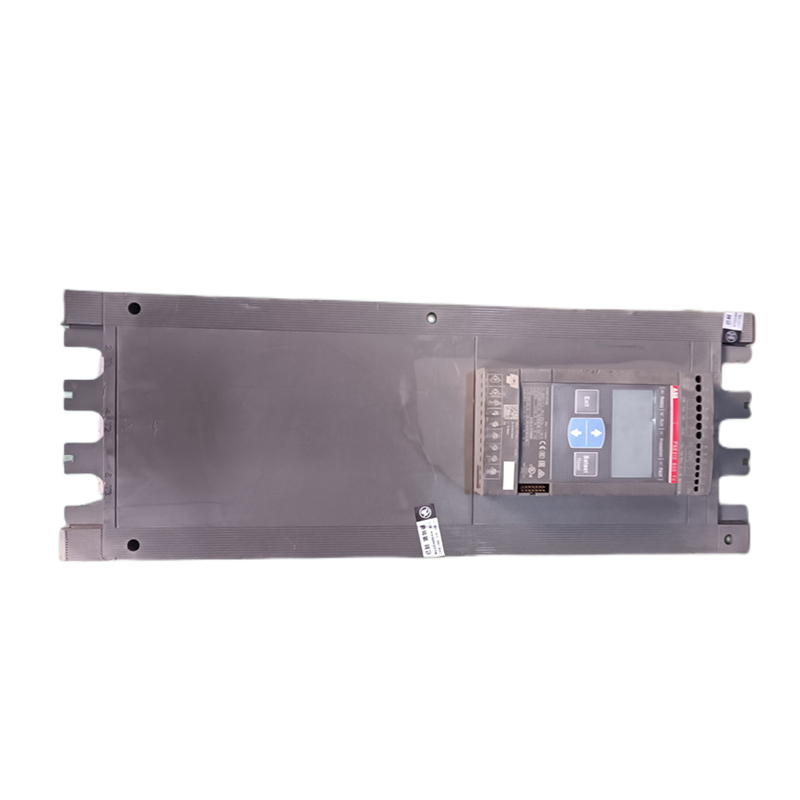

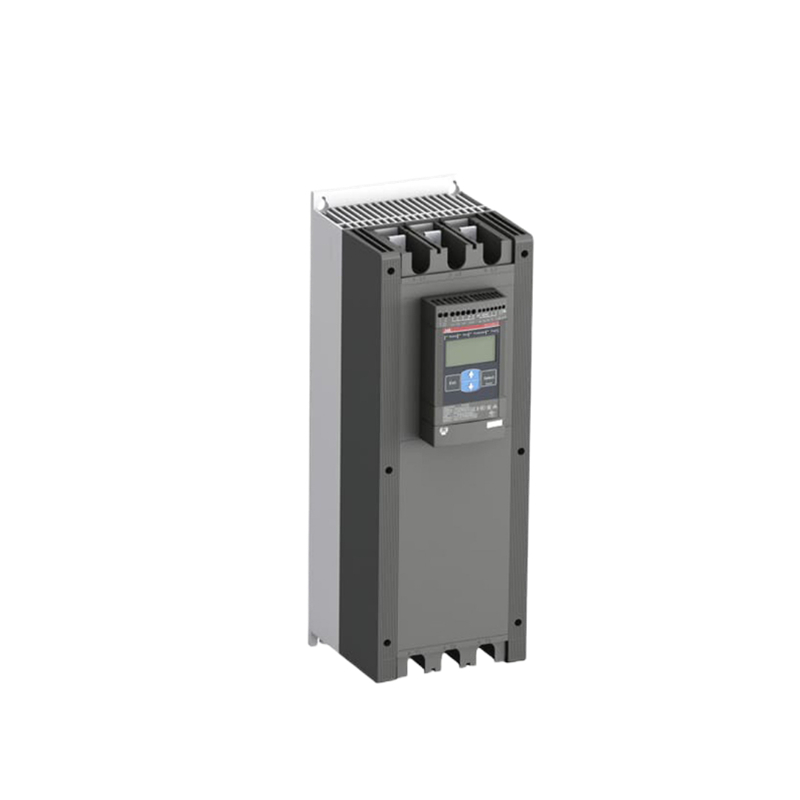

ABB 1SFA897112R7000

ABB 1SFA897112R7000 is a PSE210-600-70 softstarter from ABB’s PSE series, designed for controlled starting and stopping of three-phase motors. It provides reduced mechanical stress, lower starting current, and improved motor protection for industrial motor applications.

Product Overview

• Manufacturer: ABB
• Part Number: 1SFA897112R7000
• Model: PSE210-600-70
• Product Type: Softstarter
• Series: ABB PSE Softstarter Series
• Rated Operational Current: 210 A
• Main Voltage Range: 208…600 VAC
• Control Supply Voltage: 100…250 VAC, 50/60 Hz

Technical Specifications

Parameter	Specification
Rated current (Ie)	210 A
Rated operational voltage	208…600 VAC
Motor power capacity	Approx. 59 kW @ 230 V, 110 kW @ 400 V, 132 kW @ 500 V
Frequency	50/60 Hz
Control supply	100…250 VAC
Control circuit voltage	24 VDC operation
Starting method	Voltage ramp / torque control
Start ramp time	Adjustable
Stop ramp time	Adjustable
Protection class	IP00 (main terminals)
Communication	Fieldbus option / Modbus RTU capability
Weight	Approx. 12.4 kg
Dimensions (W×H×D)	190 × 550 × 236.5 mm

Key Features

• Two-phase controlled soft starting and stopping
• Built-in bypass contactor for reduced energy losses during operation
• Electronic motor overload protection
• Underload protection
• Locked rotor protection
• Current limit function
• Kick-start function for high inertia loads
• Analog current output (4–20 mA)
• Illuminated display for easy commissioning and monitoring

Typical Applications

ABB PSE210-600-70 is commonly used in:

• Pumps
• Fans and blowers
• Compressors
• Conveyors
• HVAC systems
• Industrial processing equipment
• Water treatment systems
• Mining and material handling equipment

Advantages

• Reduces motor starting current peaks
• Minimizes mechanical shock on motors and driven equipment
• Extends motor and gearbox service life
• Simplifies installation compared with traditional star-delta starters
• Suitable for medium-power industrial motor control systems

Conclusion

The ABB 1SFA897112R7000 PSE210-600-70 is a robust industrial softstarter designed for motors up to approximately 132 kW (depending on voltage). With integrated motor protection, bypass functionality, and flexible control features, it is widely used in industrial automation, process industries, and heavy-duty motor applications.
