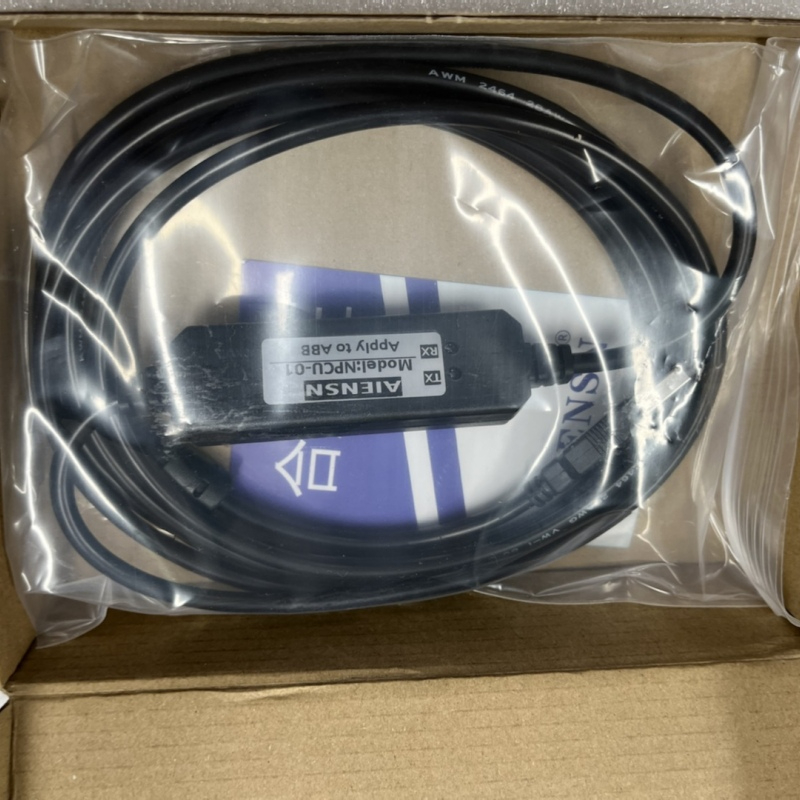

ABB NPCU-01

ABB NPCU-01 is a PC Connection Unit used with ABB low-voltage drives (especially ABB ACS 600 series / related drive systems). It provides a communication interface between a personal computer (PC) and ABB drives, allowing users to configure, monitor, commission, and diagnose drive parameters through ABB software tools.

Product Description

• Manufacturer: ABB
• Model: NPCU-01
• Product Type: PC Connection Unit / Communication Adapter
• Main Function: RS-232/RS-485 communication interface between PC and ABB drive systems
• Application: ABB ACS 600 series drives and compatible ABB drive control systems

Technical Features

• Communication Conversion
  • Converts PC serial communication signals (RS-232) to ABB drive communication interface (RS-485 / panel bus).
  • Provides galvanic isolation for safer and more reliable communication.
• PC-Based Drive Control
  • Enables a PC to replace the standard drive control panel for parameter setting and monitoring.
  • Supports ABB drive configuration and commissioning software.
• Connection Method
  • Connects to the PC serial port.
  • Connects to ABB drive/control panel interface through communication cable.

Typical Applications

ABB NPCU-01 is commonly used in:

• Industrial motor drive commissioning
• ABB ACS 600 drive parameter programming
• Drive troubleshooting and maintenance
• Remote monitoring and diagnostics
• Factory automation systems

Benefits

• Simplifies ABB drive setup and maintenance
• Allows engineers to configure drives using PC software
• Provides stable communication for industrial environments
• Reduces the need for manual keypad configuration

Related ABB Components

NPCU-01 is often used together with ABB drive communication accessories such as NBCI-02 Bus Connection Interface Modules, which provide communication connections between ABB drives, control panels, and external controllers.

Conclusion

ABB NPCU-01 is a dedicated ABB drive PC communication adapter designed for engineering and maintenance operations. It is mainly used for connecting a computer to ABB ACS-series drives for programming, parameter management, commissioning, and diagnostics, making it an important accessory for ABB drive service applications.
