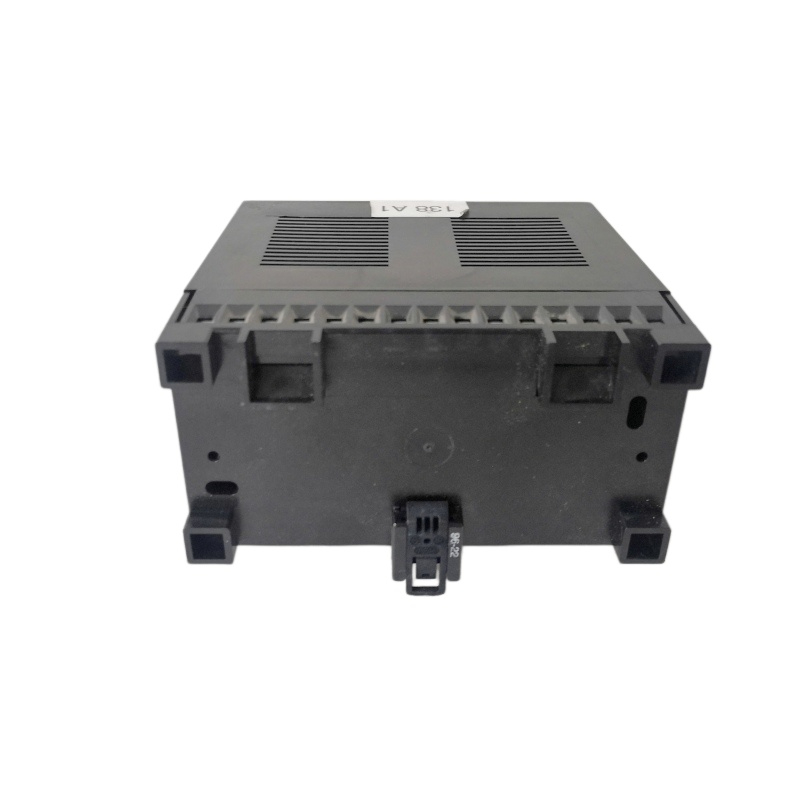

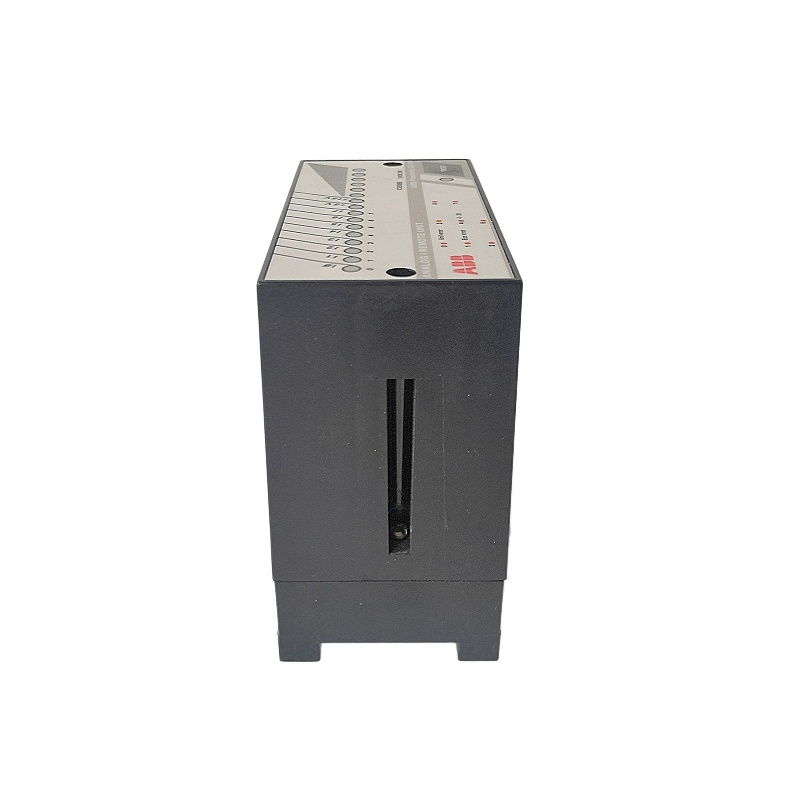

ABB ICSE08B5 FPR3346501R1012

ABB ICSE08B5 FPR3346501R1012 – Overview

ABB ICSE08B5 FPR3346501R1012 is an industrial remote analog I/O module used in ABB PLC/DCS automation systems (notably the AC31 / Procontic CS31 family). It converts field analog signals into digital data for monitoring and control.

---

Basic Product Identification

• Manufacturer: ABB
• Model: ICSE08B5
• Order number: FPR3346501R1012
• Type: Remote analog I/O module
• Power supply: 24 VDC
• Origin: Germany / Switzerland (varies by source)
• Weight: approx. 0.28–0.5 kg

This module belongs to ABB’s legacy AC31 / Procontic automation platform, often used as spare parts for existing installations.

---

Core Function

The module acts as an interface between field sensors and the control system, converting analog signals (temperature, pressure, flow, etc.) into digital data for PLC/DCS processing.

Typical signals handled:

• Temperature transmitters
• Pressure sensors
• Flow meters
• Level sensors
• Other analog instruments

---

Key Technical Features

Analog acquisition capability

• Up to 8 × 12-bit analog input channels
• Input range typically –10 V to +10 V
• Accuracy about ±0.1% full scale
• Sampling rate around 250 Hz

Communication & integration

• Designed for ABB PLC/DCS integration
• Supports industrial protocols (varies by configuration), e.g.:
  • Modbus / RS-485
  • Profibus / fieldbus integration

Industrial reliability

• Operating temperature: –20°C to +60°C
• Designed for harsh industrial environments
• Built for continuous real-time monitoring

---

Main Features & Advantages

1) High-precision signal conversion
Ensures reliable measurement and stable process control.

2) Multi-channel processing
Handles multiple analog signals simultaneously, improving system efficiency.

3) Fast real-time response
Quick detection of signal changes for dynamic industrial processes.

4) Easy system integration
Standardized design reduces installation and maintenance complexity.

---

Typical Applications

Commonly used in:

• Power plants
• Oil & gas
• Chemical plants
• Manufacturing lines
• Environmental monitoring systems
• Robotics and process automation

---

System Compatibility

Works within:

• ABB AC31 PLC systems
• ABB Procontic CS31 automation platform
• Legacy ABB DCS installations

---

Quick Summary

ICSE08B5 FPR3346501R1012 is a classic ABB remote analog I/O module designed to bring field analog signals into industrial control systems with high accuracy and reliability. It is widely used as a spare or replacement module in existing ABB automation systems.
