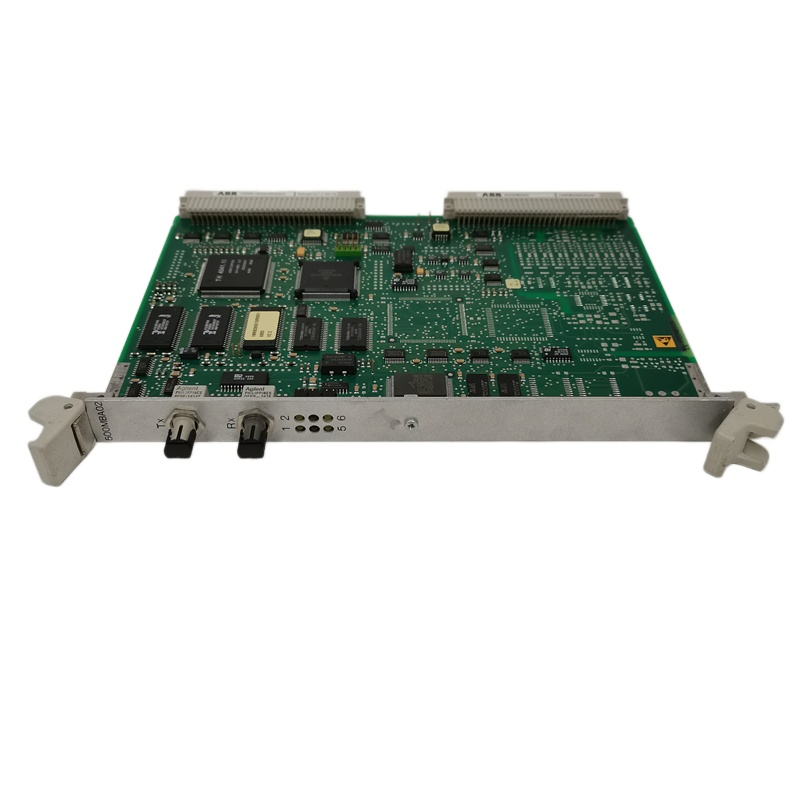

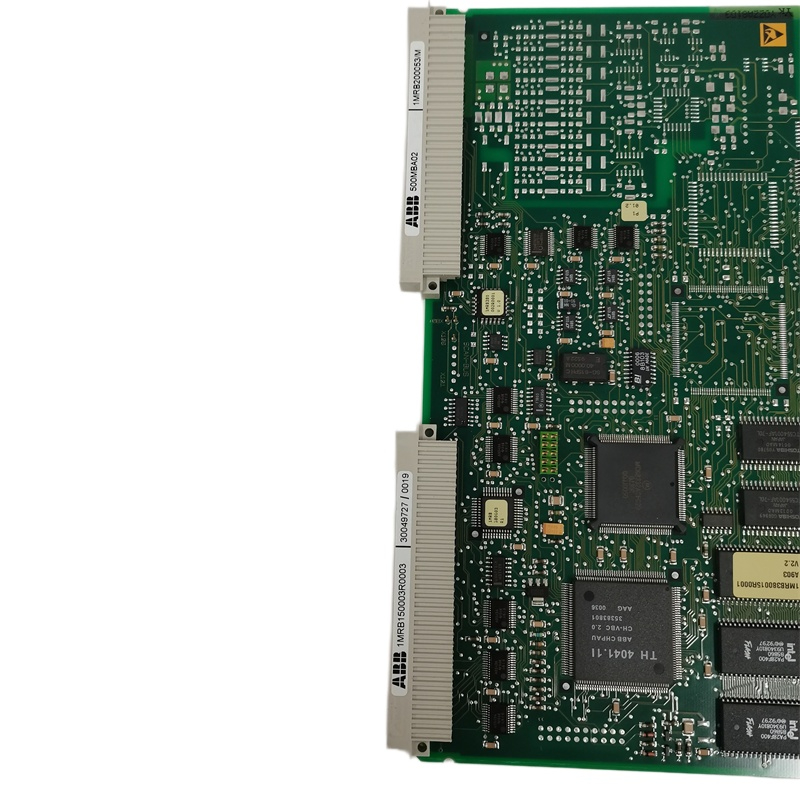

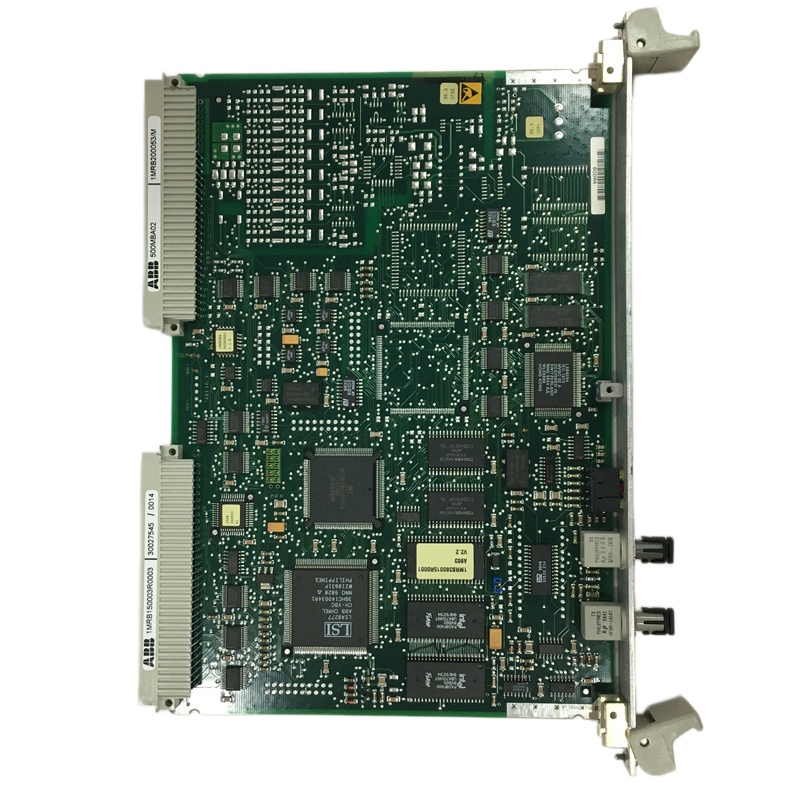

ABB 500MBA02 1MRB150003R0003 is an industrial automation module used in ABB 500-series PLC / control systems.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
ABB 500MBA02 1MRB150003R0003 is an industrial automation module used in ABB 500-series PLC / control systems. It functions mainly as a power / communication interface module that provides stable power and communication connectivity for automation equipment.
Below are the commonly referenced technical specifications.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 500MBA02 |
| Part Number | 1MRB150003R0003 |
| Additional Part | 1MRB200053/M |
| Product Type | Power / communication interface module |
| Series | ABB 500 Series PLC |
| Parameter | Specification |
|---|---|
| Power Supply | 24 VDC |
| Voltage Tolerance | ±10% |
| Power Consumption | ≤ 8 W |
| Isolation Voltage | 2500 VAC (interface isolation) |
The module is designed to provide stable power and interface support for PLC systems operating in industrial automation environments.
| Feature | Details |
|---|---|
| Ethernet Interface | 1 × Ethernet (Modbus TCP/IP) |
| Serial Interfaces | 2 × RS-485 |
| Supported Protocols | Modbus RTU, Modbus TCP/IP, Profibus-DP |
| Data Capacity | Up to 1024 input registers and 1024 output registers |
| Data Format | Supports 32-bit data |
These interfaces allow the module to perform data exchange and protocol conversion between industrial networks.
| Parameter | Specification |
|---|---|
| Operating Temperature | −10 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Protection Rating | IP20 |
| Installation | DIN-rail mounting |
| Parameter | Specification |
|---|---|
| Dimensions | Approx. 120 × 80 × 60 mm |
| Weight | ~300 g |
| Mounting Type | DIN rail / cabinet installation |
Provides stable DC power supply and system interface support for ABB control systems.
Enables industrial communication protocol conversion and integration.
Ensures reliable data transmission between PLC, field devices, and industrial networks.
Includes overload and short-circuit protection for system safety.
✅ Typical Applications
Industrial automation control systems
Process control (oil & gas, chemical plants)
Power and energy management systems
Manufacturing production lines
