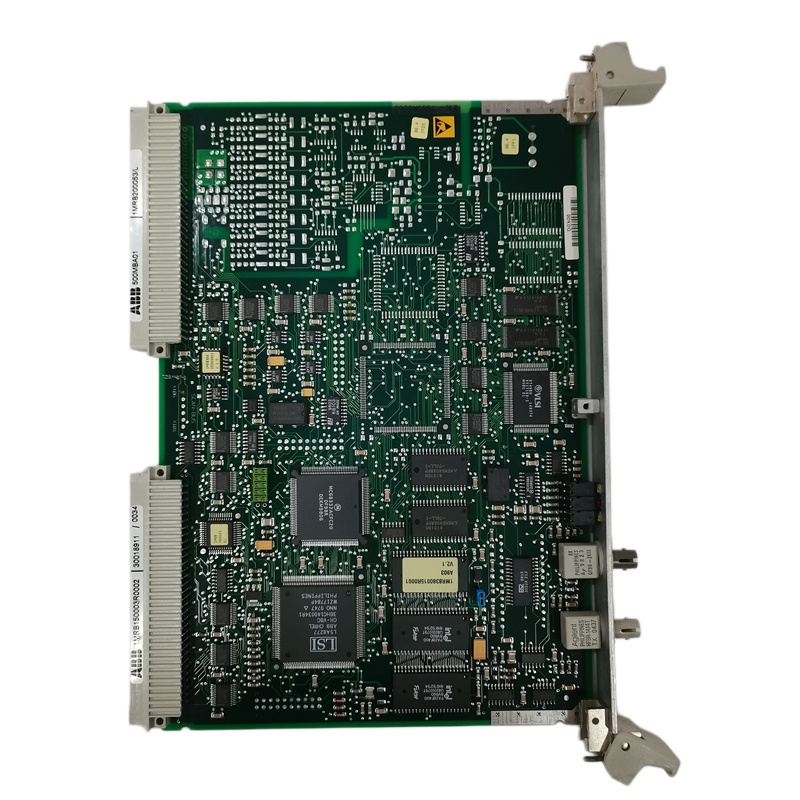

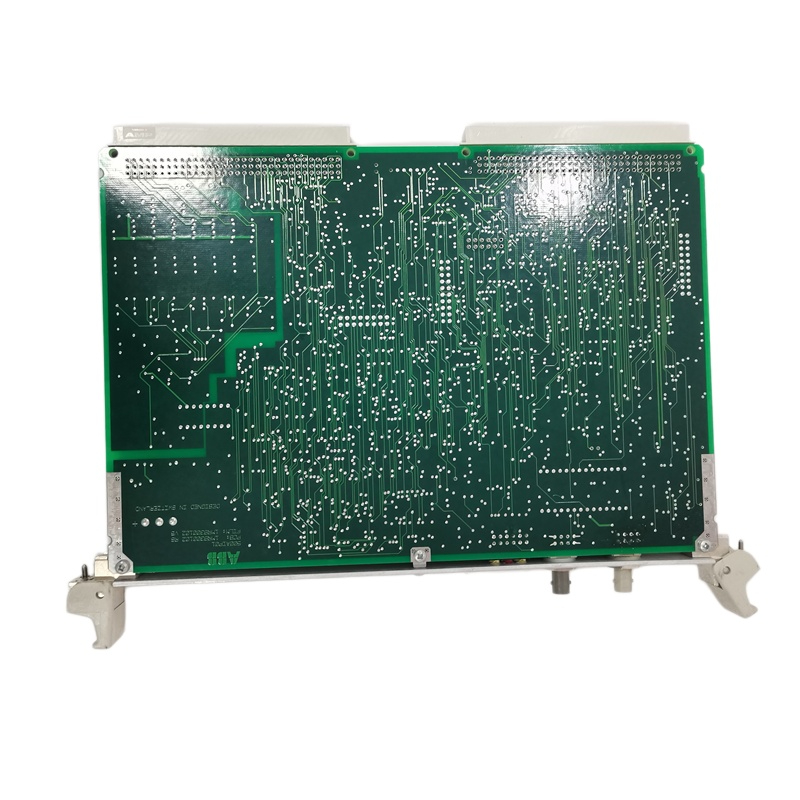

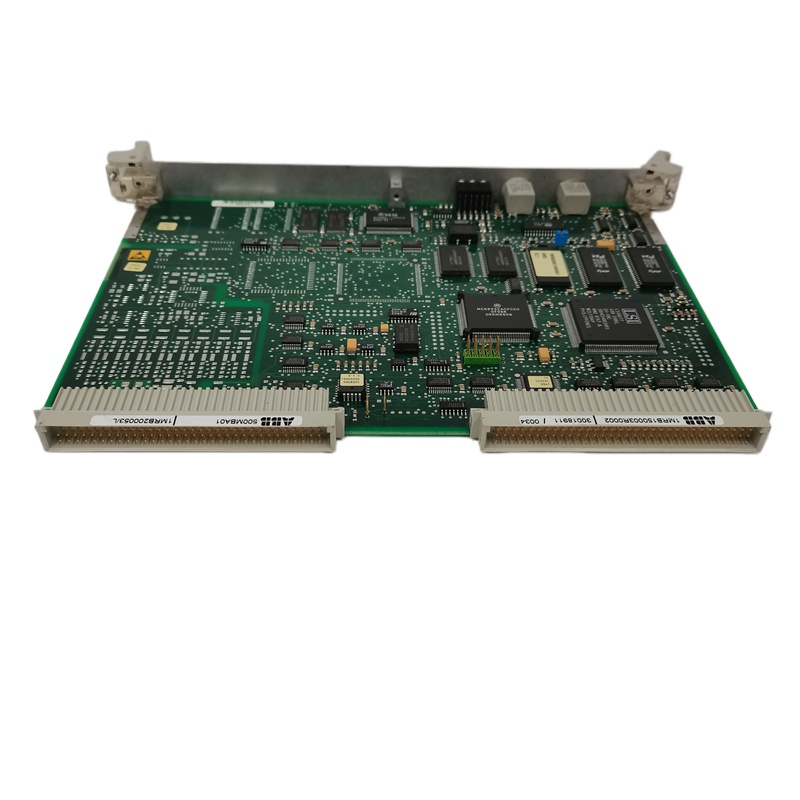

ABB 500MBA01 1MRB150003R0002 is designed with dual-redundant architecture and watchdog protection, ensuring continuous and fail-safe industrial operation.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
Here are the technical specifications for ABB 500MBA01 1MRB150003R0002, an industrial control/interface module used in ABB automation and DCS/PLC environments.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 500MBA01 |
| Part Number | 1MRB150003R0002 |
| Alternate Code | 1MRB200053/L |
| Product Type | Industrial Control Card / Control Interface Module |
| System Compatibility | ABB automation / DCS / PLC platforms |
| Parameter | Value |
|---|---|
| Processor | 32-bit RISC processor |
| CPU Frequency | 400 MHz |
| Memory | 256 MB DDR3 (ECC) |
| Isolation Voltage | 2500 V AC (channel-to-system) |
| Hot-Swap Capability | Supported |
| Diagnostic Indicators | Built-in LED status indicators |
The module is designed with dual-redundant architecture and watchdog protection, ensuring continuous and fail-safe industrial operation.
| Type | Channels |
|---|---|
| Digital I/O | 32 isolated channels |
| Analog Inputs | 16 channels |
| Analog Resolution | 16-bit |
These interfaces allow the module to collect signals from field devices such as sensors, switches, and transmitters.
| Interface | Protocol |
|---|---|
| Industrial Fieldbus | PROFIBUS-DP |
| Ethernet / Network | Modbus TCP/IP |
| Serial / Field Communication | Modbus RTU |
These communication capabilities allow seamless integration with PLC, DCS, and SCADA systems.
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 VDC (±10%) |
| Power Consumption | 5–6 W typical |
| Parameter | Value |
|---|---|
| Operating Temperature | −40 °C to +70 °C |
| Protection Rating | IP20 |
| Isolation | Galvanic isolation for signal protection |
The wide temperature range makes it suitable for harsh industrial environments.
| Parameter | Value |
|---|---|
| Dimensions | approx. 120 × 80 × 25–40 mm |
| Mounting | Control cabinet installation |
| Cooling | Passive / natural convection |
UL 508
IEC 61131-2
Industrial EMC compliance
High-performance 400 MHz industrial processor
Hot-swappable module design
Galvanic isolation (2500 V) for signal protection
Multi-protocol industrial communication
Built-in diagnostics and watchdog protection
Designed for continuous 24/7 operation in industrial automation systems
✅ Typical Applications
Distributed Control Systems (DCS)
PLC automation platforms
Process industries (oil & gas, power, chemical plants)
Data acquisition and industrial communication gateways
