Schneider 140XBP01000 rack backplane product

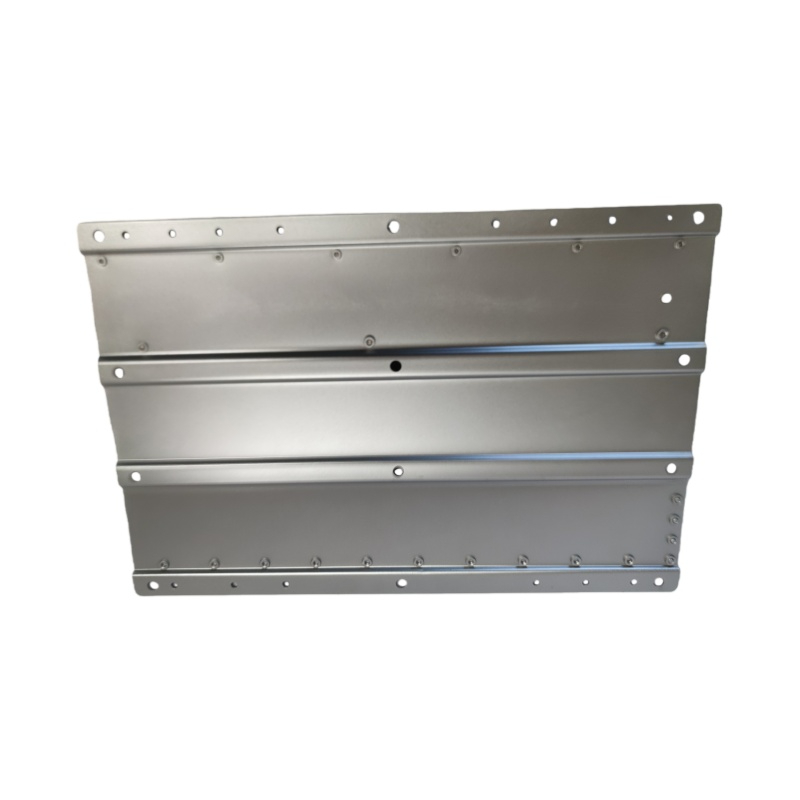

Schneider 140XBP01000 is a rack backplane product in the Modicon Quantum series from Schneider Electric.

1. Product Positioning and Function

Core Role:
It serves as the “rack base” or “communication hub” of the entire Modicon Quantum PLC system. All I/O modules, CPU processor modules, and communication adapter modules must be inserted into this backplane for physical connection and internal communication.

Key Functions:

• I/O Expansion:
  By installing various input/output modules (such as discrete and analog modules), the PLC’s available input and output points can be expanded.

• Modular Assembly:
  Supports flexible system configuration and on-site maintenance. Modules can be quickly replaced or expanded simply by plugging and unplugging them.

2. Main Technical Specifications

• Model Number: 140XBP01000

• Dimensions: Approximately 482.6 mm × 216.5 mm × 88.9 mm

• Number of Slots: Provides 10 standard backplane slots, each capable of accommodating one I/O module or adapter module

Operating Environment:

• Temperature Range: –20°C to +60°C

• Protection Rating: IP20, suitable for installation inside standard industrial control cabinets

3. Compatibility and Applications

• Compatible Series: Specifically designed for the Modicon Quantum series and compatible with all CPUs and I/O modules in this range (such as 140CPU, 140DDI, 140CPS, etc.).

• Application Fields:
  Widely used in petrochemical industries, power systems, water treatment facilities, automated production lines, and other industrial environments requiring complex control logic and large-scale I/O capacity.

Conclusion

The Schneider 140XBP01000 is not a standalone controller, but a critical structural component of the Modicon Quantum system.

When designing or maintaining a Modicon Quantum PLC system, if multiple modules need to be securely installed into a unified backplane for structured integration and communication, the 140XBP01000 is the essential rack foundation.
