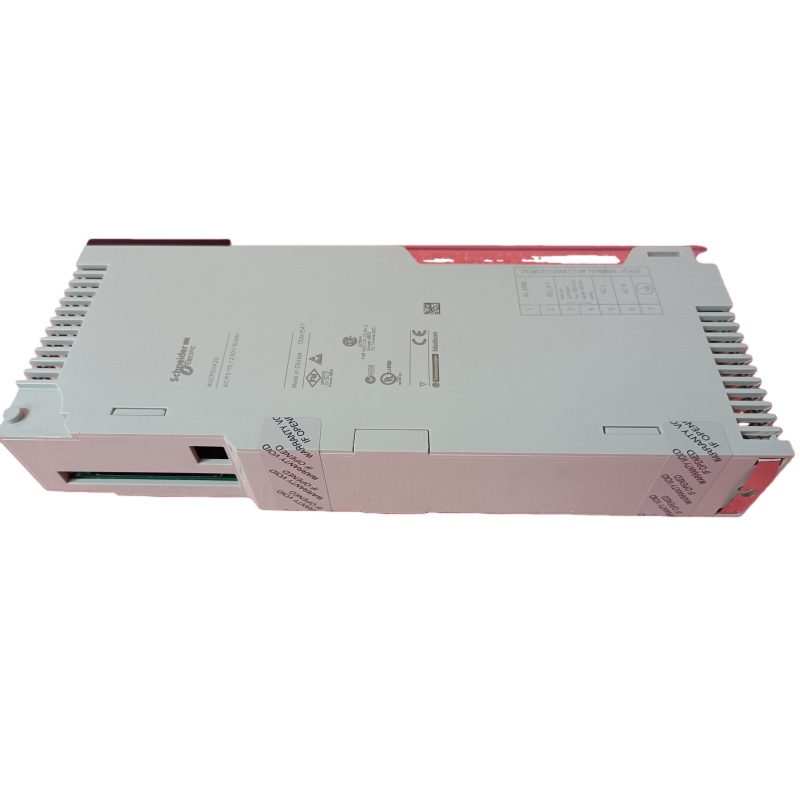

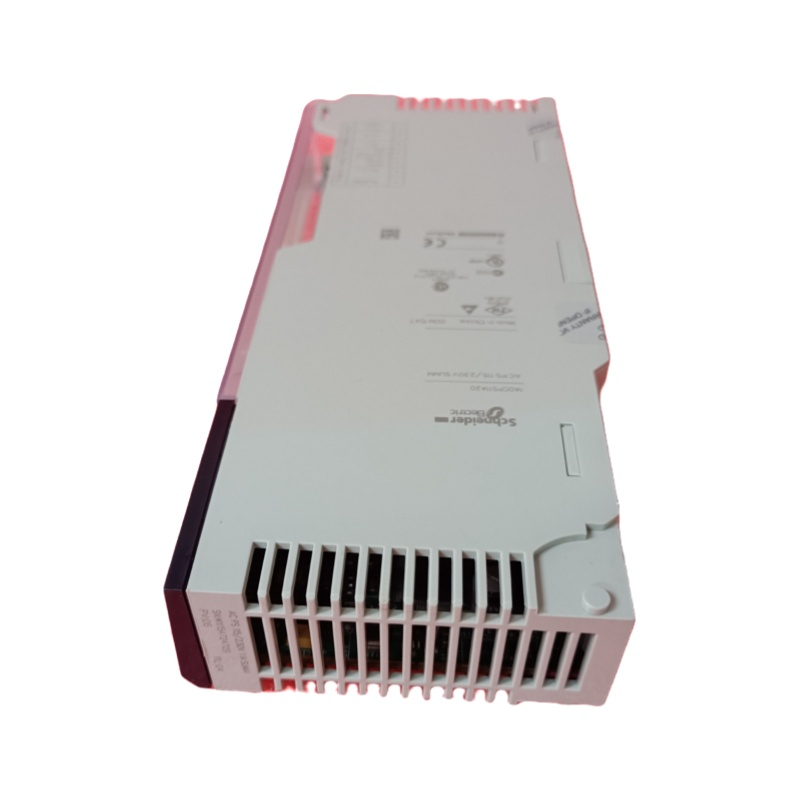

Schneider 140CPS11420 power supply module

Schneider 140CPS11420 is a key power supply module in the Modicon Quantum PLC series from Schneider Electric.

This module is primarily designed to provide stable and reliable DC power to the PLC system and its connected I/O modules, communication modules, and other peripheral devices, ensuring continuous and stable operation of the entire automation system.

1. Core Functions

Power Supply:
Converts 115V/230V AC input into DC output, typically providing 5.1V DC or 24V DC for internal use within the PLC system.

Protection Features:
Equipped with multiple safety mechanisms, including overvoltage protection, overload protection, short-circuit protection, and overtemperature protection. In abnormal conditions, the module can automatically shut down the power supply to protect the system.

Fault Warning:
Supports power fault warning output. When a power anomaly occurs, it can promptly notify the user or host system for timely intervention.

2. Technical Specifications

Input Voltage:
Supports 115V (93–132V) / 230V (170–276V) AC input, or a wide range of 100–120 / 200–240 VAC.

Output Specifications:
Output voltage is 5.1V DC (or 24V DC, depending on the specific configuration), with an output current range of approximately 10–20A.

Power Consumption:
Approximately 5W (low power consumption).

Environmental Adaptability:
Wide operating temperature range (-40°C to 85°C), suitable for use in harsh industrial environments.

3. Application Scenarios

This module is typically installed inside the PLC rack and is mainly used for:

Industrial Automation:
Providing stable power for production lines, process control systems, and related equipment.

System Power Supply:
Supplying power to PLC controllers as well as connected sensors, actuators, and other field devices.

In summary, Schneider 140CPS11420 is a power supply solution specifically designed for the Modicon Quantum PLC series. Its stability and comprehensive protection features make it one of the key components ensuring the continuous and reliable operation of industrial automation systems.
