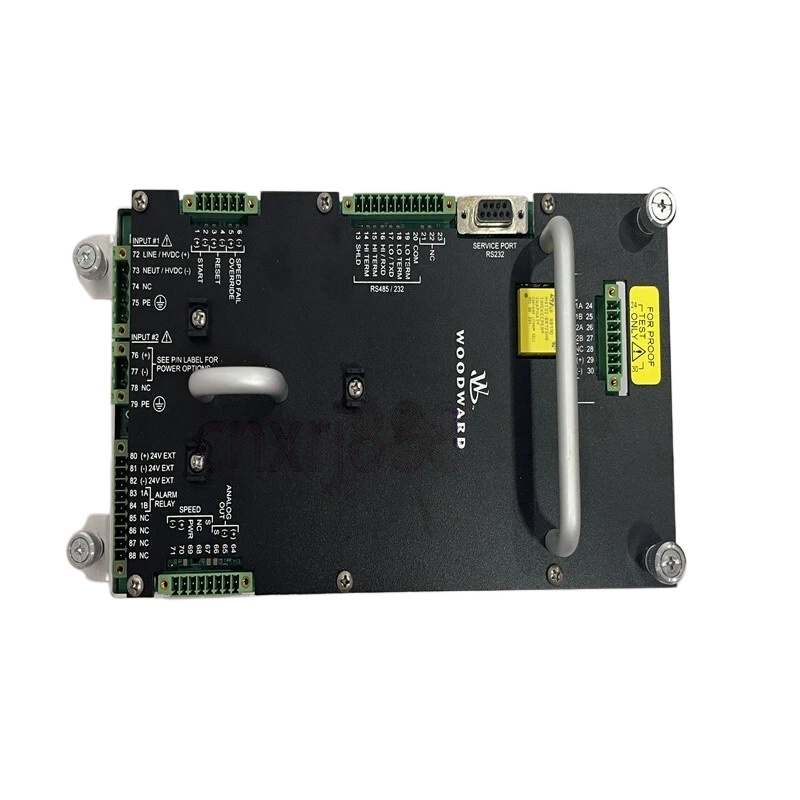

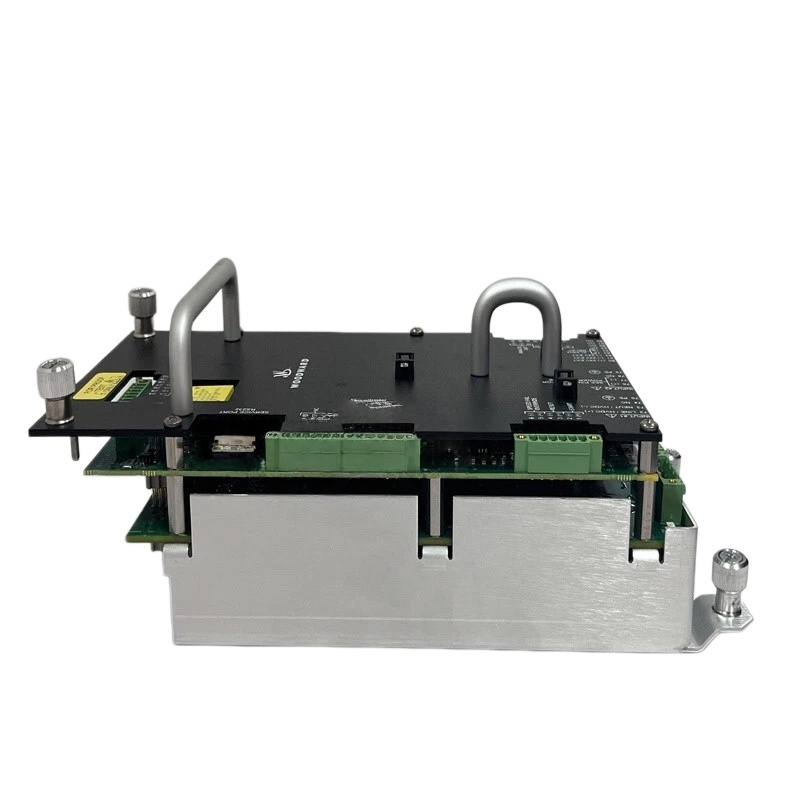

When operating high-value turbomachinery in industrial power generation, oil and gas processing, or marine propulsion, system reliability isn't just a goal—it's a non-negotiable requirement. Unplanned downtime can lead to catastrophic production losses, exorbitant repair costs, and significant safety hazards. In this demanding environment, relying on a single control path is a risk few operators can afford. This is precisely where the WOODWARD 5437-1119 Backup Module proves its indispensable worth. It’s a sophisticated piece of engineering that provides robust, redundant backup for primary control modules, ensuring that your critical processes continue to run smoothly, even in the face of a primary system fault.
Core Functionality: Understanding Its Protective Role
At its heart, the WOODWARD 5437-1119 is designed to act as a vigilant, fully automated sentinel. It interfaces directly with a primary control module, such as the Woodward 5437-1005, continuously monitoring its health and status. The module operates on a straightforward but critical principle: redundancy. It remains in a hot-standby mode, ready to assume command within milliseconds should it detect a failure, communication loss, or out-of-tolerance condition in the primary controller. This seamless switchover happens without operator intervention, maintaining process stability and preventing hazardous trips that could shut down an entire facility.
Key Features and Technical Capabilities
What sets the 5437-1119 apart is its intelligent design. It’s not merely a duplicate piece of hardware; it’s engineered for seamless integration and fail-safe operation.
-
Redundant Processor Architecture: The module features its own independent processor and I/O (Input/Output) circuitry. This ensures that, upon takeover, it executes the same, identical control logic and tuning parameters as the primary unit, guaranteeing continuity of operation.
-
Synchronized Data and Diagnostics: The backup module constantly receives updated operational data from the primary controller. This includes critical process variables, setpoints, and tuning parameters. This live synchronization ensures there is no "learning period" or performance lag at the moment of switchover.
-
Hot-Swap Capability: Many configurations allow for the hot-swapping of the backup module. This means maintenance or replacement can be performed while the system remains online and under the control of the primary module, eliminating planned downtime for service.
-
Advanced Diagnostics: The module provides clear, comprehensive diagnostic information accessible via Woodward’s Toolbox software. This allows engineers to quickly assess the health of both primary and backup systems, log events, and perform predictive maintenance.
Critical Applications Across Industries
The robustness of the WOODWARD 5437-1119 makes it a staple in industries where failure is not an option.
-
Power Generation: In gas turbine or steam turbine power plants, it ensures continuous electrical supply, protecting the grid from instability caused by sudden generator trips.
-
Oil & Gas: On offshore platforms and in pipeline compressor stations, it prevents dangerous process upsets and ensures the safe, continuous flow of hydrocarbons.
-
Marine & Naval: For main propulsion and ship-service power generation, it provides mission-critical reliability for vessels that cannot afford to lose power at sea.
Implementation and Best Practices
Successfully integrating the 5437-1119 requires meticulous planning. The backup module must be correctly configured with identical application software and tuned parameters. Proper wiring, adhering to Woodward’s installation guidelines, is paramount to avoid ground loops and signal interference. Regular testing of the backup takeover function during scheduled outages is a best practice that validates system integrity. Partnering with experienced system integrators or certified Woodward service technicians is highly recommended for initial setup and complex retrofits.
The Ultimate Investment in Operational Continuity
While the WOODWARD 5437-1119 Backup Module represents a tangible upfront investment, its value is measured in risk mitigation. It transforms a single point of failure into a resilient, fault-tolerant control architecture. For plant managers and reliability engineers, it’s more than a spare part; it’s an insurance policy against crippling downtime, a tool for enhancing safety, and a strategic asset that protects both capital equipment and long-term profitability. In the high-stakes world of industrial control, having a reliable backup isn't just smart engineering—it's essential business practice.
