ABB 3ADT311500R1

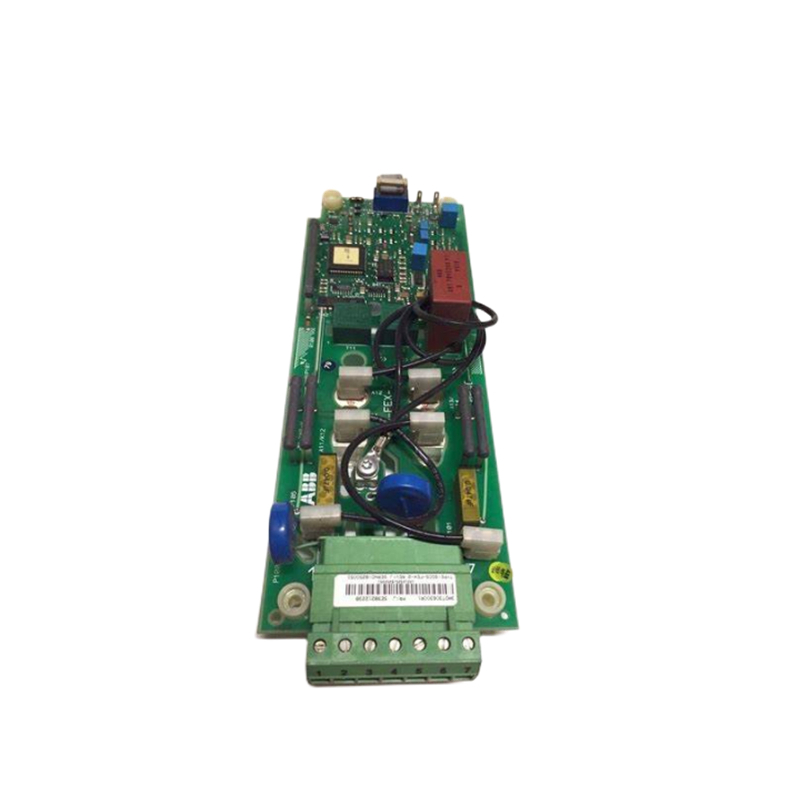

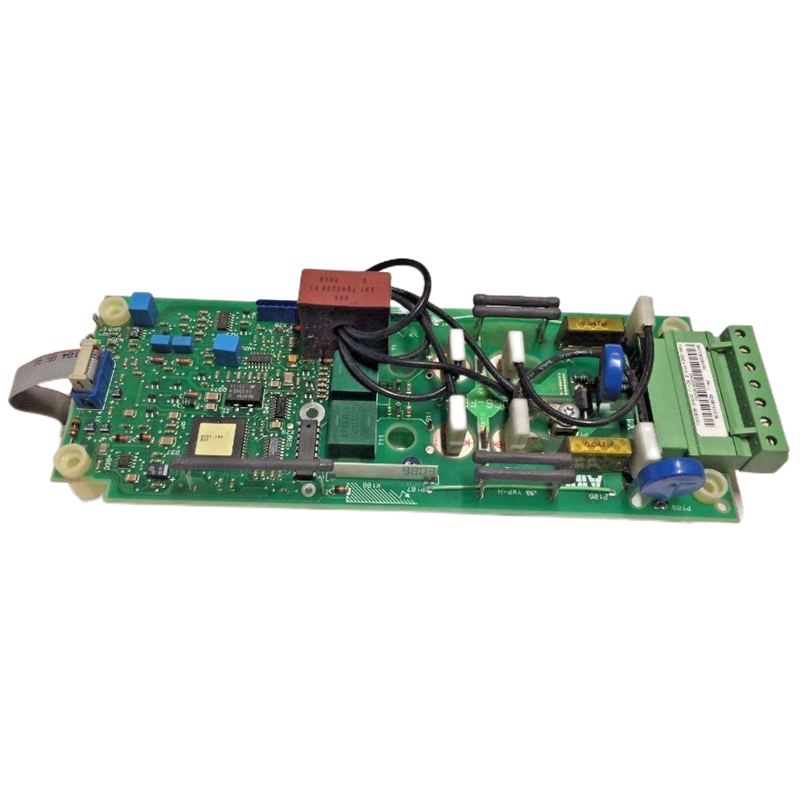

ABB 3ADT311500R1 is an SDCS-FEX-2A field exciter board used in ABB DC drive systems, mainly for DCS500 / DCS600 / DCS800 series DC drives. It functions as a field excitation control and power supply circuit board for DC motor control applications.
Product Description
- Manufacturer: ABB
- Part Number: 3ADT311500R1
- Type: SDCS-FEX-2A
- Module Category: Field Exciter / Power Supply Circuit Board
- Application: ABB DC drive excitation systems
- Compatible Systems: ABB DCS500, DCS600, DCS800 DC drives
Technical Specifications
- Input Voltage Range: 110 VAC (-15%) to 500 VAC (+10%), single phase
- Isolation Voltage: Up to 600 VAC
- Output: Excitation power supply for DC motor field circuits
- Board Type: Open-frame electronic control/power board
- Dimensions (approx.): 241 × 95 × 63 mm
- Weight: Approx. 0.3–0.6 kg depending on configuration/source listing
Main Functions
- Provides controlled field excitation voltage for DC motors
- Supports fast-response field current regulation
- Interfaces with ABB DC drive control electronics
- Ensures stable motor field operation during speed and torque control
Typical Applications
ABB 3ADT311500R1 is widely used in:
- Steel and metal processing equipment
- Paper and pulp machinery
- Mining conveyor systems
- Hoists and cranes
- Industrial rolling mills
- Large DC motor drive systems
Replacement & Maintenance Notes
- This board is a critical component in ABB DC drive excitation circuits.
- When replacing, verify:
- Exact part number (3ADT311500R1)
- Drive series compatibility (DCS500/DCS600/DCS800)
- Firmware and hardware revision where applicable
- Connector and wiring configuration
Conclusion
The ABB 3ADT311500R1 SDCS-FEX-2A is a reliable field excitation control board designed for ABB industrial DC drives. It plays an essential role in maintaining accurate field current control and stable DC motor performance in demanding industrial environments.
