TRICONEX IMFF4703X Fiber Optic Interface

The IMFF4703X is designed to provide high-speed, noise-immune fiber-optic communication between Triconex controllers and remote I/O or expansion chassis.

Get Instant Quote
Product Details

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

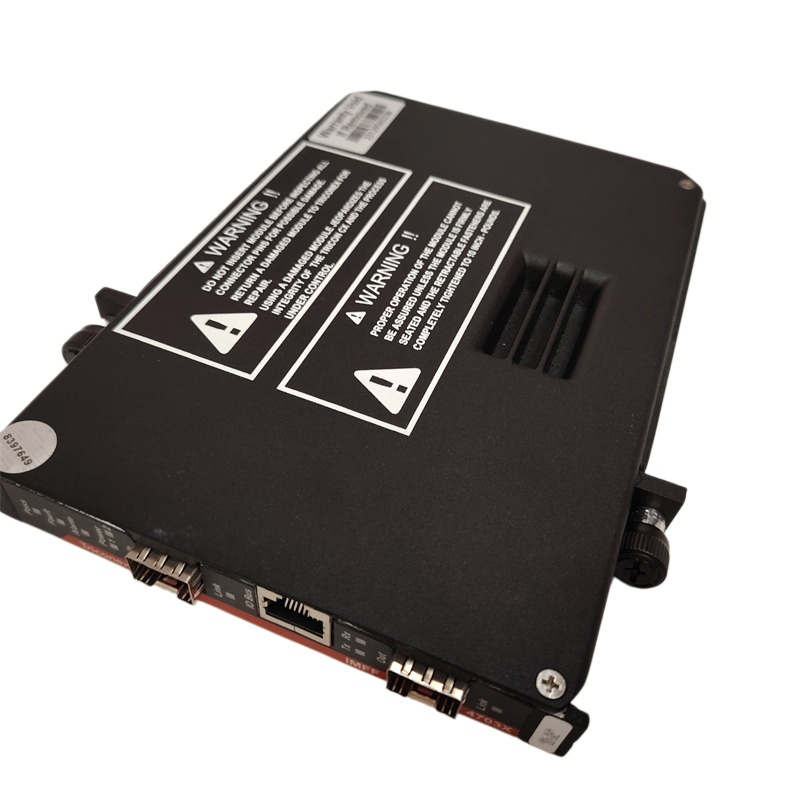

TRICONEX IMFF4703X

Overview

The IMFF4703X is designed to provide high-speed, noise-immune fiber-optic communication between Triconex controllers and remote I/O or expansion chassis. It is typically deployed in safety-critical environments where redundancy and fault tolerance are essential.

Manufacturer: Schneider Electric – Triconex
Series: IMFF4700
Module Type: Fiber Optic Interface / I/O Bus Interface
System: Triconex TMR (Triple Modular Redundancy)

Key Functions

1) Fiber-optic communication interface

  • Provides high-speed data transfer via multimode fiber optics.
  • Immune to electrical noise and EMI — ideal for harsh industrial environments.
  • Supports communication between main chassis and expansion racks.

2) TMR redundancy support

  • Fully compatible with Triple Modular Redundant architecture.
  • Maintains communication even if one module or link fails.
  • Enables automatic failover and diagnostics.

3) Safety-critical system reliability

  • Used in SIL3 safety systems.
  • Continuous health monitoring and diagnostic feedback.
  • Hot-swappable for maintenance without shutdown.

Technical Highlights

Parameter Details
Communication type Fiber optic (multimode / optional single-mode)
Data rate Up to ~10 Mbps
Operating voltage 12–24 VDC
Certifications CE, UL, ATEX
Diagnostics Front LEDs for link/active/fault
Installation Main or expansion chassis communication slot

Sources confirm the module is engineered for high-performance industrial automation and safety systems requiring minimal downtime.

Typical Applications

The IMFF4703X is commonly used in industries where process safety is critical:

  • Oil & Gas platforms and refineries
  • Chemical & petrochemical plants
  • Power generation facilities
  • LNG terminals
  • Heavy industrial automation systems

Why it’s important in a Triconex system

In a Triconex SIS, the IMFF4703X acts as the communication backbone between controllers and remote I/O. Without reliable fiber communication, redundant safety logic cannot function properly.

Key benefits:

  • Eliminates single points of failure
  • Ensures deterministic real-time communication
  • Improves system availability and uptime
