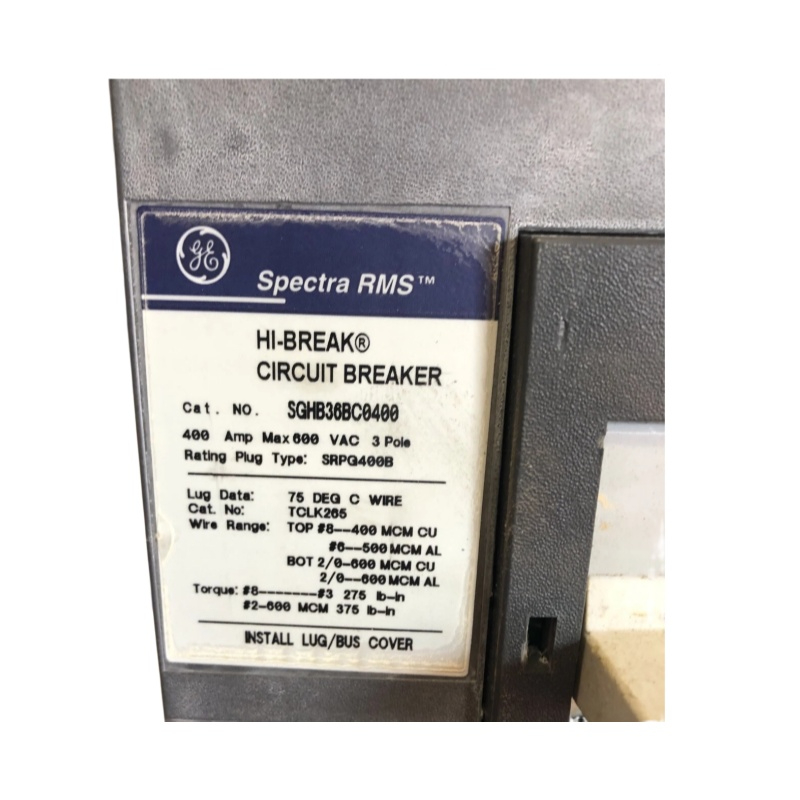

GE SGHB36BC0400

The GE SGHB36BC0400 is a General Electric (GE) Spectra Series SGH molded case circuit breaker (MCCB) designed for industrial and commercial power distribution applications. It is a high-capacity, solid-state trip circuit breaker with electronic protection functions.

1. Basic Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Product Series	Spectra® SGH
Model Number	SGHB36BC0400
Breaker Type	Molded Case Circuit Breaker (MCCB)
Frame Size	600 A frame
Continuous Current Rating	400 A
Poles	3-pole
Voltage Rating	600 VAC
Interrupting Rating	35 kA @ 480 VAC
Connection Type	Bolt-on
Trip Unit	MicroVersaTrip® Plus electronic trip
Protection Function	LIGT (Long-Time, Instantaneous, Ground Fault, Trip Target)

---

2. Product Code Breakdown

SGHB36BC0400

• S – Spectra Series
• G – GE molded case breaker family
• H – High interrupting rating (35 kA class)
• B – Standard frame construction
• 3 – Three poles
• 6 – 600 V class
• B – MicroVersaTrip Plus trip unit
• C – LIGT protection configuration
• 0400 – 400 A trip rating

---

3. Protection Features

The SGHB36BC0400 uses an electronic trip system providing:

• Long-Time (L) overload protection
• Instantaneous (I) short-circuit protection
• Ground Fault (G) protection
• Trip Target (T) indication for fault diagnostics

This makes it suitable for feeders, switchboards, motor control centers, and industrial distribution systems where adjustable protection is required.

---

4. Structural Composition

Main components include:

• Molded insulating housing
• Main current-carrying contacts
• Arc interruption chamber
• Electronic MicroVersaTrip Plus trip module
• Current sensors
• Mechanical operating mechanism
• Bolt-on line/load terminals (lug kits may be supplied separately depending on configuration)

---

5. Typical Applications

GE SGHB36BC0400 breakers are commonly used in:

• Industrial power distribution panels
• Low-voltage switchgear
• Factory automation systems
• Data centers
• Commercial buildings
• Motor and feeder protection systems
• Electrical retrofit and replacement projects

---

6. Key Features

• High reliability GE Spectra platform
• Compact 600 A frame design
• Adjustable electronic protection
• Ground fault protection capability
• Suitable for reverse-feed applications
• UL/CSA industrial breaker design

---

7. Conclusion

The GE SGHB36BC0400 is a 400 A, 3-pole, 600 V Spectra Series MCCB with a MicroVersaTrip Plus LIGT electronic trip unit and 35 kA interrupting capability at 480 V. It is designed for demanding industrial and commercial electrical distribution applications requiring dependable overload, short-circuit, and ground-fault protection.
