GE TK4VF36 intended molded

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

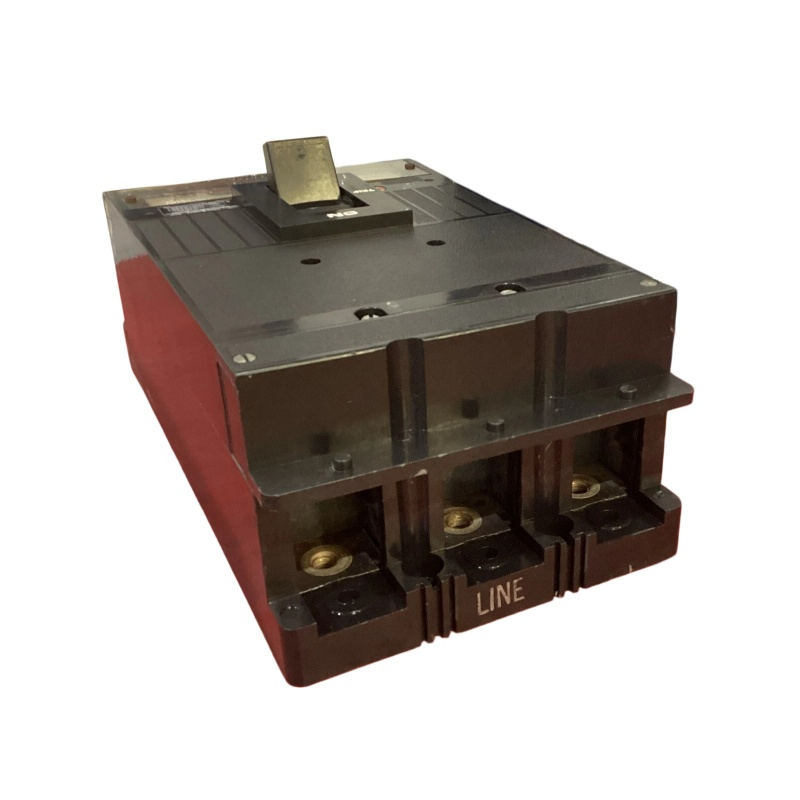

GE TK4VF36

General Electric TK4VF36 is a GE Molded Case Circuit Breaker (MCCB) from the TK4V series. It is designed for low-voltage power distribution and circuit protection applications.

Basic Specifications

Parameter	Description
Manufacturer	General Electric (GE)
Model	TK4VF36
Product Type	Molded Case Circuit Breaker (MCCB)
Series	TK4V
Number of Poles	3 poles
Rated Voltage	600 VAC class
Frame Type	TK4V / Model 6 frame family
Application	Industrial power distribution, feeders, protection circuits



Product Features

• Molded case construction
  Provides mechanical protection and insulation for internal switching and protection components.
• Three-phase protection
  The 3-pole configuration is suitable for three-phase electrical systems.
• High-voltage low-voltage distribution use
  Designed for industrial switchboards, motor control centers, and feeder protection systems.
• Replaceable/retrofit capability
  TK4V breakers are part of GE’s established MCCB platform and are commonly used as replacement units in existing installations.

Typical Applications

• Industrial distribution panels
• Factory automation power systems
• Motor feeders
• Control cabinets
• Commercial electrical distribution equipment
• Generator and transformer secondary protection

Related GE TK4V Series Information

The TK4V family includes larger frame MCCBs and accessories such as trip units, current sensors, and protection modules. GE documentation identifies TK4V as a Model 6 molded case breaker family compatible with MicroVersaTrip™ trip unit systems.

Notes for Replacement

When replacing a TK4VF36, verify:

• Trip rating (ampere setting)
• Interrupting capacity (AIC rating)
• Trip unit type
• Terminal/lug configuration
• Mounting accessories
• Coordination requirements with upstream/downstream breakers

Exact ampere rating and interrupting capacity may depend on the complete catalog configuration, not only the base catalog number TK4VF36.

Conclusion:
The GE TK4VF36 is a rugged 3-pole 600 V class molded case circuit breaker intended for industrial and commercial power distribution protection. It is commonly encountered in legacy GE electrical switchgear and MCC applications.
