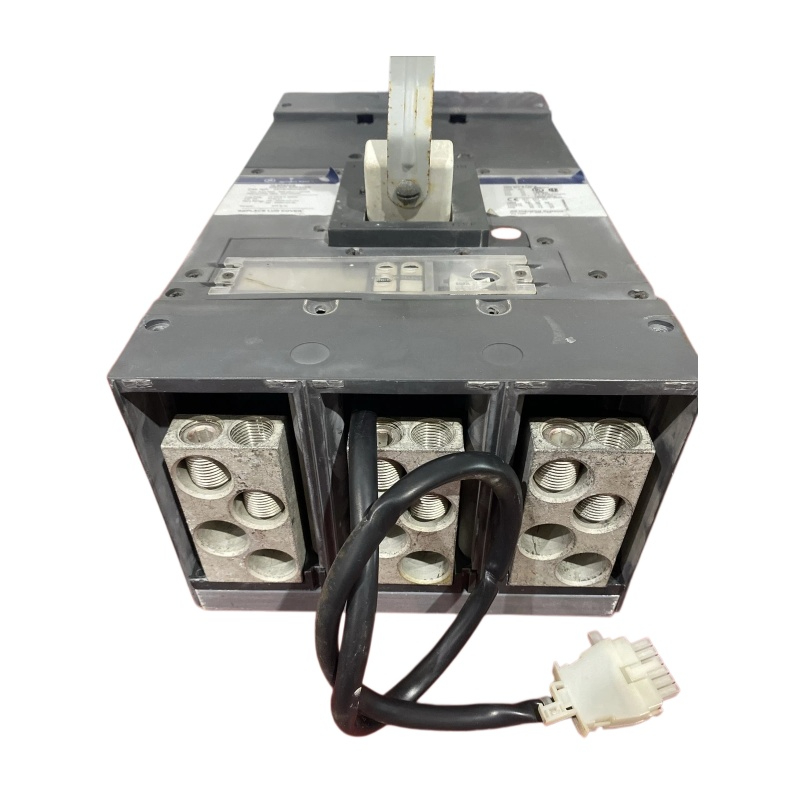

GE SKHB36BD0800
General Electric (GE) SKHB36BD0800 is a Spectra Series molded case circuit breaker (MCCB) designed for industrial power distribution and protection applications. It is part of GE’s SKHB frame circuit breaker family, featuring a solid-state electronic trip unit with advanced protection functions.
Product Description
- Manufacturer: GE (General Electric)
- Model: SKHB36BD0800
- Product Type: Molded Case Circuit Breaker (MCCB)
- Series: Spectra Series SKHB
- Frame Size: SKHB
- Rated Current: 800 A
- Rated Voltage: 600 VAC
- Poles: 3 Pole (3P)
- Interrupting Rating: 50 kAIC @ 480 VAC
- Connection Type: Bolt-on
- Trip Unit: MicroVersaTrip Plus electronic trip system
- Protection Function: LSIGT (Long-Time, Short-Time, Instantaneous, Ground Fault, Trip Target)
Technical Features
1. Advanced Electronic Protection
- Uses solid-state sensing technology for accurate current monitoring.
- Provides adjustable protection settings for overload, short circuit, and ground fault conditions.
- LSIGT protection improves system reliability and selectivity.
2. High Current Capacity
- Supports continuous current ratings up to 800 A.
- Suitable for heavy-duty industrial electrical distribution systems.
- Designed for 600 V class low-voltage applications.
3. Flexible Industrial Installation
- 3-phase configuration.
- Bolt-on mounting design.
- Suitable for main feeders, motor control centers, switchboards, and industrial panels.
Application Areas
GE SKHB36BD0800 is commonly used in:
- Industrial power distribution systems
- Manufacturing plants
- Oil & gas facilities
- Power generation auxiliary systems
- Data centers and infrastructure facilities
- Large motor and equipment protection systems
- Switchgear and MCC assemblies
Advantages
- High interrupting capacity for demanding electrical environments
- Reliable GE Spectra Series protection platform
- Electronic trip accuracy compared with thermal-magnetic breakers
- Supports coordination and selective protection strategies
- Suitable for replacement and retrofit applications
Conclusion
The GE SKHB36BD0800 is a high-capacity 800A Spectra Series electronic MCCB designed for reliable protection of industrial electrical systems. With its 600V rating, 3-pole configuration, 50kA interrupting capacity, and MicroVersaTrip Plus LSIGT protection, it is widely applied in critical power distribution and industrial automation environments.
