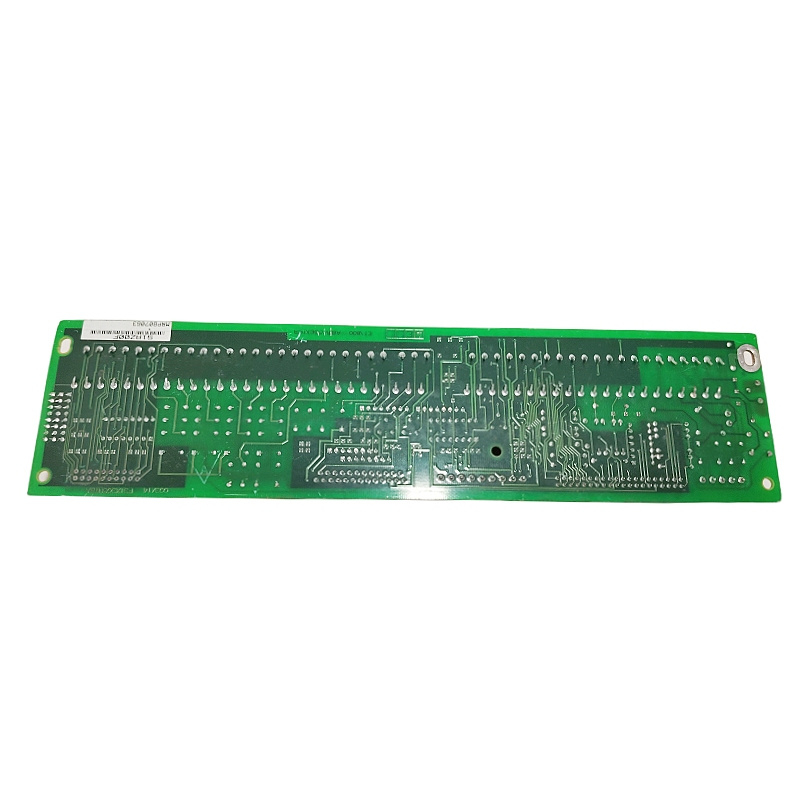

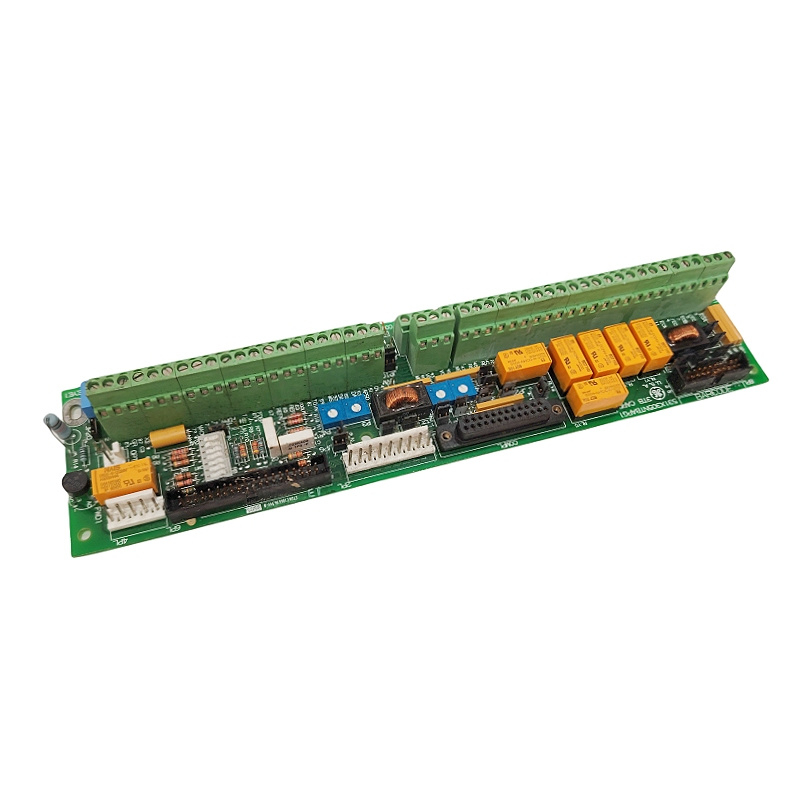

GE 531X305NTBAPG1

The GE 531X305NTBAPG1 is an NTB/3TB Terminal Board designed for GE 531X Series and EX2000 excitation/drive control systems. It is commonly used in industrial automation, turbine control, and drive cabinet applications to provide signal interfacing, relay outputs, encoder connections, and power distribution.

Key Features

• Supports low-level analog I/O and digital control interfacing
• Provides serial and relay output connections
• Compatible with 5V and 15V encoder interfaces through jumper settings
• Includes regulated and unregulated power outputs:
  • +5 VDC
  • +15 VDC
  • 24 VDC
  • 120 VAC
• Equipped with seven Form A/Form C relay outputs rated for 120 VAC
• Contains potentiometers for analog signal scaling
• Designed for GE EX2000 excitation systems and 531X replacement drive boards

Typical Applications

• Turbine and excitation control systems
• Industrial drive cabinets
• Power generation automation
• Process control systems
• Encoder and relay interface management

Technical Overview

Specification	Details
Manufacturer	GE / General Electric
Model Number	531X305NTBAPG1
Product Type	NTB/3TB Terminal Board
Series	531X / EX2000
Encoder Support	Differential A-quad-B encoder
Relay Outputs	7 relay outputs
Regulated Power	+5 VDC, +15 VDC
Unregulated Power	24 VDC, 120 VAC
Installation	Drive or exciter cabinet
