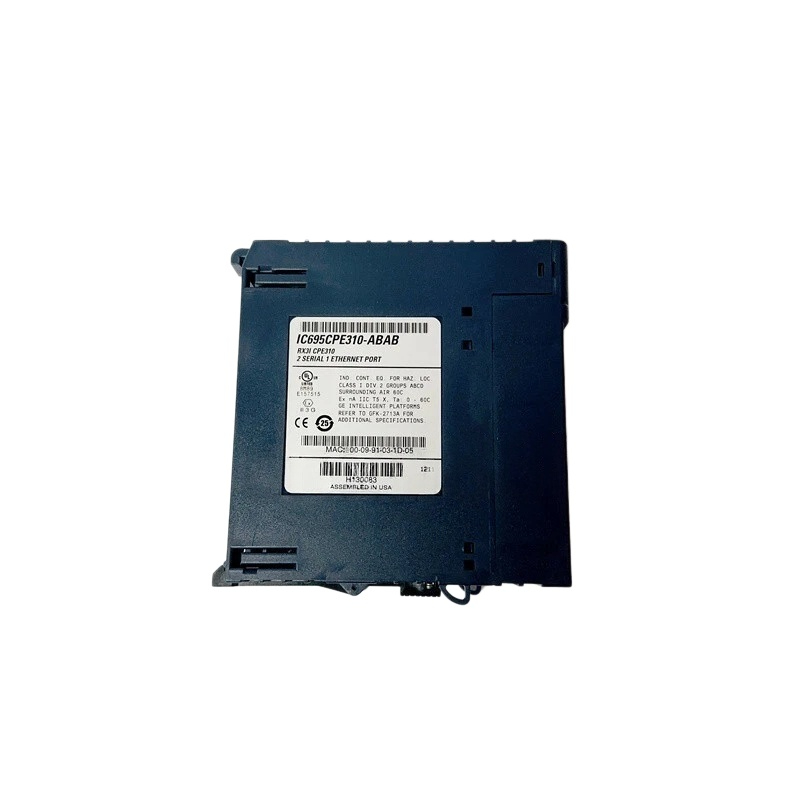

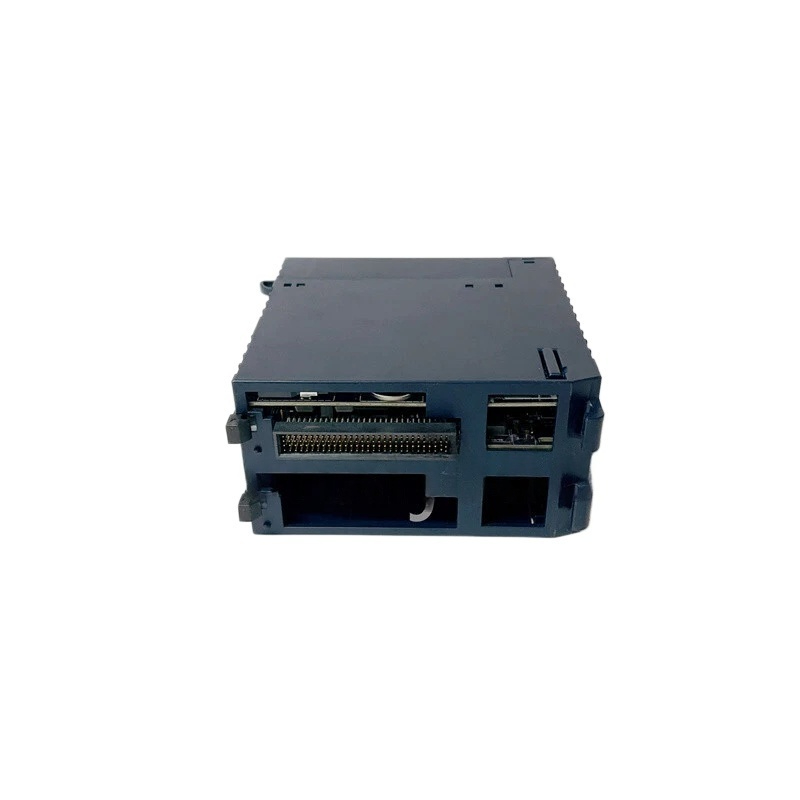

EMERSON IC695CPE310-ABAB high-performance CPU module

The IC695CPE310-ABAB is a high-performance CPU module in the PACSystems RX3i programmable automation controller (PAC) family, originally developed by GE Intelligent Platforms and now supported by Emerson. It is designed for real-time control of industrial machinery, process automation systems, and material handling applications.

Key Features

• 1.1 GHz Intel Atom Processor for fast control and data processing.
• 10 MB User Memory and 10 MB non-volatile Flash Memory.
• Battery-less memory retention with support for an optional Energy Pack.
• Embedded 10/100 Mbps Ethernet port for programming and communications.
• Integrated RS-232 and RS-485 serial communication ports.
• Supports Ladder Logic, Structured Text, Function Block Diagram, and C programming.
• Compatible with most RX3i I/O modules and many legacy Series 90-30 modules.

Technical Specifications

Communication Protocols

The IC695CPE310-ABAB supports multiple industrial communication protocols, including:

• SRTP
• Modbus TCP/IP
• Modbus RTU Master/Slave
• SNP/SNPX
• Serial I/O
• Ethernet Global Data (EGD)
• OPC UA (firmware-dependent)

Typical Applications

• Power generation and distribution
• Oil & gas facilities
• Water and wastewater treatment
• Manufacturing automation
• Material handling systems
• Process control and monitoring systems

Advantages

• High-speed processing performance.
• Large memory capacity for complex applications.
• Seamless integration with RX3i and many legacy GE systems.
• Flexible communication options for modern industrial networks.
• Reliable operation in demanding industrial environments.

The IC695CPE310-ABAB is commonly used as a replacement or upgrade for older RX3i CPUs, providing improved processing power, enhanced networking capabilities, and long-term support within Emerson's PACSystems platform.
