ABB 3BHB003387R0101 5SXE 05-0151 5SHX 08F4502

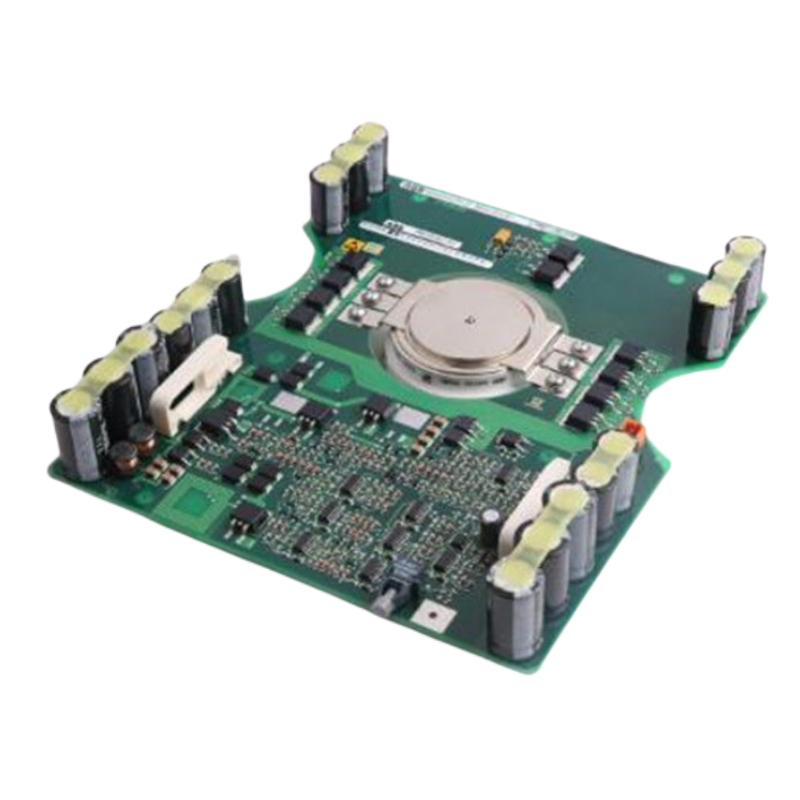

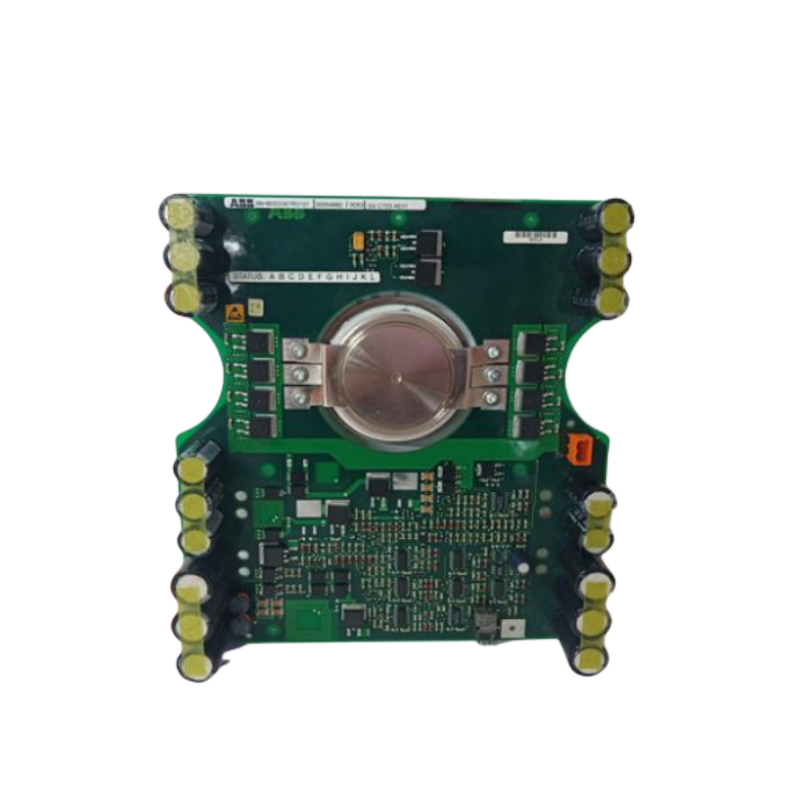

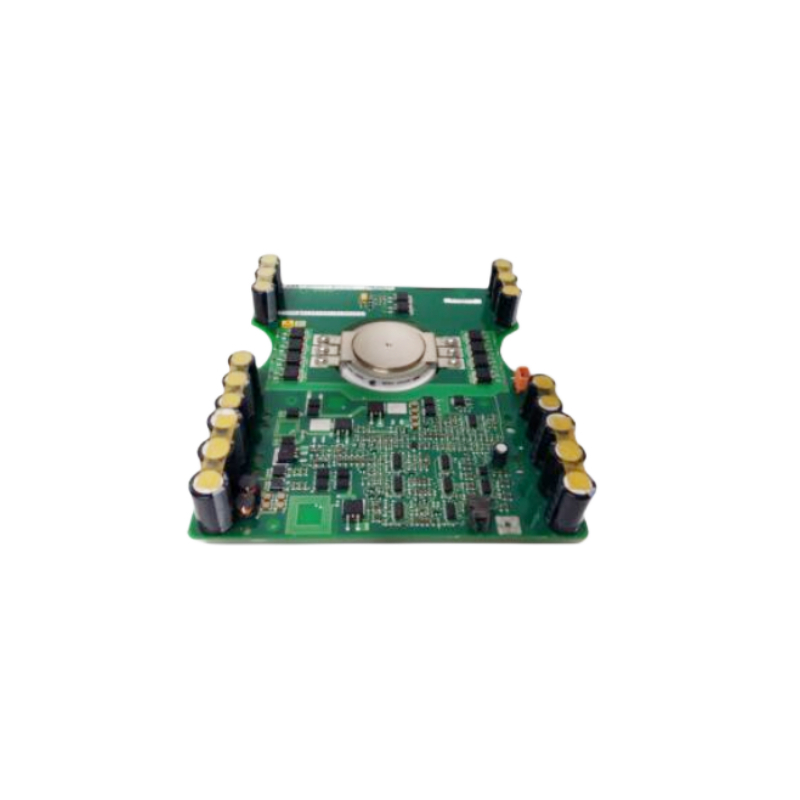

ABB 3BHB003387R0101 is an IGCT (Integrated Gate Commutated Thyristor) module / gate unit assembly used in ABB high-power converter and industrial drive systems. The module is associated with ABB part numbers 5SXE 05-0151 and 5SHX 08F4502.
Product Information
- Manufacturer: ABB
- Part Number: 3BHB003387R0101
- Alternative Numbers: 5SXE 05-0151, 5SHX 08F4502
- Product Type: IGCT Power Semiconductor Module
- Technology: Integrated Gate Commutated Thyristor (IGCT)
- Application: High-power converters, medium-voltage drives, industrial power electronics systems
Technical Description
The ABB 5SHX 08F4502 IGCT is a high-performance power semiconductor device designed for fast switching and efficient control of high electrical power. It combines the advantages of a thyristor and transistor, providing high current capability, low switching losses, and reliable operation in demanding industrial environments.
Typical characteristics include:
- High-voltage switching capability
- High current handling capacity
- Fast turn-on and turn-off performance
- Low power losses during operation
- High reliability for continuous industrial service
- Designed for integration into ABB converter platforms
Typical Technical Parameters (5SHX 08F4502)
- Device Type: Asymmetric IGCT (Press-Pack type)
- Blocking Voltage: Approximately 4500 V
- Current Rating: High-current power switching device
- Maximum Junction Temperature: Up to approximately 125 °C
- Cooling Method: Press-pack mounting with external heat sink system
- Gate Control: Fiber-optic controlled gate drive interface (for associated gate unit)
Applications
ABB 3BHB003387R0101 / 5SHX 08F4502 is commonly applied in:
- Medium Voltage AC drives
- Large motor control systems
- Power converters
- Renewable energy conversion systems
- Industrial power supplies
- Mining, metallurgy, marine, and energy industries
- ABB ACS series and high-power converter equipment
Key Advantages
- High efficiency: Reduces switching losses in high-power applications.
- High reliability: Designed for harsh industrial operating conditions.
- Excellent thermal performance: Press-pack construction supports effective heat transfer.
- Long service life: Suitable for continuous-duty power conversion systems.
- Easy replacement: Compatible with ABB converter maintenance programs.
Conclusion
The ABB 3BHB003387R0101 (5SXE 05-0151 / 5SHX 08F4502) is a critical high-power IGCT module component used in ABB medium-voltage and industrial converter systems. It provides reliable high-speed switching and efficient power management, making it suitable for demanding applications requiring high voltage, high current, and long-term operational stability.
