ABB DO630

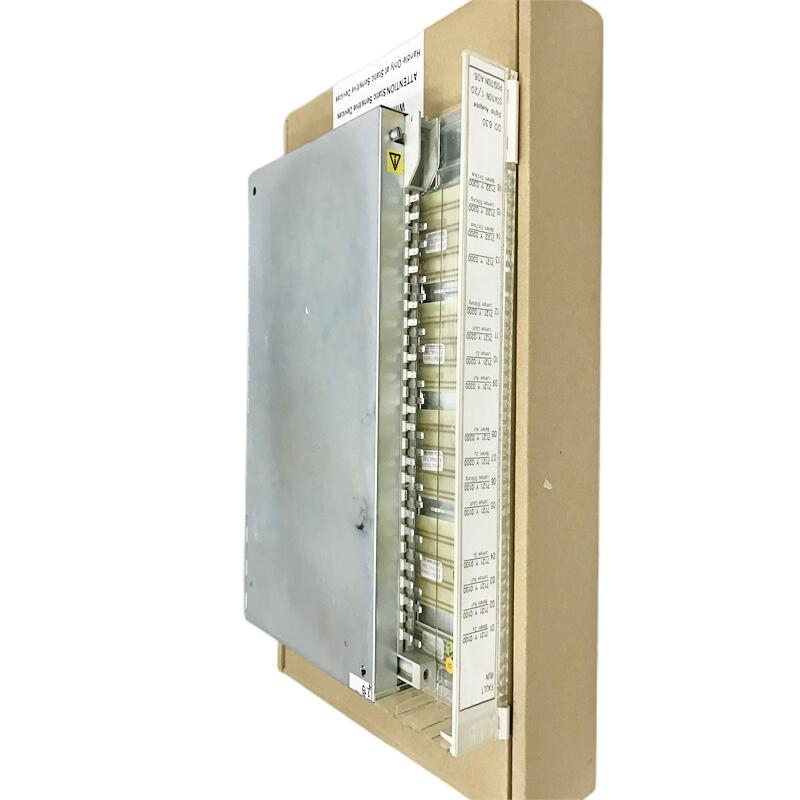

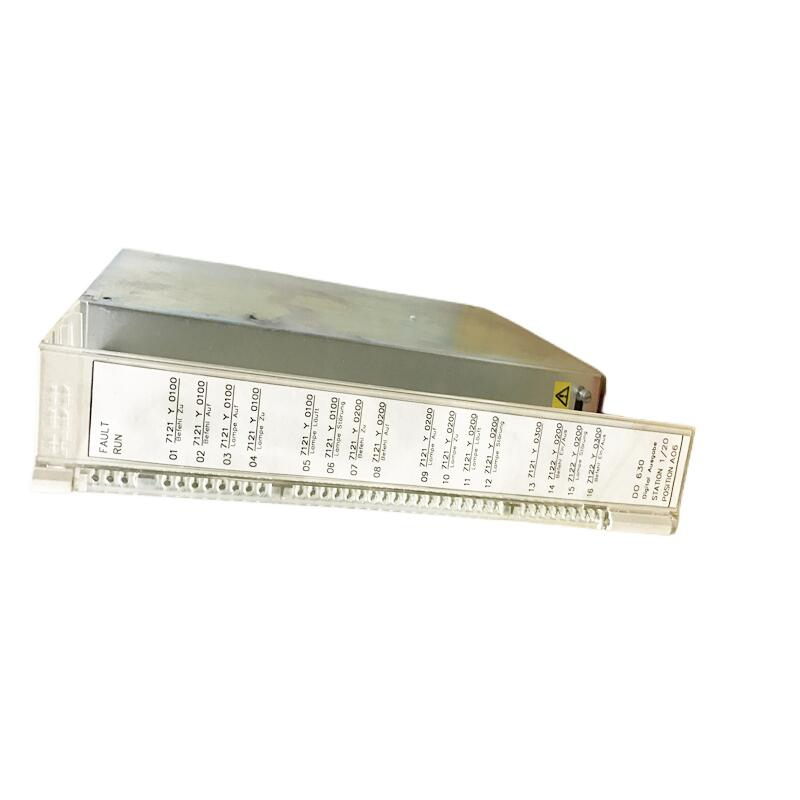

ABB DO630 (Product ID: 3BHT300007R1) is a high-reliability digital output module used in ABB Advant OCS and S600 I/O automation systems. It is designed to provide dependable switching and control of field devices such as relays, contactors, solenoid valves, alarms, and other discrete loads in industrial environments.

Product Overview

The DO630 is a 16-channel isolated digital output module that supports AC load switching up to 250 VAC. Its isolated output groups help improve system reliability and reduce electrical interference, making it suitable for critical process control applications. The module is commonly deployed in power generation, oil & gas, chemical processing, manufacturing, and other industrial automation sectors.

Key Technical Specifications

Parameter	Specification
Model	DO630
Product ID	3BHT300007R1
Module Type	Digital Output Module
Output Channels	16
Output Type	Digital Output (DO)
Load Voltage	Up to 250 VAC
Isolation	Isolated outputs, 16 groups
Dimensions	252 × 273 × 40 mm
Weight	1.32 kg
Country of Origin	Sweden
Application Family	ABB Advant Controller 110/160, S600 I/O



Main Features

• 16 independent digital output channels.
• High-voltage switching capability up to 250 VAC.
• Electrical isolation for improved noise immunity and system protection.
• Rugged industrial design for demanding environments.
• Easy integration with ABB distributed control and automation systems.
• Suitable for continuous operation in mission-critical applications.

Typical Applications

• Power plant control systems
• Oil and gas production facilities
• Chemical and petrochemical plants
• Manufacturing automation lines
• Water and wastewater treatment systems
• Process control and monitoring applications
• Industrial signaling and interlocking systems



Conclusion

The ABB DO630 (3BHT300007R1) is a robust 16-channel isolated digital output module designed for industrial control systems requiring reliable AC output switching. Its combination of high-voltage capability, channel isolation, and compatibility with ABB Advant and S600 I/O platforms makes it a trusted choice for critical automation applications across multiple industries.
