B&R 8BVI0110HWD0.000-1 inverter module

The 8BVI0110HWD0.000-1 is a two-axis ACOPOSmulti inverter module designed for modular servo drive systems in demanding automation environments such as robotics, packaging, CNC, and semiconductor machinery.

Get Instant Quote
Product Details

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

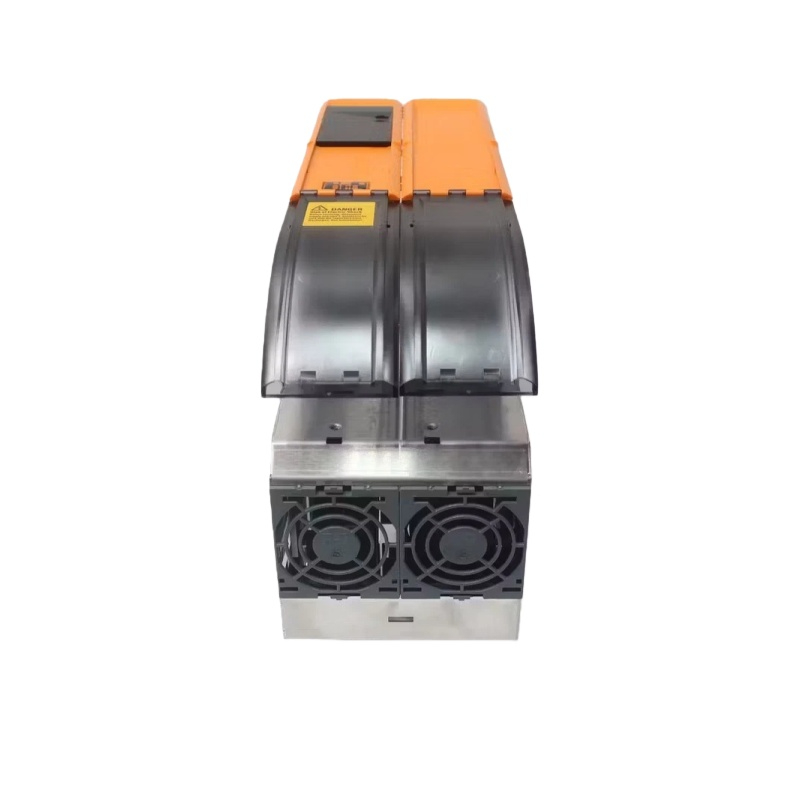

B&R 8BVI0110HWD0.000-1

The 8BVI0110HWD0.000-1 is a two-axis ACOPOSmulti inverter module designed for modular servo drive systems in demanding automation environments such as robotics, packaging, CNC, and semiconductor machinery. It delivers high power density, flexible configuration, and reliable operation within the B&R ACOPOSmulti platform.

Key Features

  • Two-axis inverter module for ACOPOSmulti drive system
  • 15.1 A output current
  • Designed for high-voltage DC bus operation
  • Wall-mount / backplane installation
  • Supports Dynamic Node Allocation (DNA)
  • Built-in functional safety support
  • Certified for CE, UL, UKCA and KC standards

This module enables compact multi-axis motion control with high efficiency and reduced cabinet space.

Technical Specifications

Power & Electrical

  • Nominal DC bus voltage: 750 VDC
  • Continuous power consumption: 22.3 kW
  • DC bus capacitance: 660 µF
  • 24 V supply input: 25 VDC ±1.6%
  • Max 24 V power consumption: 20 W + slot loads

Mechanical

  • Dimensions: 330 × 240 × 110 mm
  • Weight: ≈ 5.35 kg
  • Cooling/mounting: Backplane / wall mounting

Outputs

  • Two 24 VDC outputs with electronic protection
  • Designed for multi-axis servo control

Typical Applications

The module is widely used in:

  • Packaging and converting machinery
  • Robotics and pick-and-place systems
  • Semiconductor and electronics manufacturing
  • Printing and high-speed production lines
  • CNC and precision automation

Its modular design makes it ideal for scalable multi-axis drive architectures.

Benefits

  • High power density in compact footprint
  • Flexible integration in ACOPOSmulti systems
  • Reduced wiring and cabinet space
  • Reliable operation with industrial certifications
  • Easy replacement, repair, and system expansion

Summary

The B&R 8BVI0110HWD0.000-1 ACOPOSmulti inverter module is a high-performance 15.1 A two-axis servo drive designed for modern modular automation systems. With high voltage capability, safety support, and compact design, it is a dependable choice for demanding industrial motion applications.
