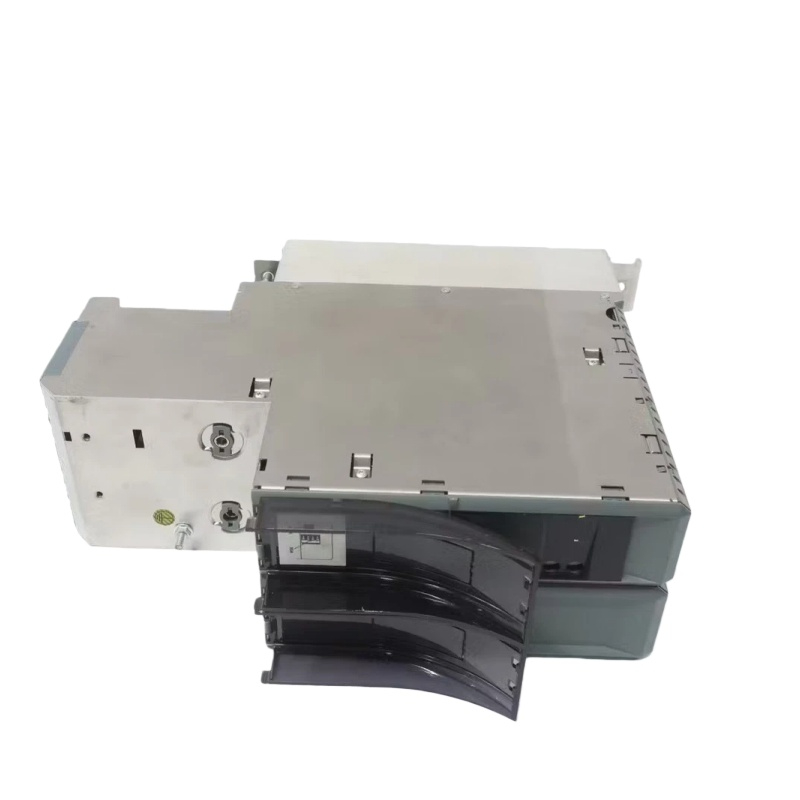

B&R 8BVP0440HW00.000-1

Model: 8BVP0440HW00.000-1
Series: ACOPOSmulti Power Supply Modules
Manufacturer: B&R Industrial Automation

The 8BVP0440HW00.000-1 is a high-performance regenerative power supply module designed for B&R ACOPOSmulti servo drive systems. It supplies DC bus power to multiple servo drives and can feed braking energy back into the grid, improving energy efficiency in industrial automation systems.

---

Key Features

• Regenerative energy capability (returns braking energy to mains)
• Wide 3-phase input voltage range
• Wall-mounted ACOPOSmulti power supply
• 2 slots for plug-in modules
• Integrated temperature sensor connection
• Designed for high-power multi-axis servo systems

---

Main Technical Specifications

Electrical

• Input voltage: 3 × 220–480 VAC ±10%
• Frequency: 50/60 Hz ±4%
• Rated current: 44 A
• Max installed power: 31.1 kW
• Power factor correction: Yes
• Regeneration capability: Yes

Mechanical

• Mounting: Wall mounting
• Dimensions:
  • Width: 106.5 mm
  • Height: 317 mm
  • Depth: 263 mm
• Weight: ~5.5 kg

Environmental

• Operating temperature: 5–40 °C
• Max operating temp: 55 °C
• Transport temperature: −25–70 °C

---

System Integration

This module provides:

• DC bus power for ACOPOSmulti servo drives
• Connection slots for additional plug-in modules
• Compatibility with TT / TN-S / TN-C-S mains networks

Typical configuration in machine architecture:

Mains → 8BVP power supply → DC bus → Servo drives → Motors

---

Typical Applications

Used in high-power multi-axis automation systems, including:

• CNC machinery
• Packaging lines
• Robotics
• Semiconductor equipment
• Printing and converting machines
